Specifications
Product Description

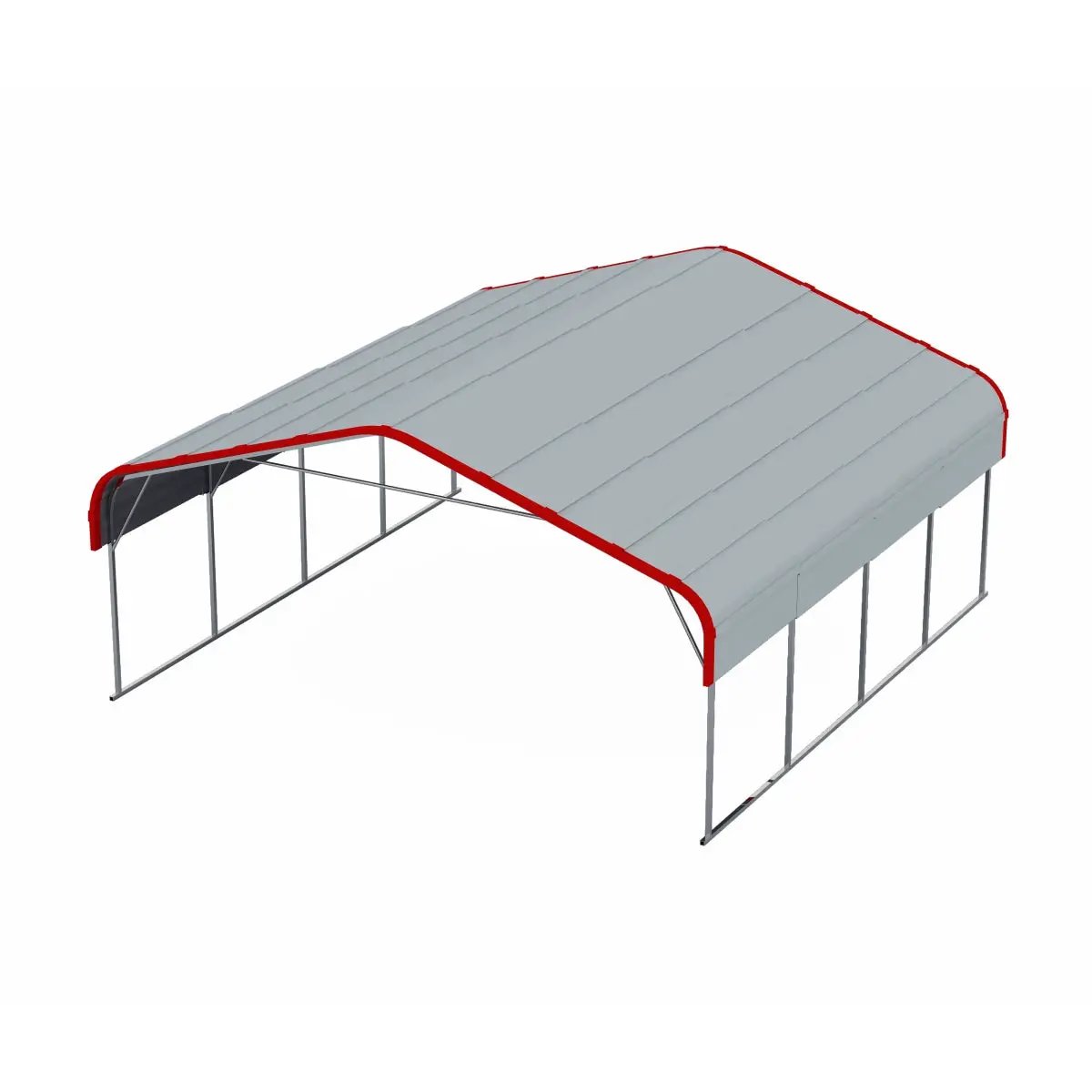

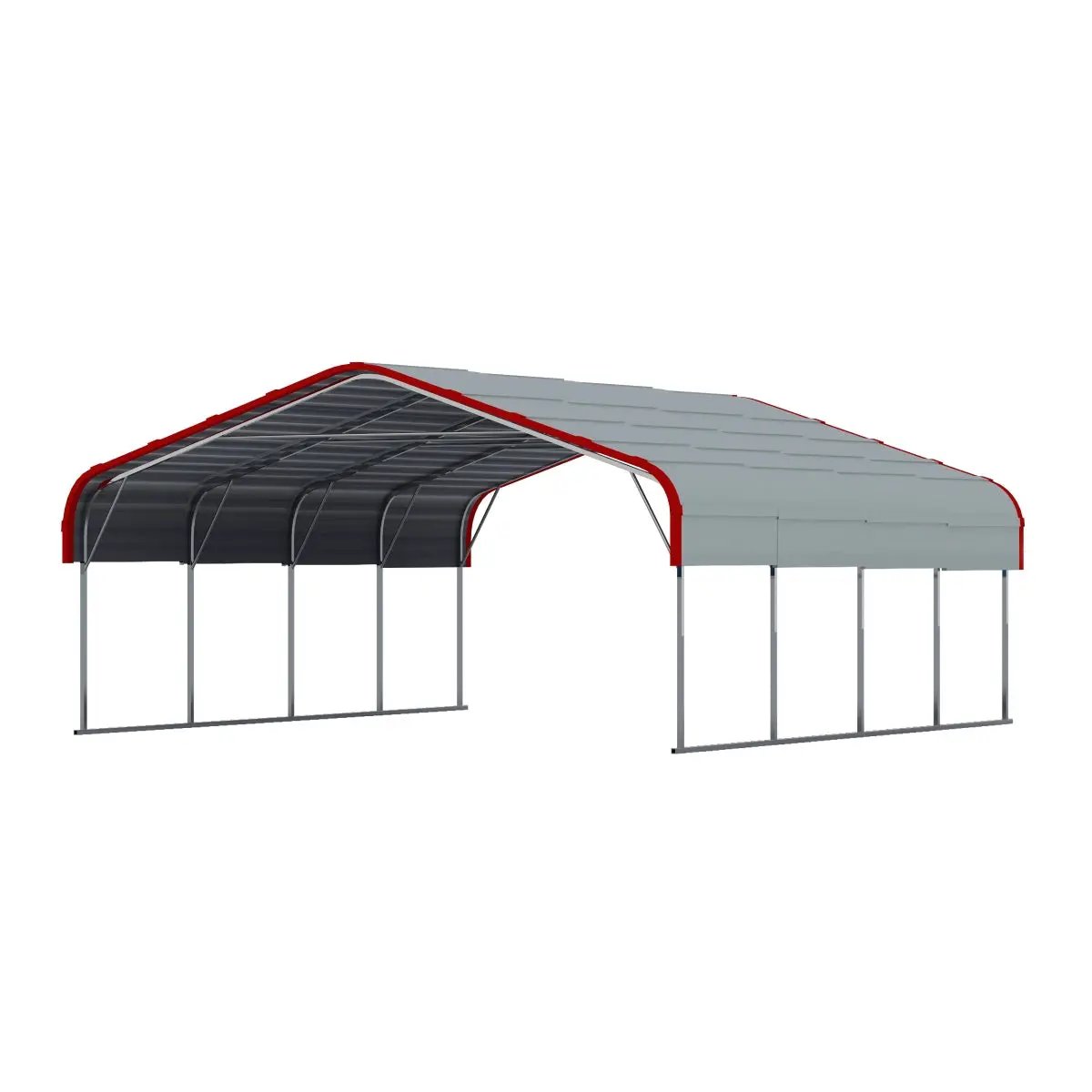

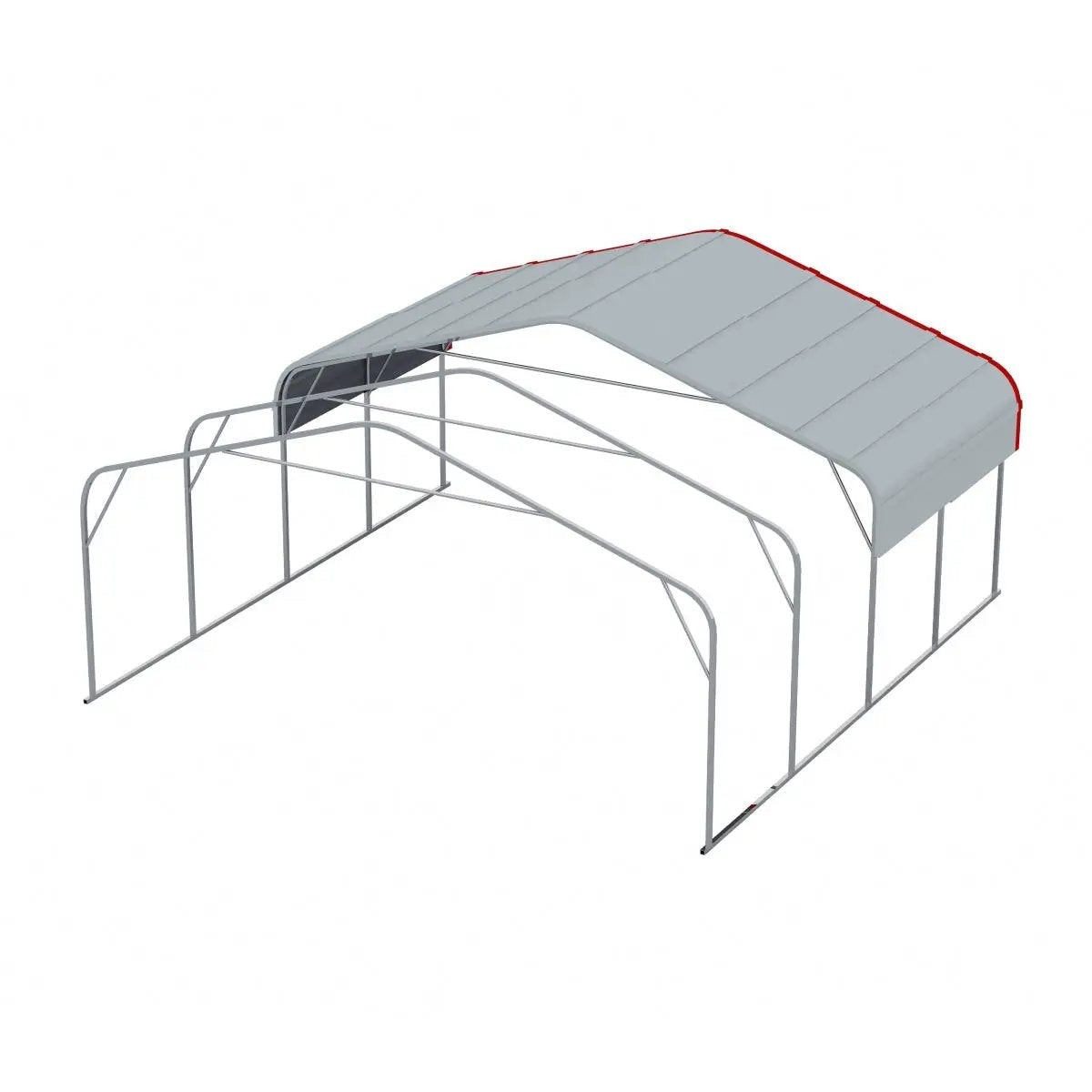

Introducing the 20x20 ft Heavy Duty Metal Garage Carport with a robust 5ft truss spacing. Engineered for superior strength, it features 40x60x1.5mm galvanized square tube arches, ensuring exceptional durability and weather resistance for your vehicles and equipment.
Steel Carport W20'xL20' User Manual

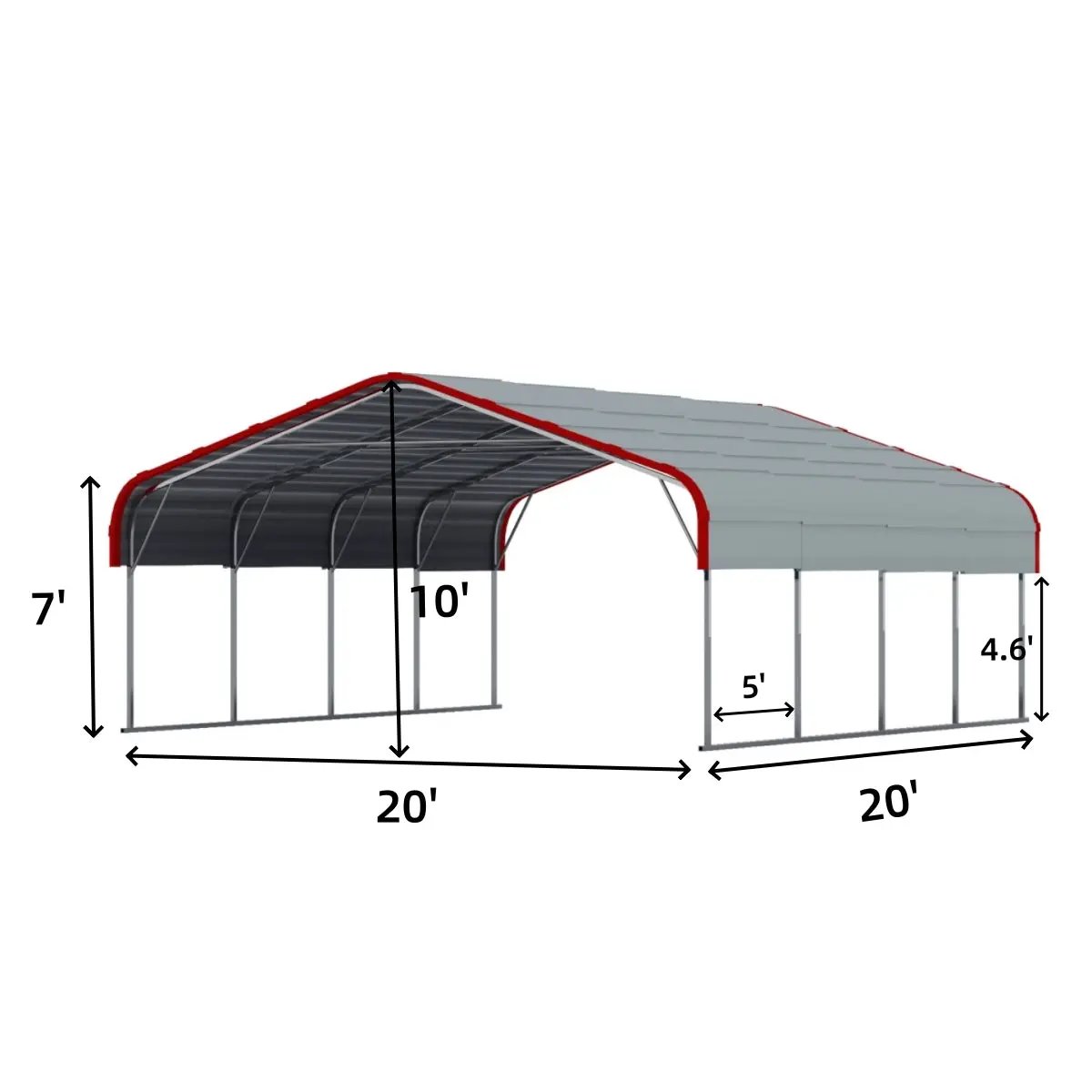

Specification
| Dimensions (WxLxH) | 20'x20'x10' |
| Frame | Galvanized Square Tube |
| Arch | 40x60x1.5mm |
| Ridge Height | 10 ft |
| Eave Height | 7 ft |
| Truss Spacing | 5 ft |
| Roof & Wall | Steel Sandwich Panel or Corrugated Color Steel Sheet |
| Wind Load | 0.23 KN/㎡ |
| Snow Load | 0.1 KN/㎡ |
Feature
- Hot-dip galvanized steel structure, no fade anti-aging restless
- Low cost and free maintenance, save your time
- Fast assembly and easy installation, convenient fitting replacements
- Art designs, nice appearance, and long lifespan: up to 15 years
- Protect your car from snow and rain
- Protect your car from spontaneous combustion and the release of toxic gases caused by high-temperature in summer
- Protect your car from damage caused by falling objects
- Installation: Easy to install, installation manual will be provided
- Waterproof, Fire retardant, UV-resistant
Package Size
- LxWxH (inch): 86.6x43.5x11.8
- Weight (lb): 948
- A forklift or equivalent is required for unloading.
