Arcade S8BP Diesel Heater, 8kW Dual Voltage, 4 Gal Large Tank

• Quick & Powerful Heating: Heats up in minutes with fast-ignition glow plug even at -40 °F; 8 kW max output increases the cabin/room temperature to 46.4-96.7 °F, preheats engines and facilitates cabin de-icing and windshield defogging in frigid environments

• High Fuel Efficiency: Pulse fuel pump precisely meters delivery for improved efficiency; low consumption range of 0.16–0.4 L/h extends running time; single refuel provides 37.5–93.75 hours of warmth; ensures multiple nights of uninterrupted heat

• Broad Compatibility: Spacious 4-gallon (15L) fuel tank, 50% larger than standard 10 L models for fewer refills; compact body fits easily in tight spaces; compatible with 12/24V DC systems for trucks, RVs, trailers, buses, construction vehicles, SUVs, and boats

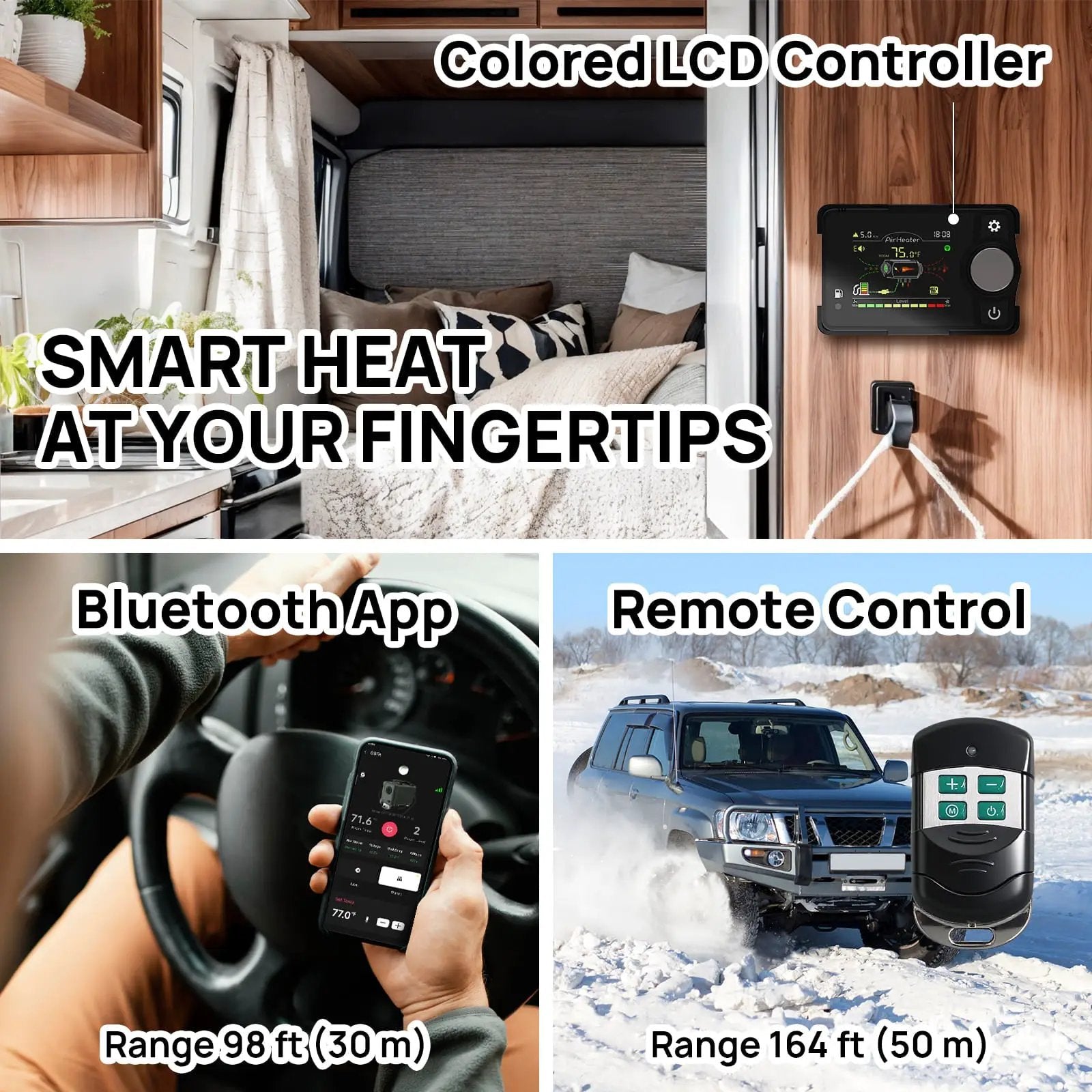

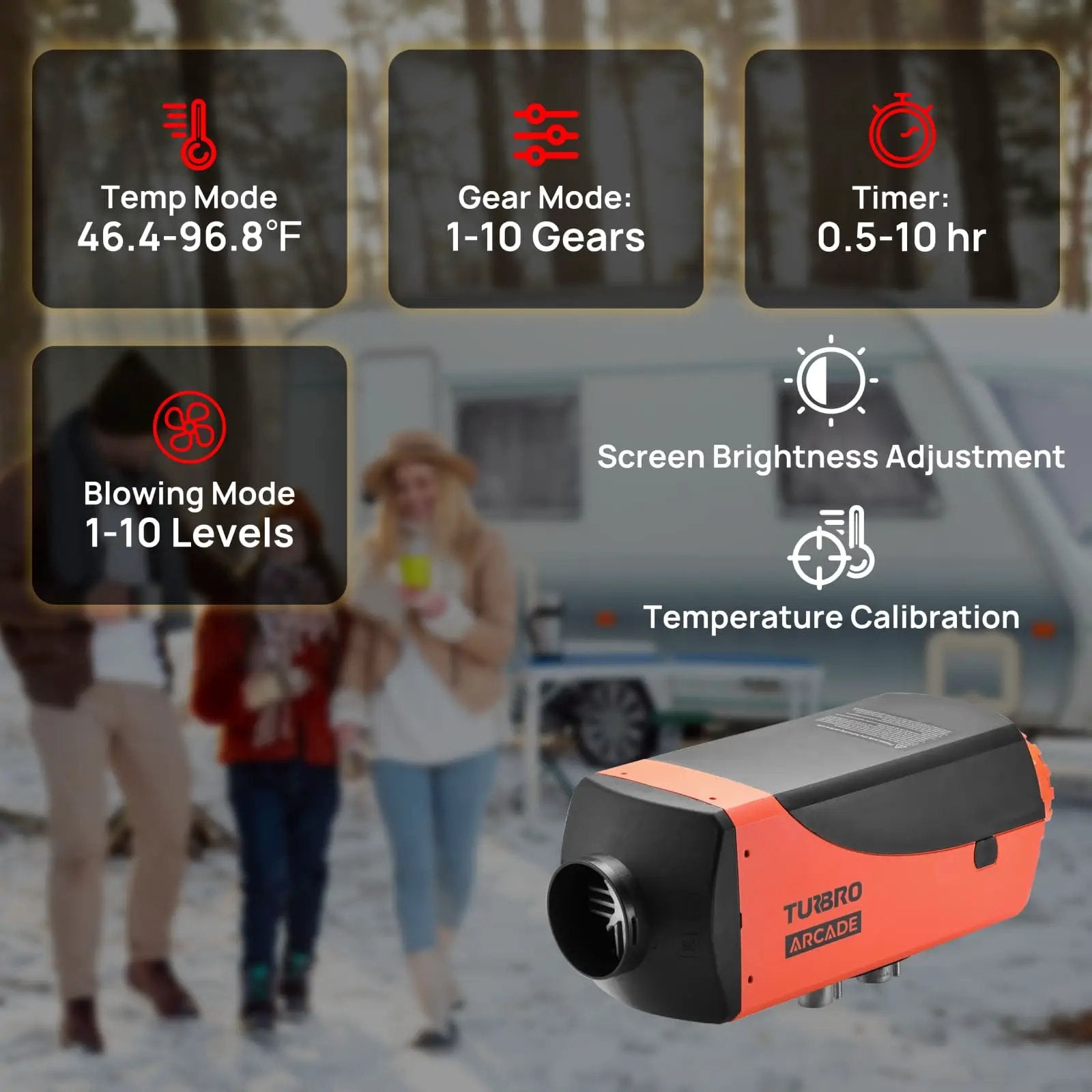

• Smart & Versatile Operation: Controlled by a colored smart LCD, remote, and Bluetooth APP; temperature mode auto-adjusts power to maintain setpoint while saving energy; 10-level manual gear mode for steady heat output; multiple programmed timer settings

• Confident in Any Condition: Conquers high altitudes up to 16,404 ft (5,000 m) without losing power; advanced protection system detects abnormalities such as overheating and sensor failure and displays specific error codes, empowering you to take timely action

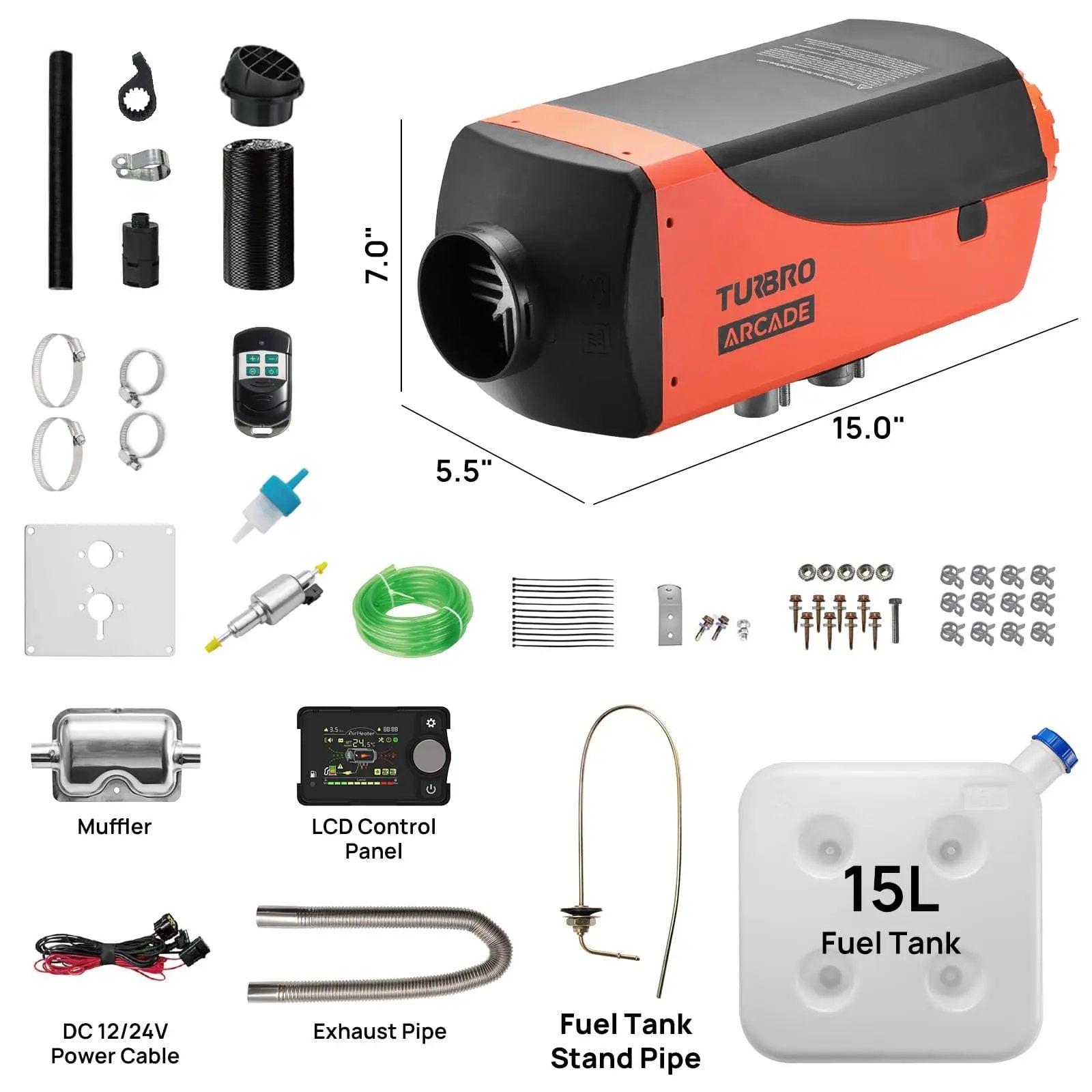

• Saves Time and Effort: Comes with all essential accessories; allows DIY installation; exhaust must vent outside, and do not approach it before it completely cools down; never disconnect the power immediately after turning off the controller


FAQ

Q: Can I use fuels other than diesel?

A: No! Please use diesel only, and high-quality diesel is advised. When transferring fuel from another container, avoid pouring any sediment from the bottom. Regularly check and clean any accumulated residue in the fuel tank.

​Q: Can I use an extension cord if the heater is far from my battery?​​

​​A:​​ It’s not recommended to use an extension cord for DC power. If necessary, use a wire rated at 18 AWG (1.024 mm diameter, approx. 0.823 mm² cross-section) or thicker, and ensure all connections are secure. Although the rated current is 3A, the startup current can reach 10–12A.

Q: Can I use this heater indoors?​

A: Yes. And the exhaust must be directed outdoors. Never run the heater in an enclosed space without proper ventilation, as the exhaust contains harmful gases.

Q: Can it be powered by a car cigarette lighter or a CB radio auxiliary outlet?​​

​​A:​​ No. These outlets often supply enough voltage but insufficient current, which can prevent ignition. The starting current can be as high as 12A.

The heater requires 130 watts at 12 or 24 volts during start-up. The main power connection has to be made at a circuit designed to sustain this load without a voltage drop. Cigar lighter sockets and auxiliary power outputs for C.B. radio's and other electronic accessories are not considered adequate power supplies for the heater.

​Q: Can I use an AC to DC switching power supply?​​

​​A:​​ Yes, if it provides a stable 12V/24V DC output and can deliver at least 12A of current​​. We recommend using high-quality, well-known brands to avoid startup failure due to inaccurate ratings or control board damage due to unstable current.

Q: Can fuel be drawn directly from a vehicle or boat’s fuel tank?​

A:​​ Yes, but modifications (such as drilling a hole) must be done. A 13-foot fuel hose is included for connecting the unit to the tank. Please verify this length meets your needs before purchase. When drilling into the tank, avoid making the hole too large, as it may break the seal and prevent proper fuel pumping, leading to startup failure.

​​Q: Can I control multiple diesel heaters with one phone or remote?​​

​​A:​​ No. To prevent operational errors and ensure a stable connection, each remote is uniquely paired with a single heater (specifically the one included in the same package). Similarly, one phone can only connect to and control one unit at a time.

​​Q: What is the maximum control distance?​​

​​A:​​ The Bluetooth app control range is up to 98 ft (30 m), while the remote control operates at a longer range of up to 164 ft (50 m).

Q: Why does white smoke and a diesel odor appear during the first use?​​

​​A:​​ This is normal. During initial startup, the combustion chamber temperature is low, which may cause incomplete fuel combustion. These effects will disappear as the system continues running and the temperature rises.

​​Q: Why should the fuel pump be installed at an angle?​​

​​A:​​ An angled installation facilitates the release of air from the fuel, preventing airlocks that could disrupt pump operation. It is recommended to tilt the pump at a 15-20 degree angle (with the end closer to the heater facing up). This helps to reduce the risk.

​​Q: Why are there air bubbles in the fuel pipe?​​

​​A:​​ This may be caused by an air leak at a connection point. Check all connections for tightness and reseal if necessary to ensure system integrity.

Q: Can the air intake and exhaust pipes be bent?​​

​​A:​​ To maintain smooth airflow, avoid bending the pipes whenever possible, especially into sharp S- or Z-shaped curves. Restricting airflow can lead to carbon buildup, which directly reduces heating efficiency. If carbon accumulates, internal cleaning will be required.

Q: Why do I feel like the displayed temperature is inaccurate?

A: The room temperature shown on the LCD controller reflects the temperature detected by the controller's internal sensor, which may differ from your perceived temperature. The controller also features a temperature calibration function. Enter the basic settings interface and adjust it.

Q: Why does the unit still make noise after being turned off? Should I disconnect the power?​​

​​A:​​ This is normal. After a shutdown or a fault code appears, the fan continues running to expel exhaust and dissipate heat. DO NOT disconnect the power during this time, as it may cause overheating and damage internal components. Additionally, exhaust gases (manifesting as white smoke) may be expelled through the intake pipe, potentially burning the hose. Always wait until the fan has completely finished cooling (as indicated by the sound ceasing entirely) before disconnecting the power supply!

Q: Why does the app interface look different from the manual?​​

​​A:​​ We continuously optimize the app to improve user experience. If you have questions about its operation, please feel free to contact our support team.

​​Q: What should I do before storing the heater?​​

​​A:​​ If the heater won’t be used for an extended period, drain all fuel from the tank and run the unit until the fuel lines are empty before storage.
