Product Description
Features:

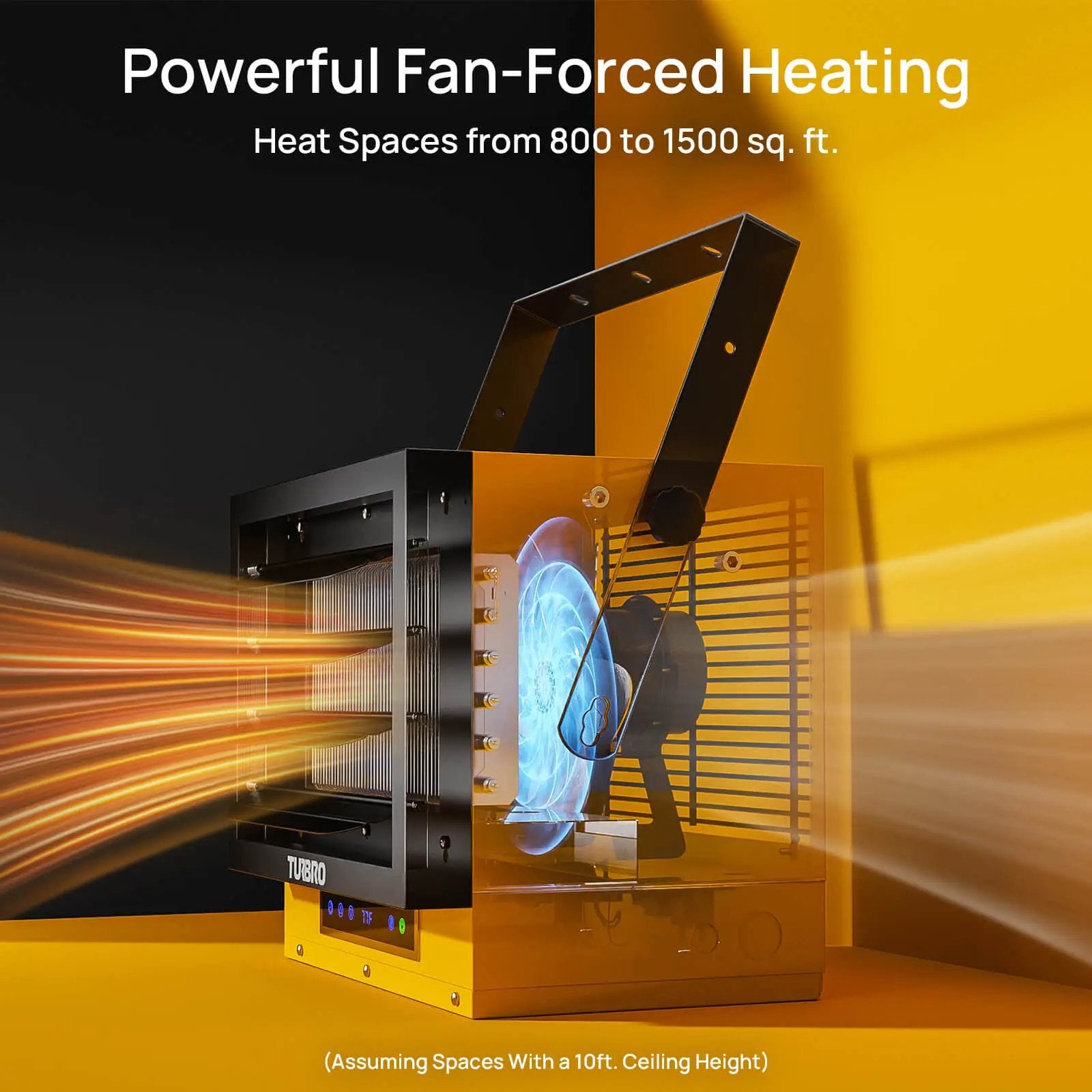

- 🔥 Customizable Heating Modes: With the choice of 5,000W or 7,500W power settings and an impressive 25,589 BTU output, you can quickly heat 800-1,500 square feet in no time. The integrated blower fan speeds up heat distribution for a faster increase in room temperature.

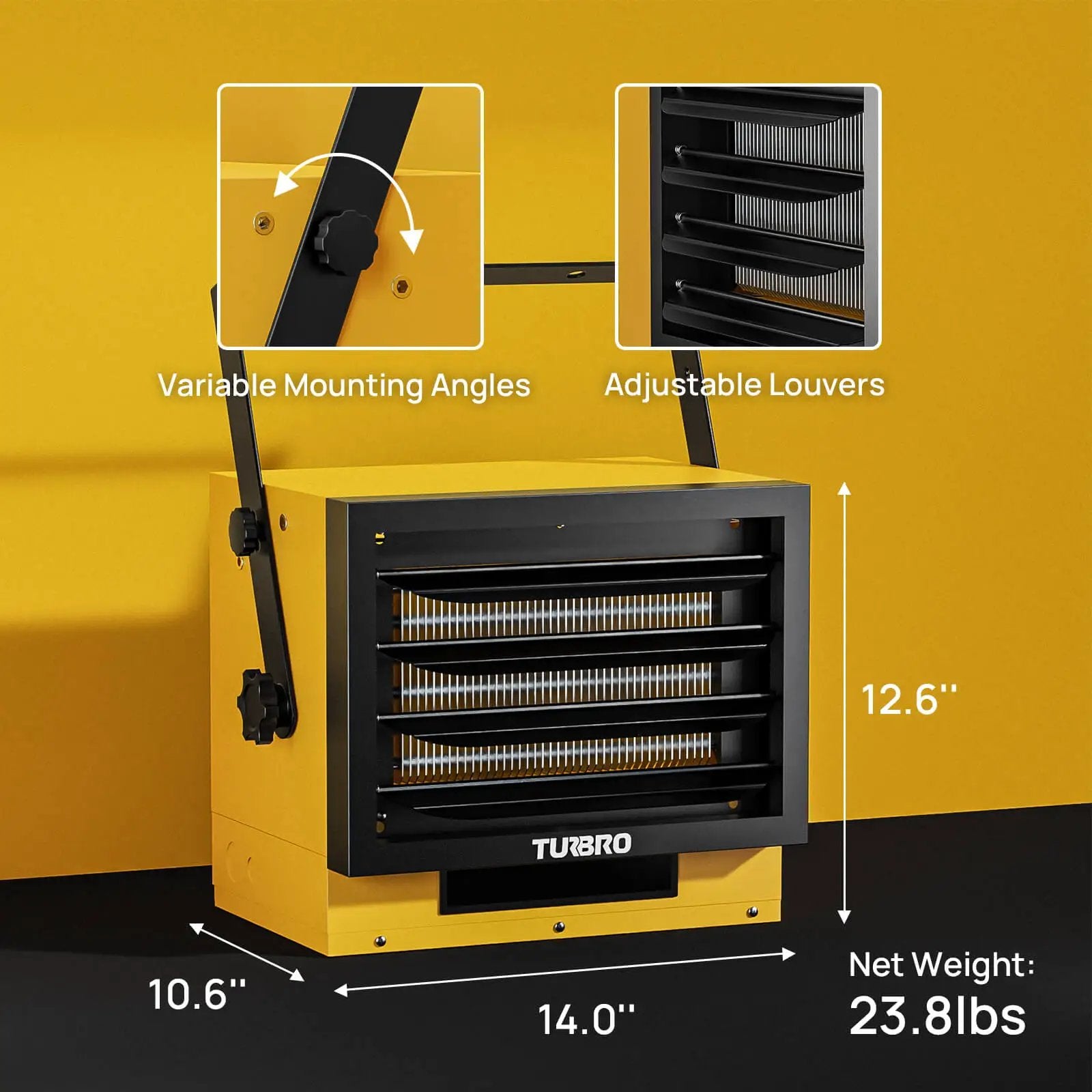

- 🔥 Precision Airflow Management: Take control of the heated air's direction through adjustable louvers and adaptable mounting angles. This personalized and customizable approach empowers you to focus on specific areas to increase warmth quickly and efficiently.

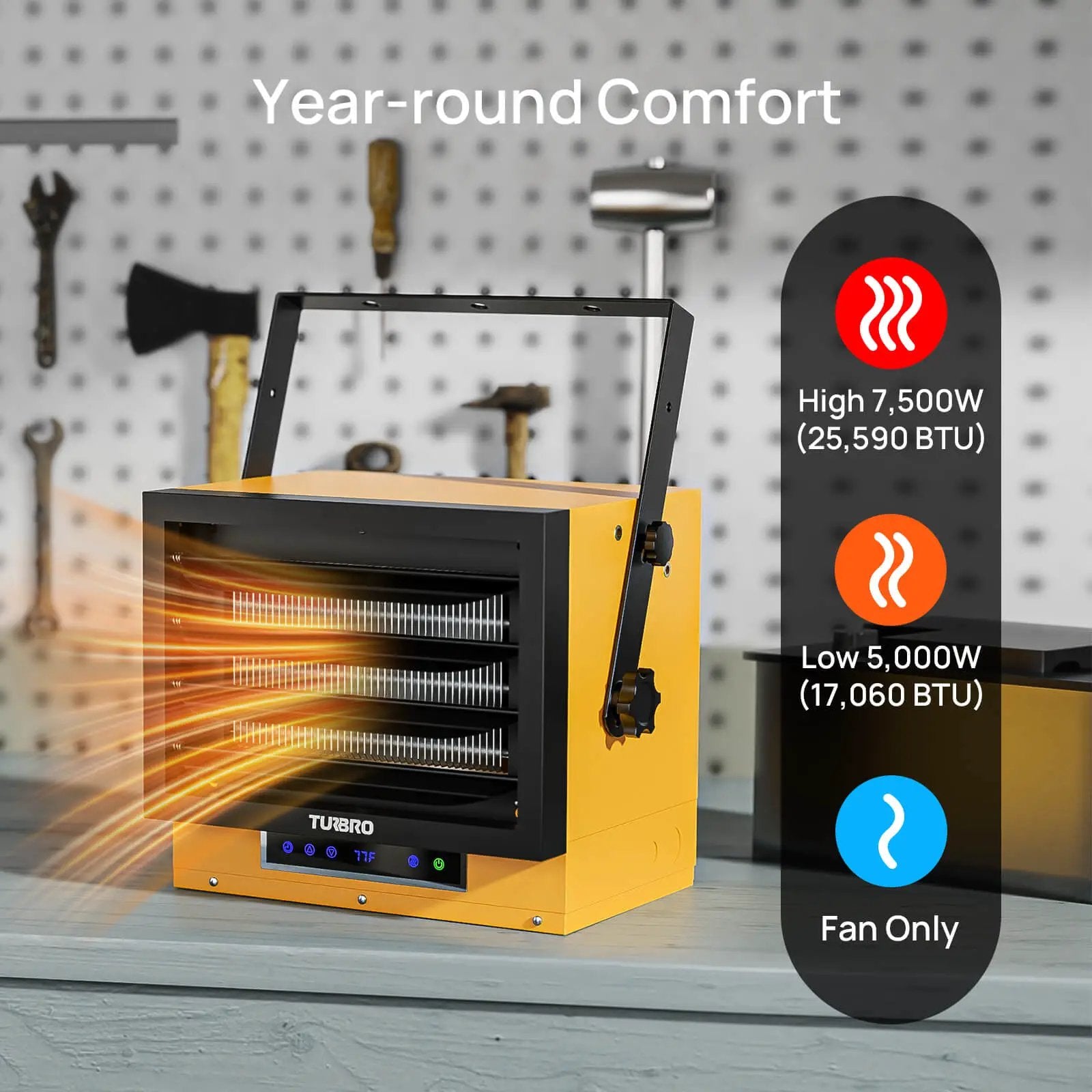

- 🔥 Seamless Seasonal Transitions: Embrace the flexibility of our heater's dual functionality. Stay comfortable all year long with its heating and fan modes. Combat the chill during winter months and create a comfortable atmosphere with optimal ventilation and air circulation during warmer seasons with the fan mode.

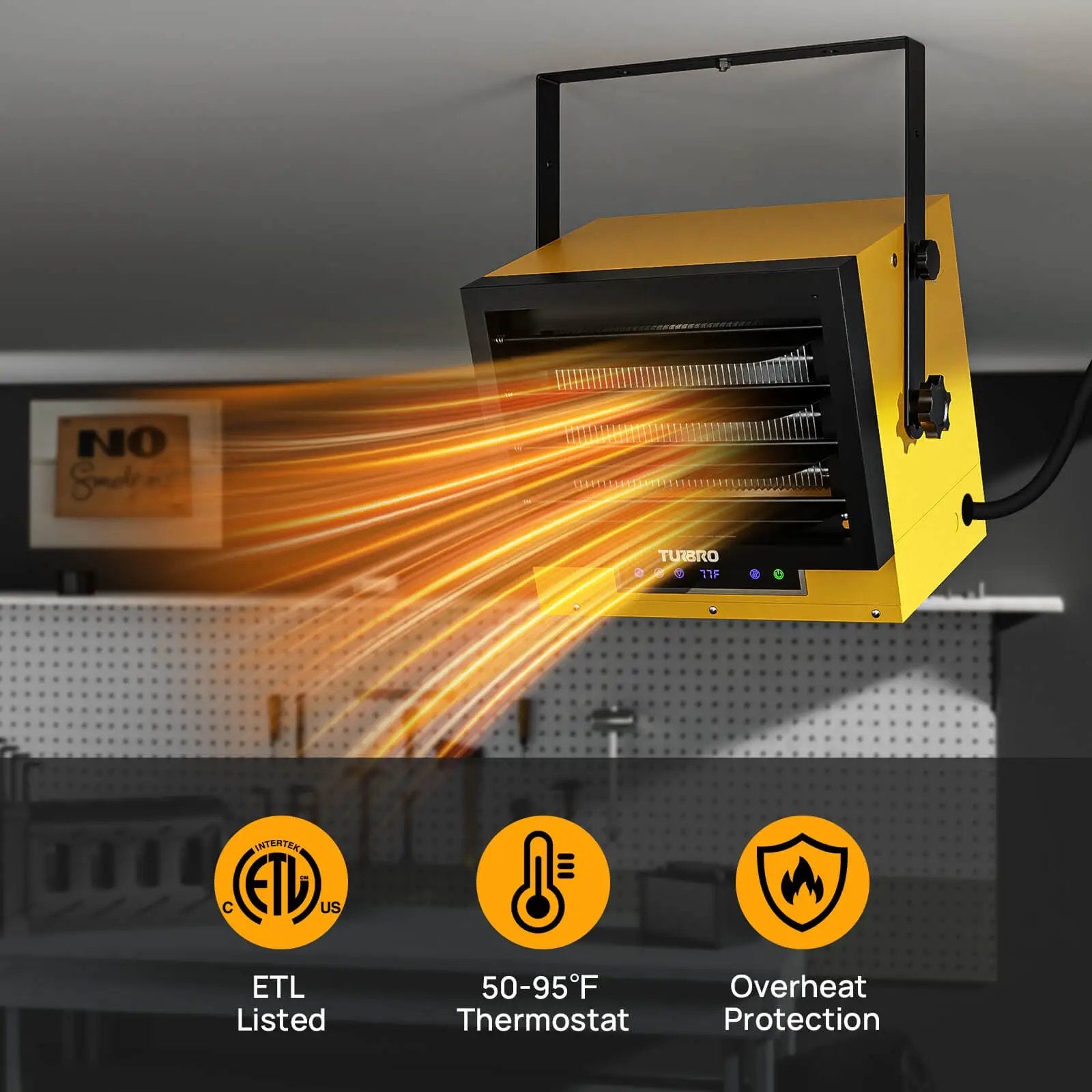

- 🔥 Safety as Standard: Rest easy with ETL certification that certifies our heater's safety standards. The integrated thermostat ensures that energy consumption remains controlled while maintaining your preferred temperature. For your protection during extended use, the heater incorporates an auto shut-off feature to prevent overheating.

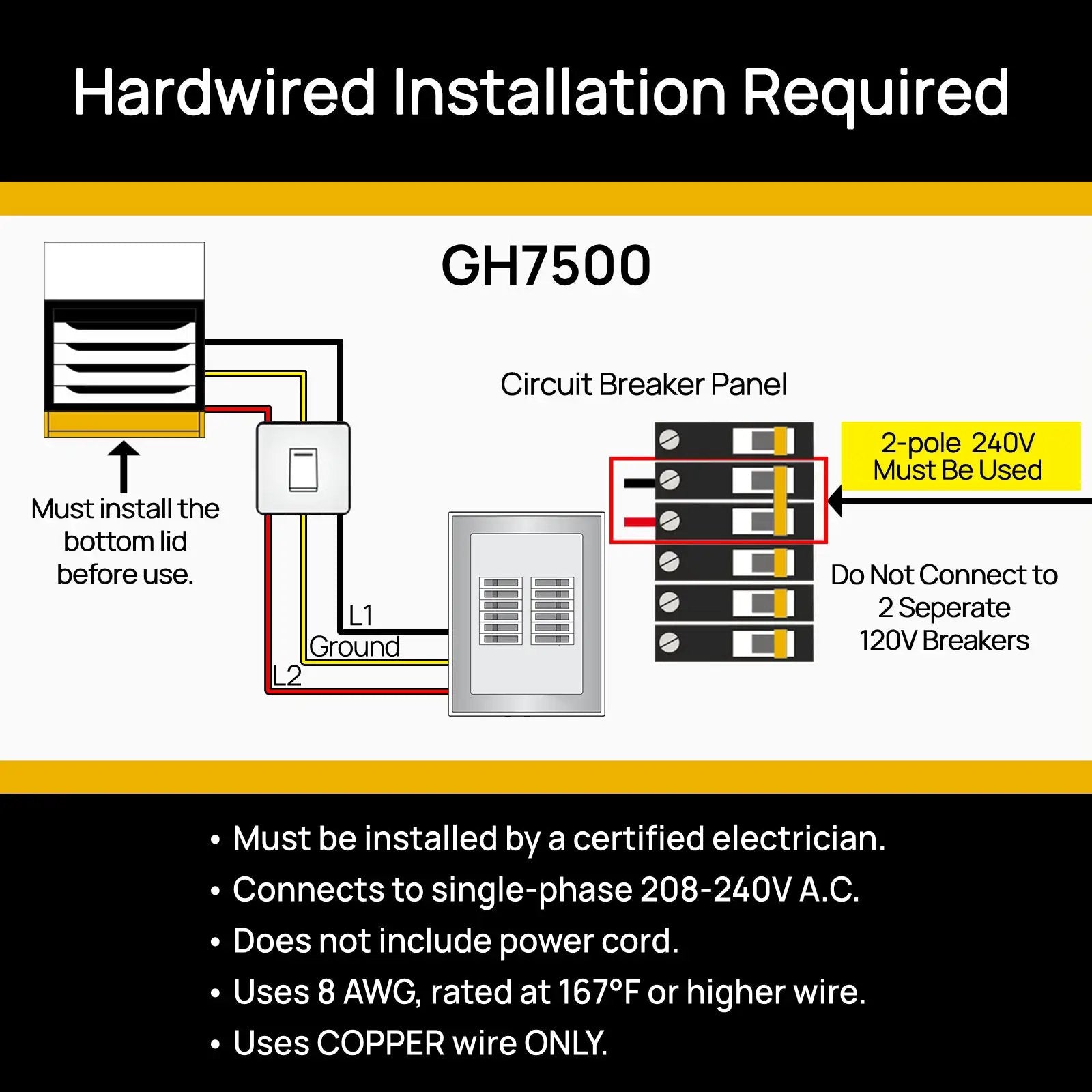

- 🔥 Professional Installation Excellence: To harness the full potential of this heater, a professional touch is essential. You may need to hire a certified electrician to set up a seamless hardwired connection to a single-phase 240V AC power supply. Adherence to national and local electric codes within the United States is vital. Note: This package does not include a power cord.
- ⚠️ Note: This package does not include a power cord. The minimum wire size required for this heater is 8 AWG, rated at 167°F (75°C) or higher. And please use COPPER wire ONLY.
Q & A
Q1: What should I know about power connection?
A1: This heater DOES NOT come with a power cord. Please review all our product descriptions and specifications and make sure you understand how to connect this heater to power BEFORE ordering.
Q2: What kind of wire should be used for this heater?
A2: The minimum wire size required for this heater is 8 AWG, rated at 167°F (75°C) or higher. And please use COPPER wire ONLY.
Q3: What are the installation requirements? Can I install it by myself?
A3: This heater requires hardwire installation (NO plug). All wiring must be carried out by a Certified Electrician and must be in accordance with national and local electric codes in the United States. Please carefully review our user manual and corresponding codes BEFORE installation.
 |
 |
|
|
|
7,500 W Heater |
10,000 W Heater |
15,000 W Heater |
|
|
Model |
GH7500 |
GH10K Smart |
GH15K Smart |
|
Power Supply |
AC 240 V/60 Hz |
AC 240 V/60 Hz |
AC 240 V/60 Hz |
|
Rated Current |
31.3 AMP |
41.7 AMP |
62.5 AMP |
|
Rated Power |
7,500 W/25,589 BTU |
10,000 W/34,129 BTU |
15,000 W/51,194 BTU |
|
Phase |
1 |
1 |
1 |
|
Circuit Breaker |
40 AMP or larger |
60 AMP or larger |
80 AMP or larger |
|
Wire Size |
8 AWG or larger, copper only |
6 AWG or larger, copper only |
4 AWG or larger, copper only |
|
Product Weight |
23.8 lbs |
39.3 lbs |
39.3 lbs |
|
App Control |
None |
✔ |
✔ |
|
Temp. Setting Range |
50-95 ℉ |
45-95 ℉ |
45-95 ℉ |
|
Timer Setting Range |
1-8 h |
1-12 h |
1-12 h |
|
Heating Coverage |
800-1,500 sq. ft. |
1,200-2,000 sq. ft. |
1,600-2,500 sq. ft. |
