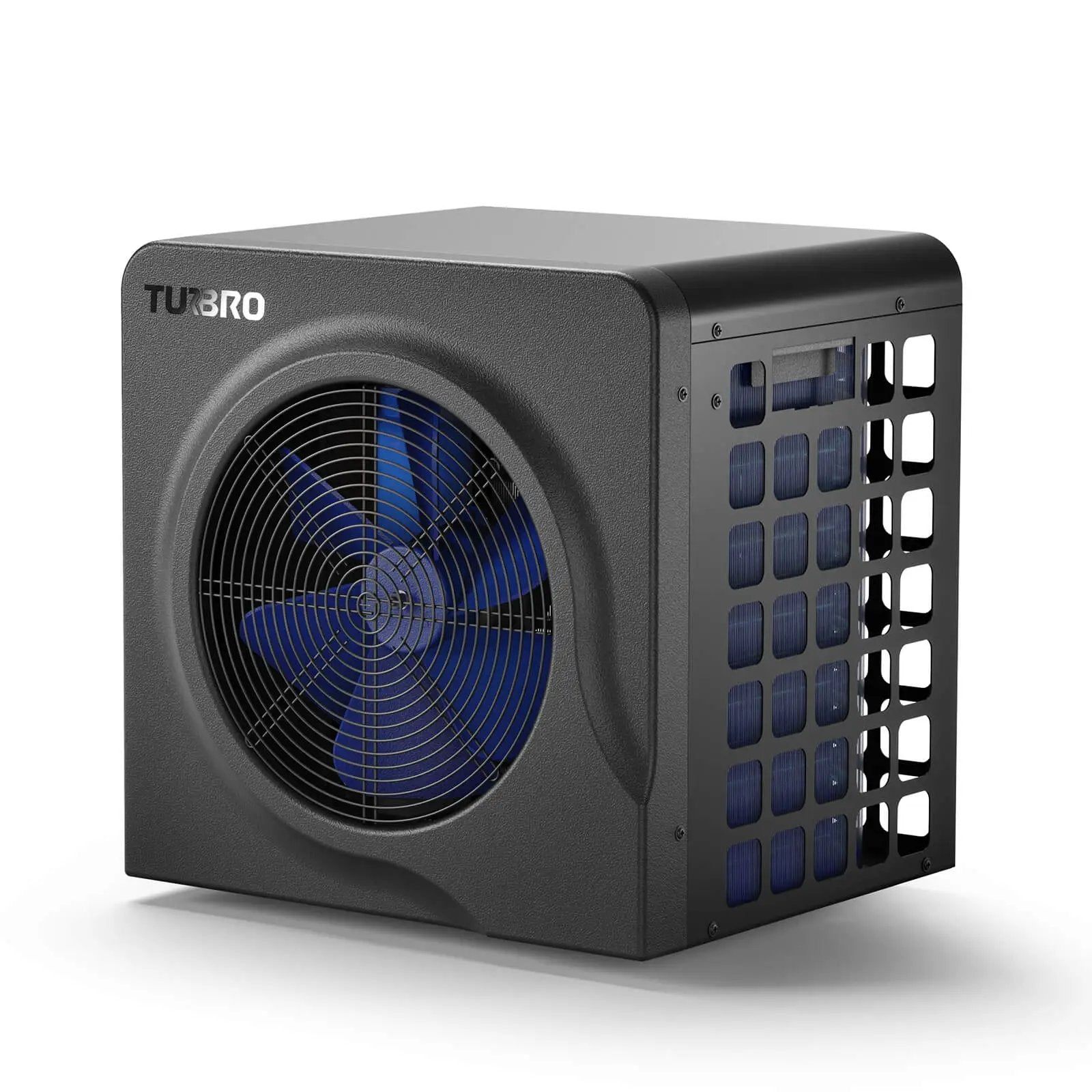

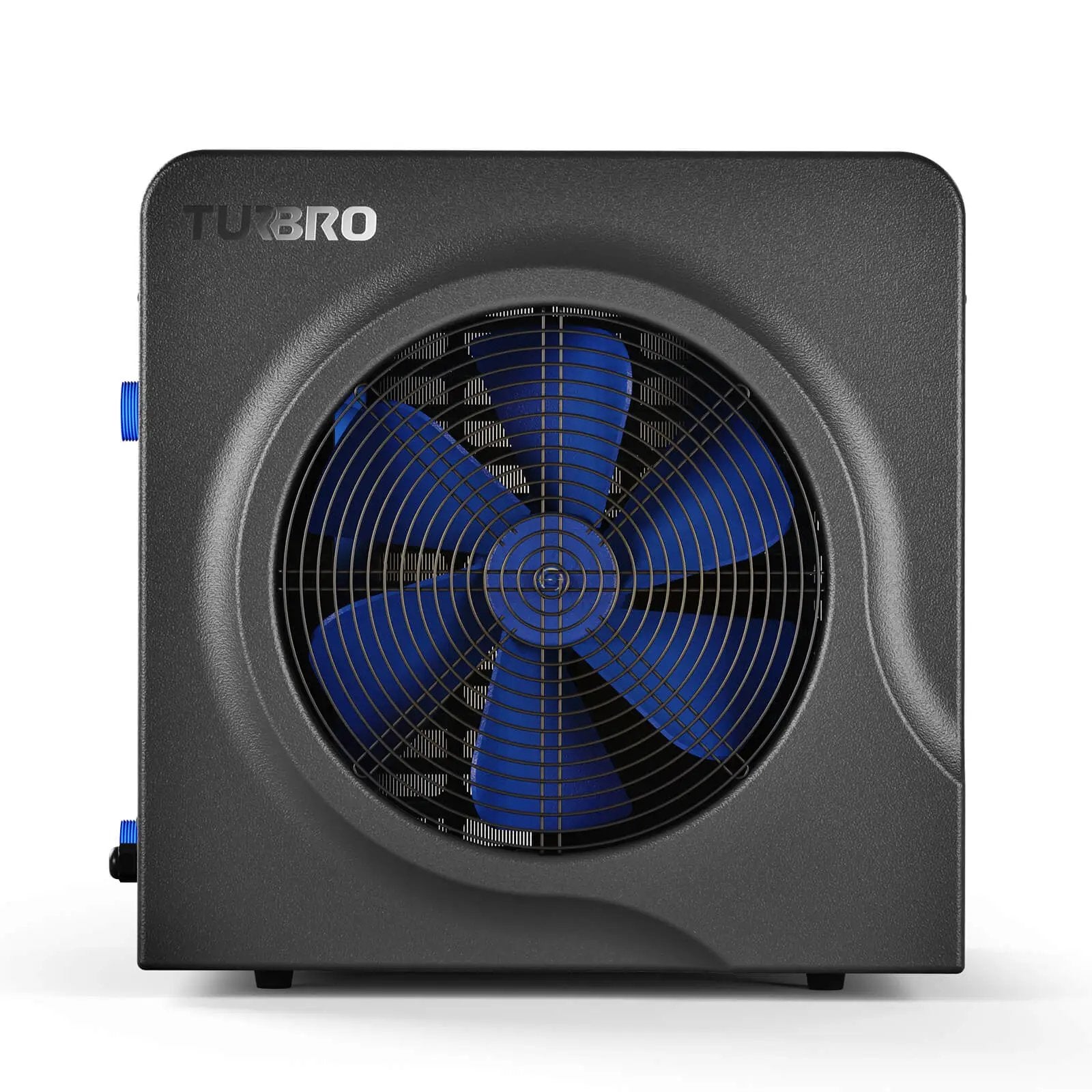

This Manatee series heat pump extends your swimming season efficiently, warming pools up to 104°F even on cooler spring days without overheating the water.

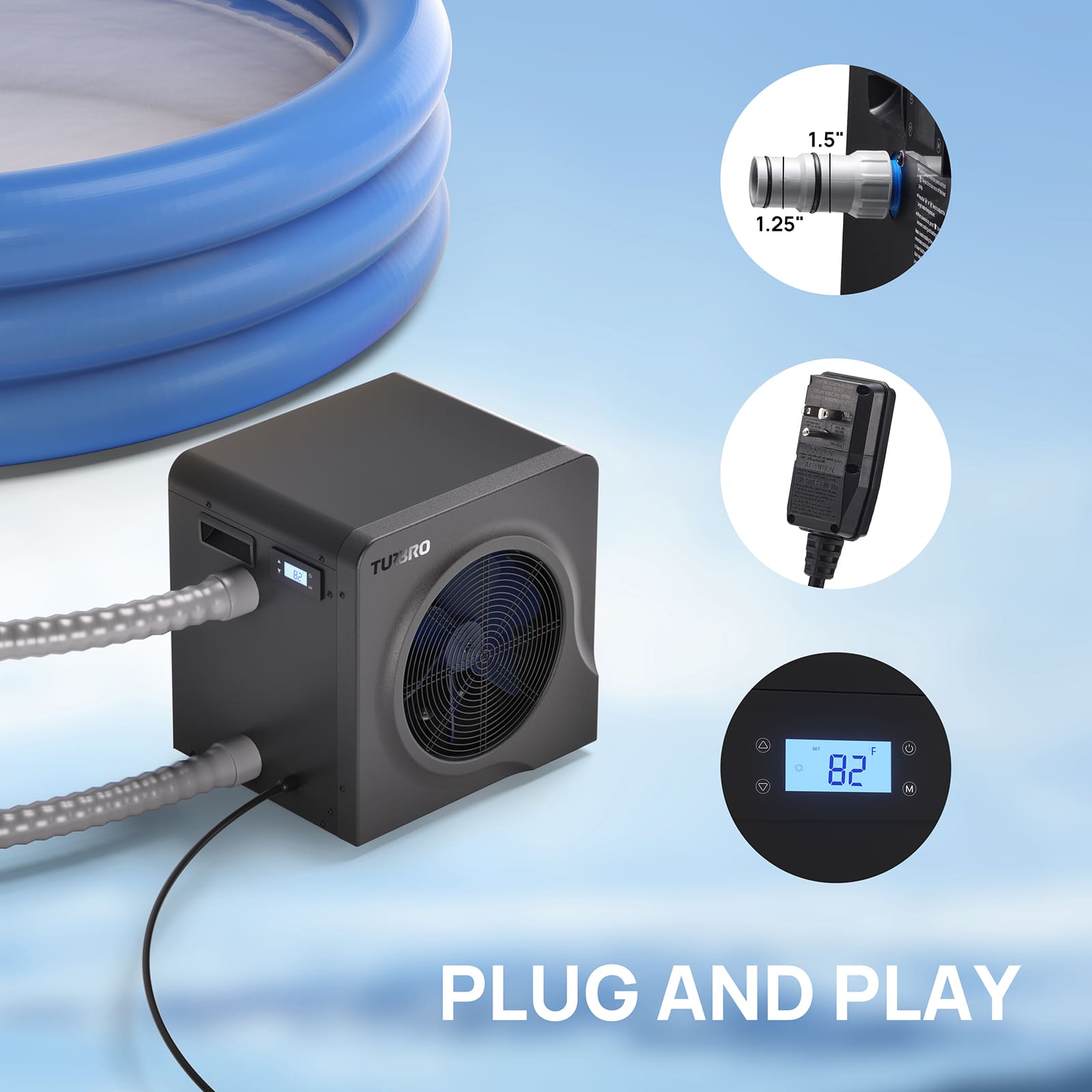

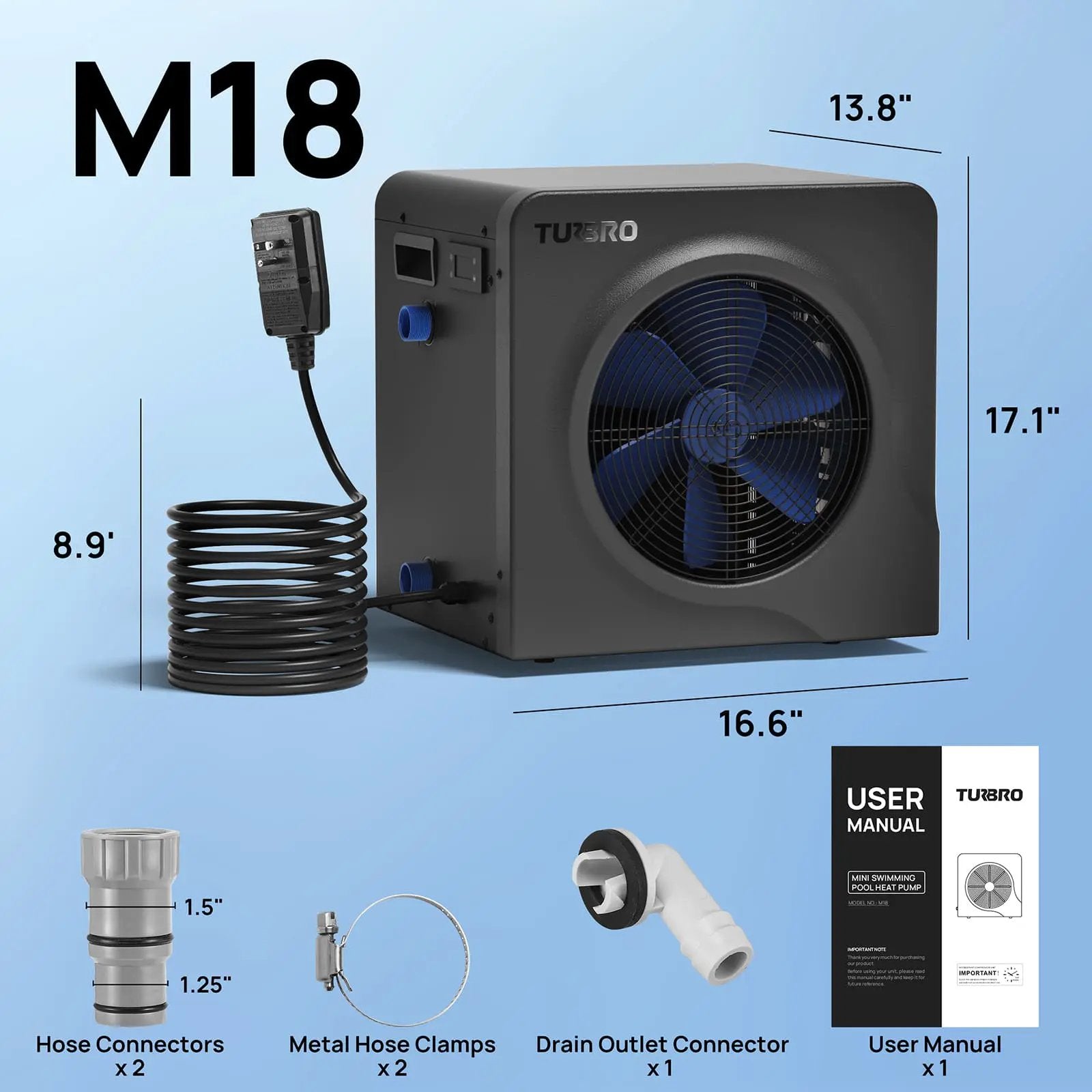

Assembly is simple with included hose clamps, requiring no professional help. The unit accepts 110-120 V power and plugs directly into standard electrical outlets.
Safety & Maintenance: Features an IPX4 waterproof rating and ETL-approved GFCI protection. Control panels lock to prevent accidental changes.
Ambient temperatures affect performance; optimal heating occurs between 23-104°F. Water hoses and filters are not included.
Please inspect all items upon arrival, as returns are handled per the standard merchandise policy for open-box configurations.
This model utilizes R410A refrigerant and connects via 1.25” or 1.50” water pipes.
|
|
|||
|
Model |
|||
|
Power Supply |
110-120 V / 60Hz |
220-240 V / 50-60 Hz |
|
|
Rated Power |
1,050 W |
220-2,350 W |
290-3,258 W |
|
COP |
5.58 |
Up to 15.9 |
Up to 16.2 |
|
Maximum Heating Capacity |
20,000 BTU |
52,200 BTU |
75,000 BTU |
|
Maximum Input Current |
13.5 A |
14.5 A |
18.8 A |
|
Recommended Wire Gauge |
/ |
12 AWG |
|
|
Minimum Breaker Size |
15 A |
30A Double Pole |
|
|
Refrigerant |
R410A |
R32 |
|
|
Ambient Temp. Range |
23-104℉ |
14-109℉ |
|
|
Setting Temp. Range |
59-104℉ |
||
|
Rated Water Flow |
8.80 GPM |
29.10 GPM |
40.10 GPM |
|
Water Pipe Connection |
1.25” or 1.50” |
2.00” |
|
|
Waterproof Level |
IPX4 |
||
