Product Description

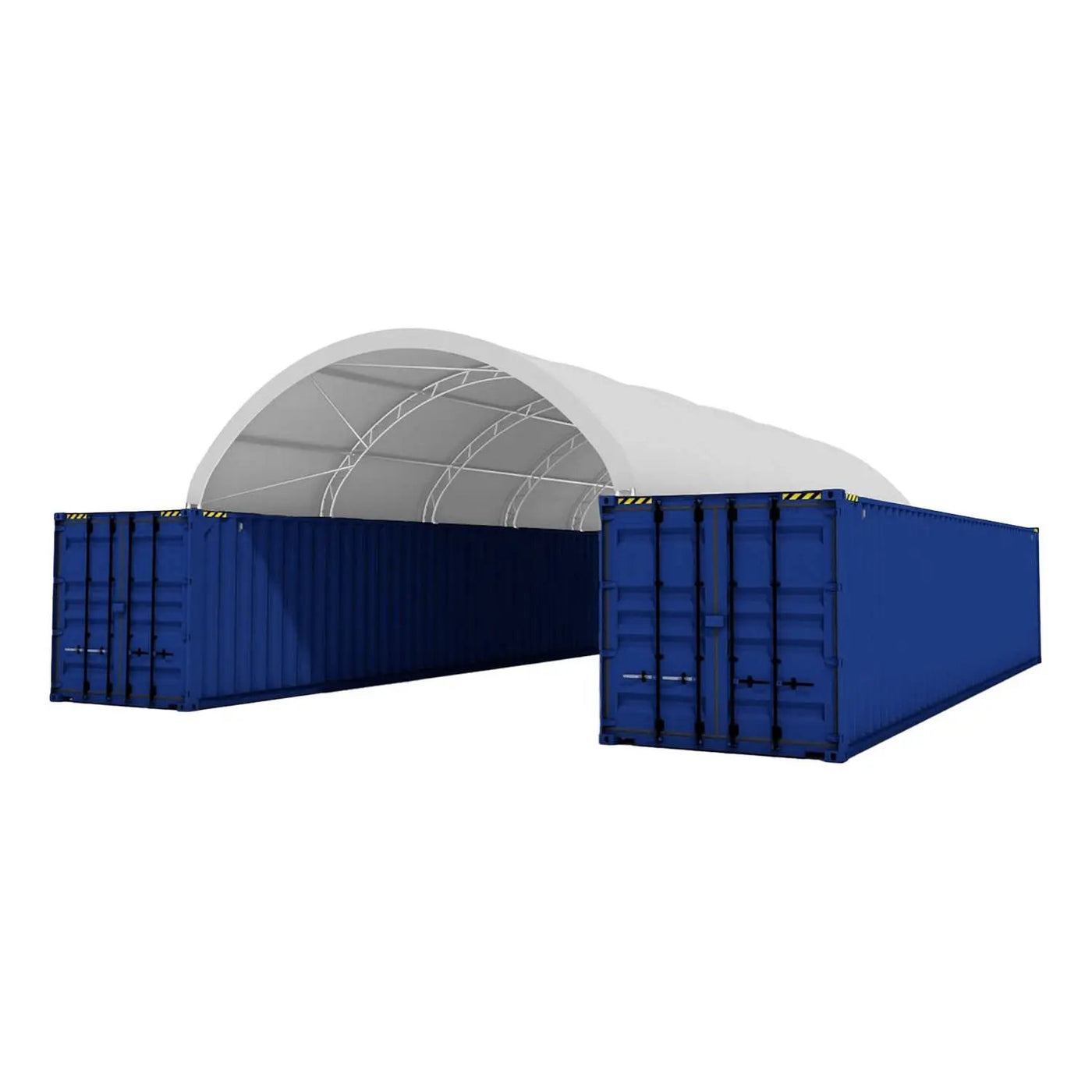

The Fortified 20'x40' Double Truss Container Shelter features a reinforced structure for enhanced stability and wind resistance, making it stronger than standard models. Designed for heavy-duty protection, it offers superior durability against harsh weather conditions. Easy to install on shipping containers, this shelter provides reliable, long-term coverage for equipment, vehicles, and materials in industrial, agricultural, and commercial settings.
How to Install the Container Shelter?
Specification
| Description | Specifications |
| Model | C2040 Dome Container Shelter |

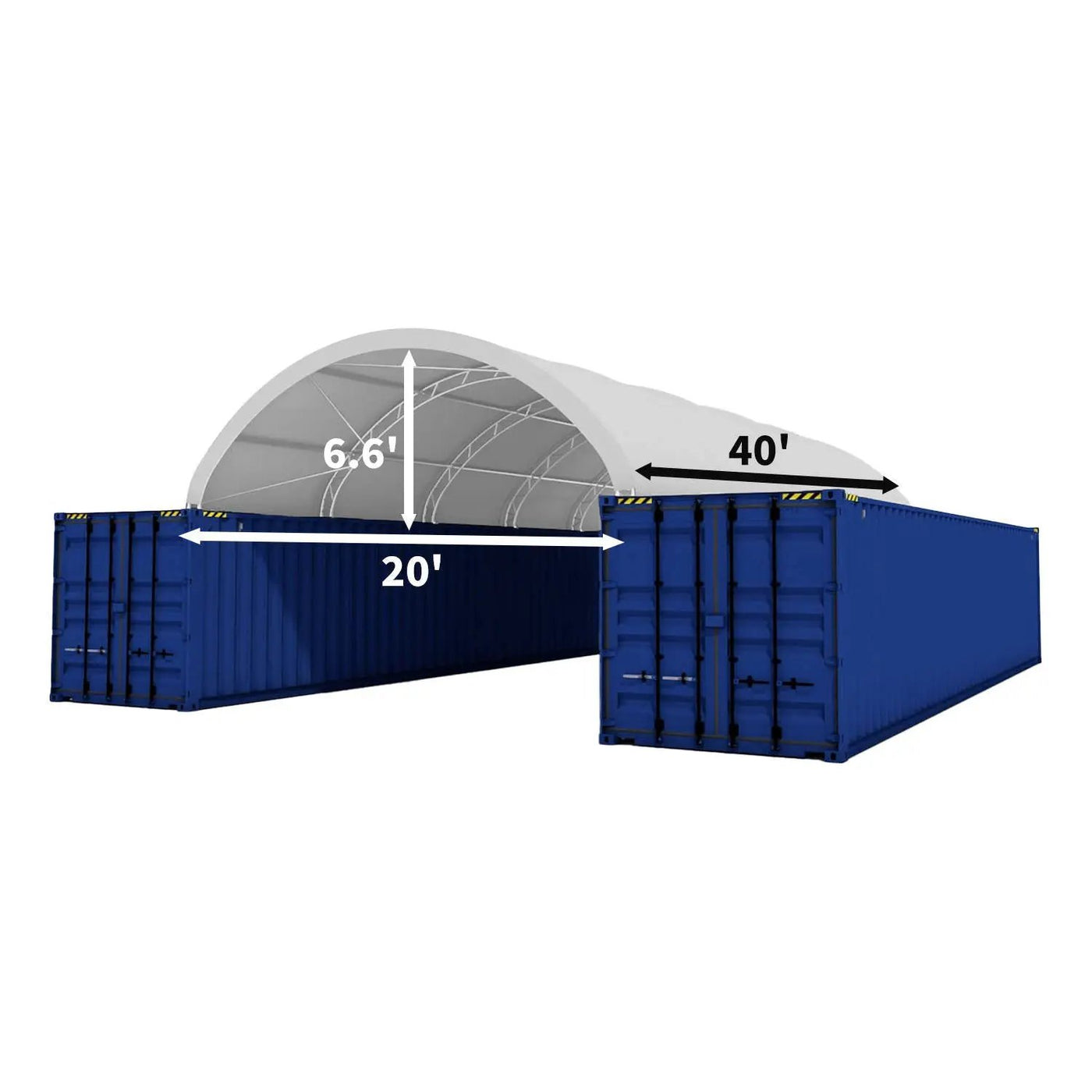

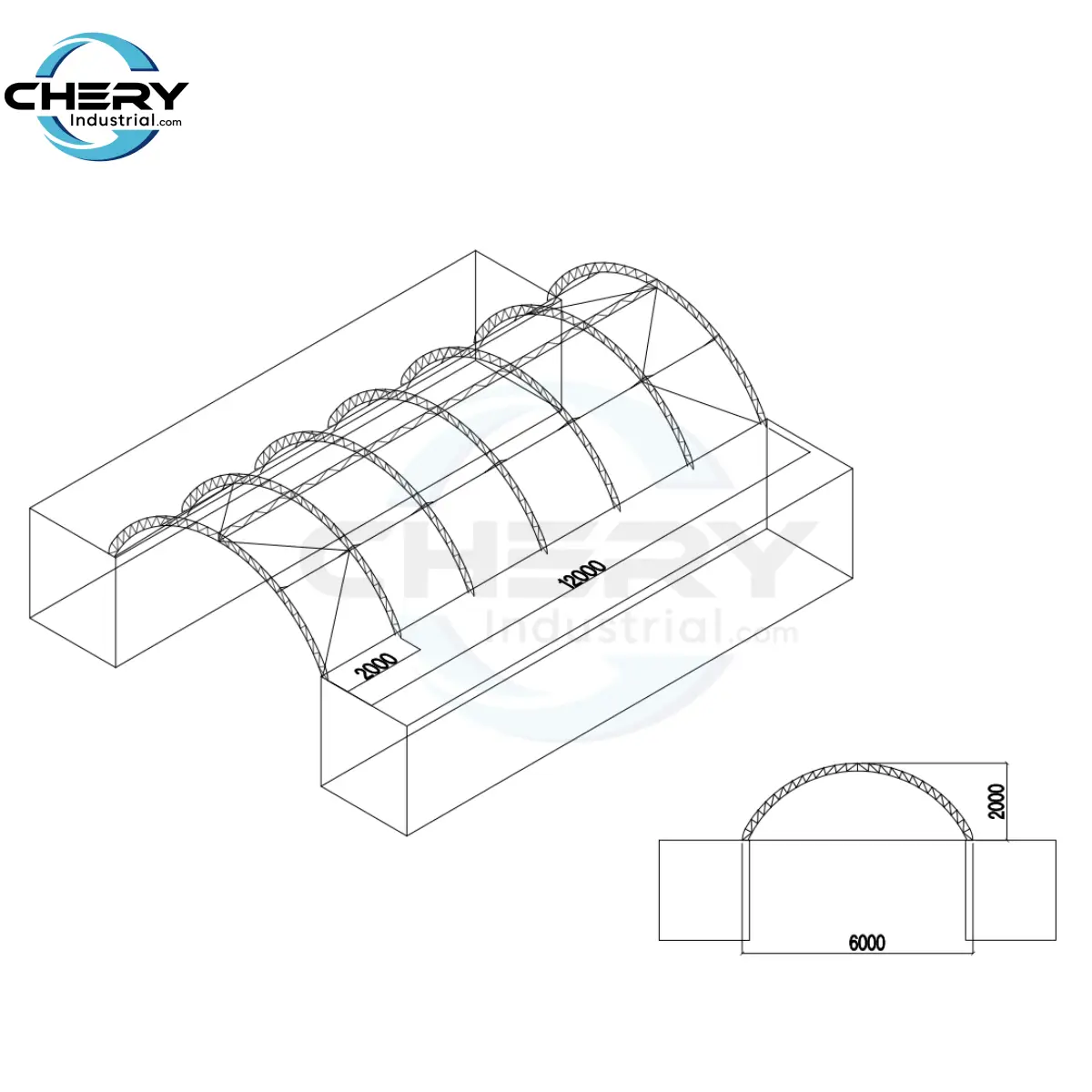

| Dimension (ft) | W20xL40xH6.6 |

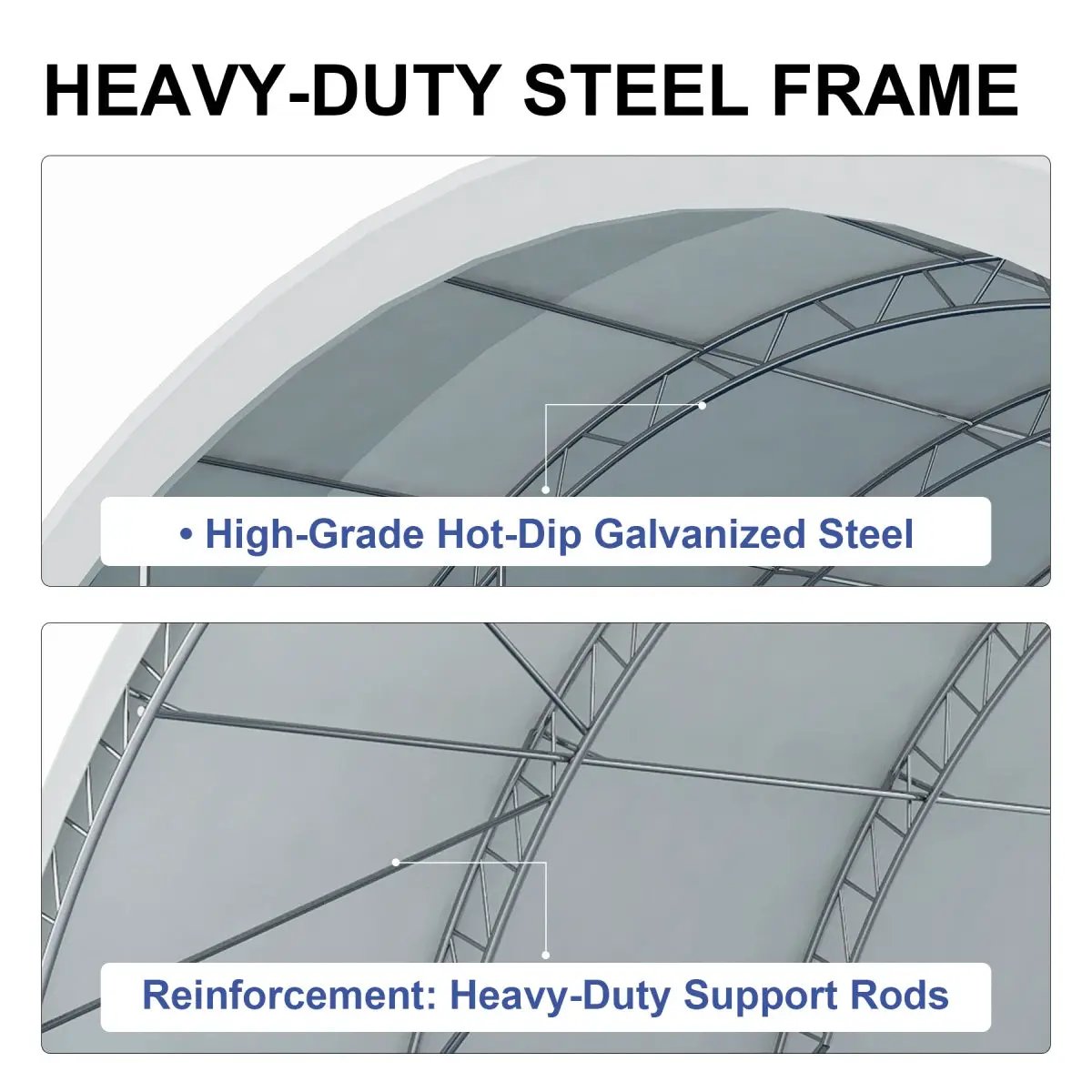

| Frame | Double Truss Galvanized Tube |

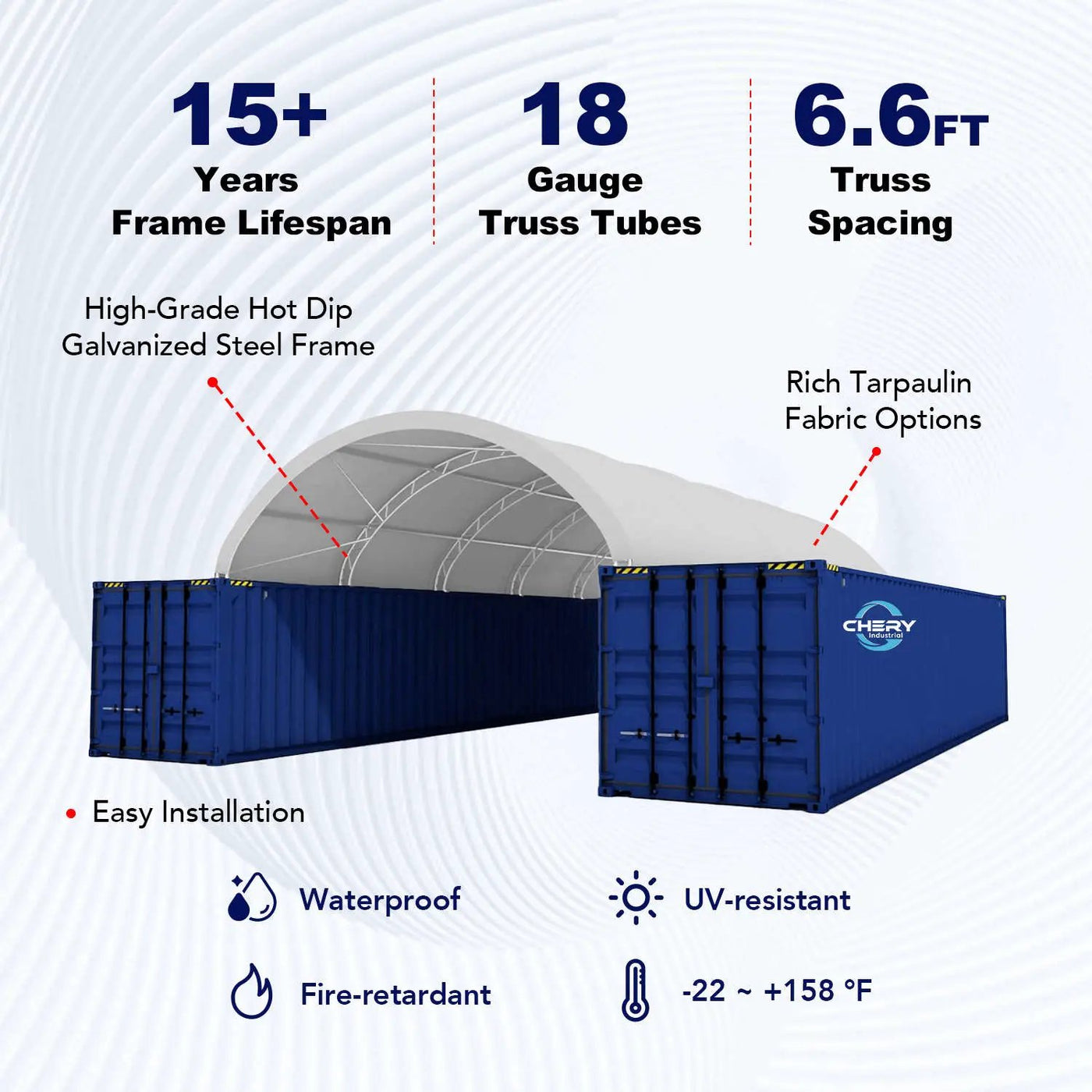

| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|

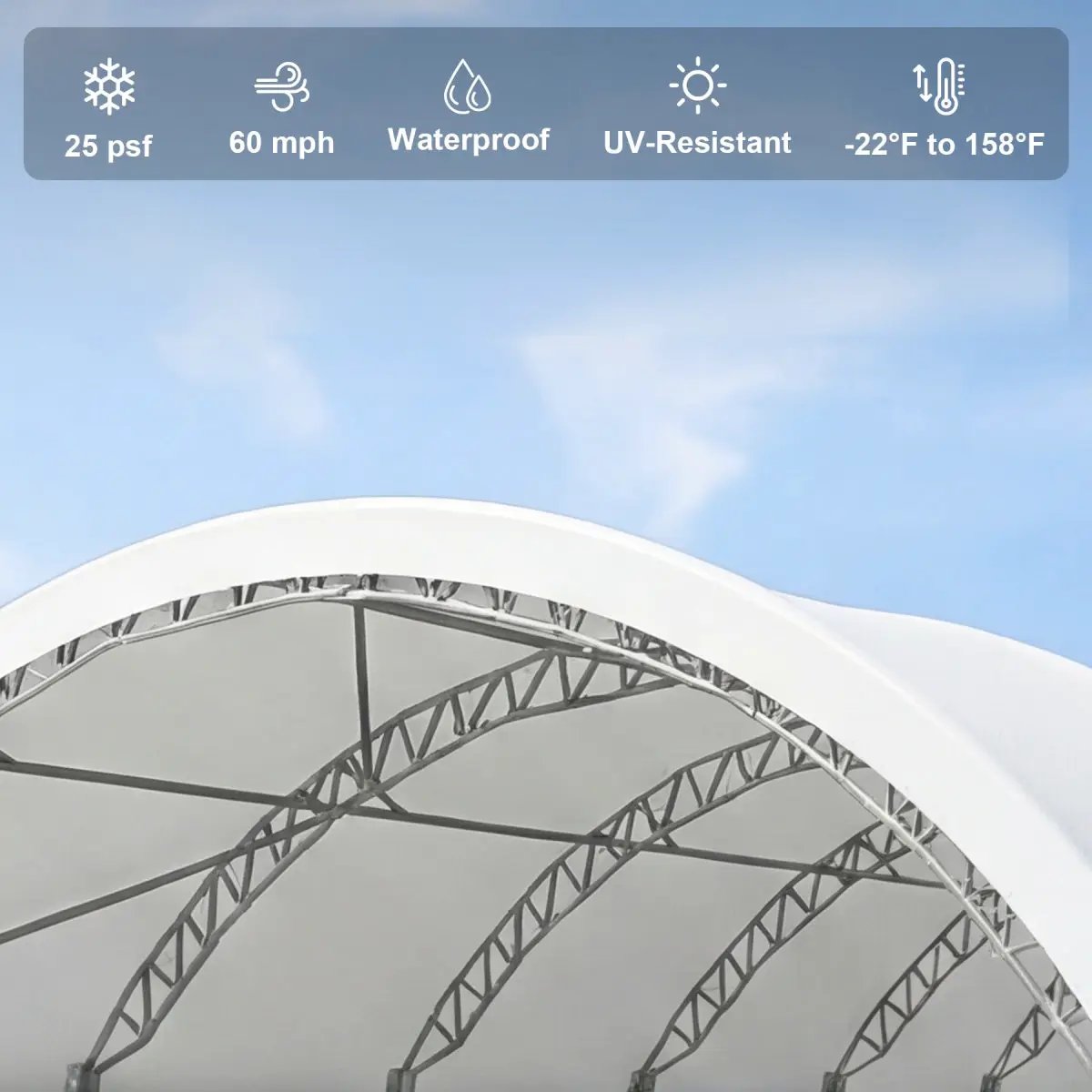

| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |
| Arch Interval | 6.6 ft |
| Arch Ø (mm) | Ø32x1.2 |
| Purlin Ø (mm) | Ø40x1.2 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Feature
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- The tarpaulin is PFAS-free and EU REACH compliant.
- No pole inside, and 100% of the interior space is available.
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
