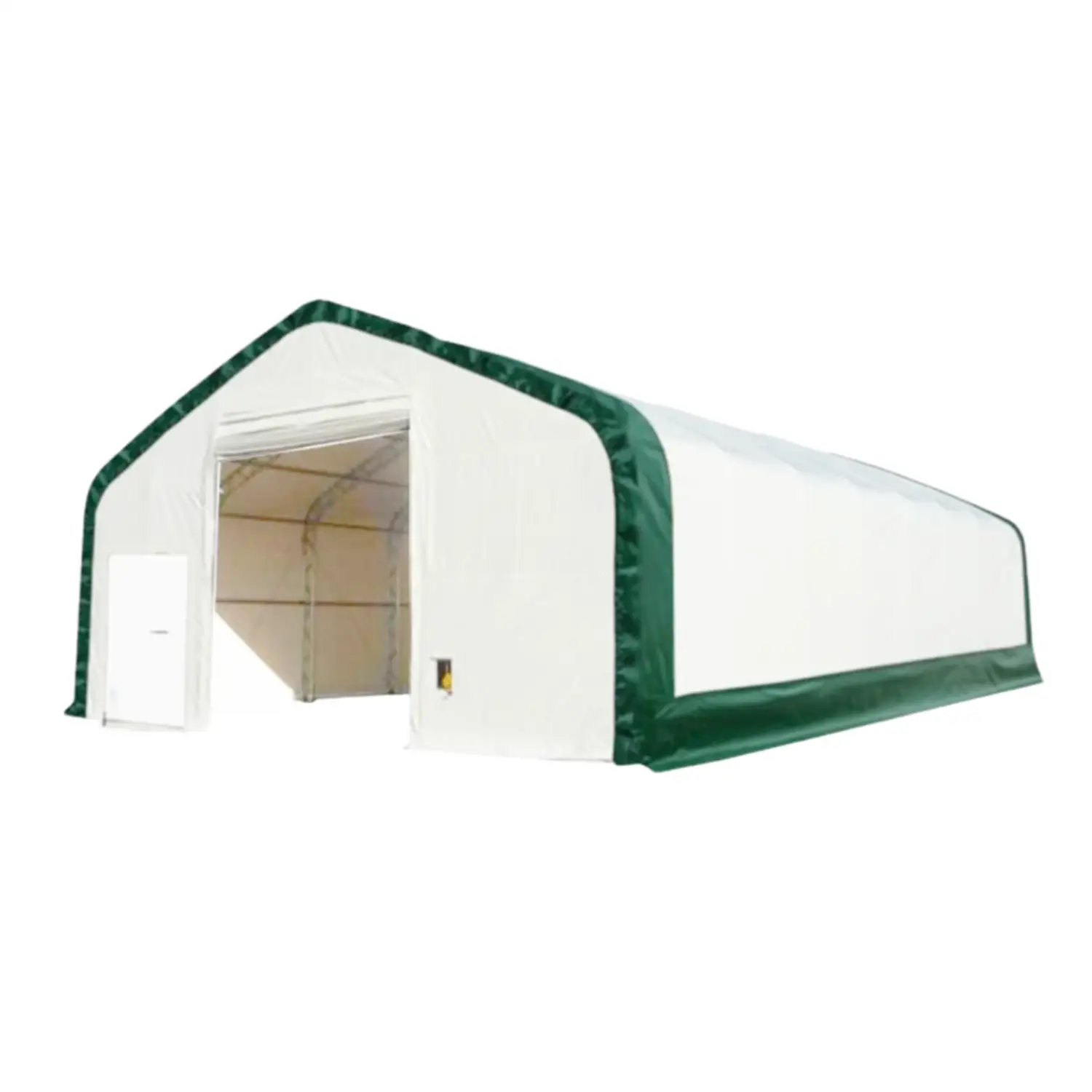

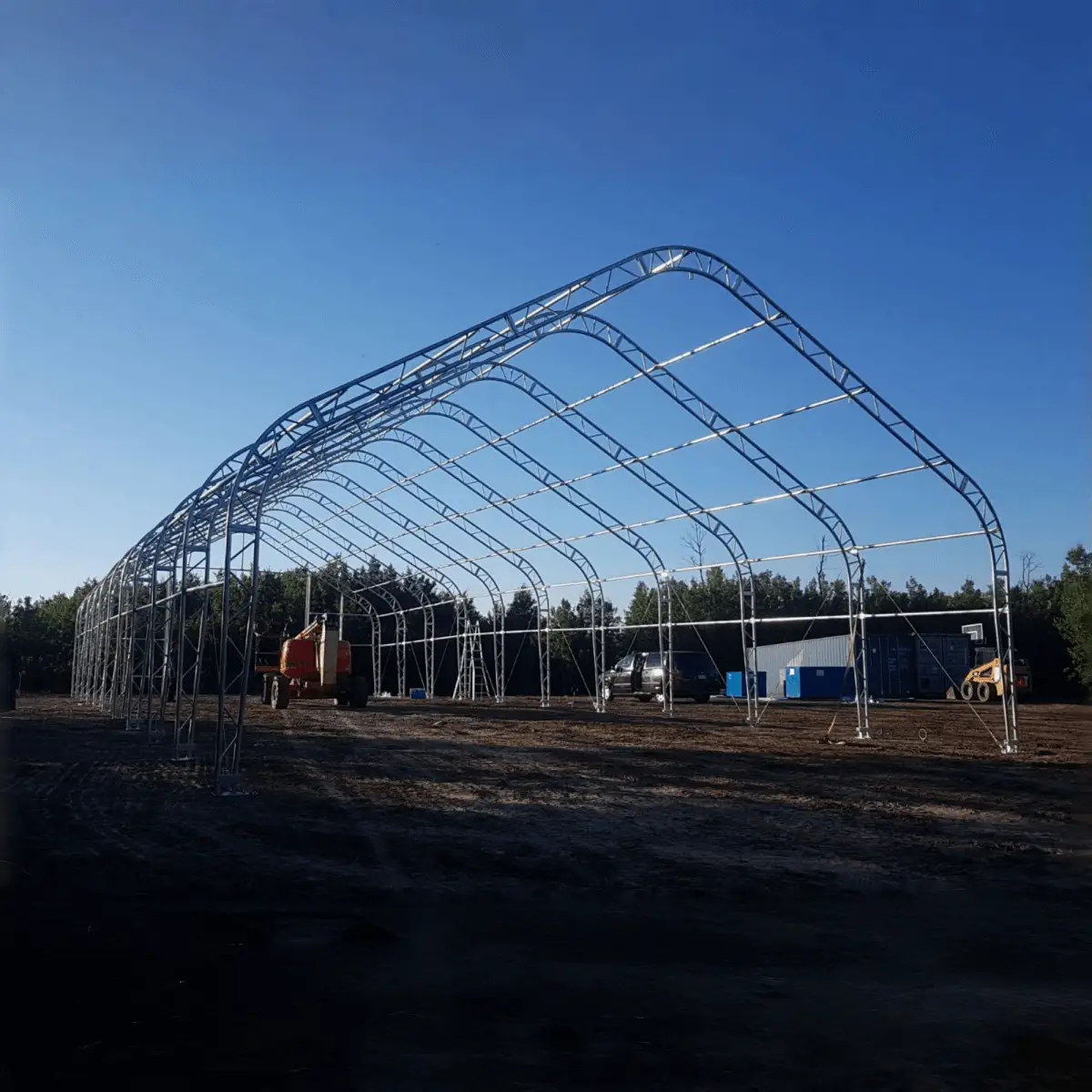

W40'xL64'xH23' Double Truss Storage Shelter

Name: W40'xL64'xH23' Double Truss Storage Shelter
Brand: Chery Industrial
SKU: SS000133
Price: 19999.0 USD
Availability: InStock

Item Code: SS000133 In stock· Stock: 1

$19,999.00

Material Weight

22oz PVC

How much do you need?

item

Total Price $19,999.00

Money Back 30 Days

500+ 5-star Reviews

Product Description

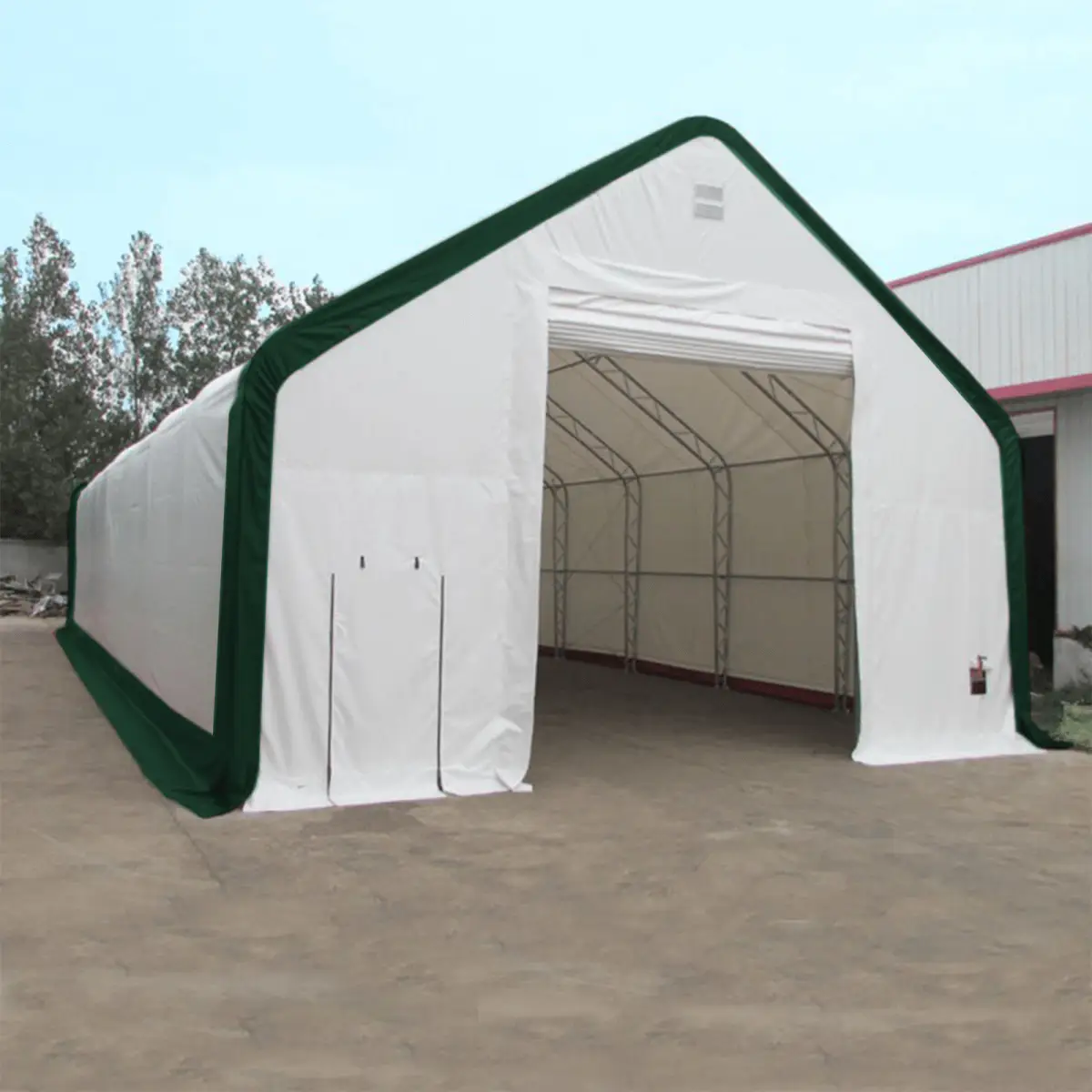

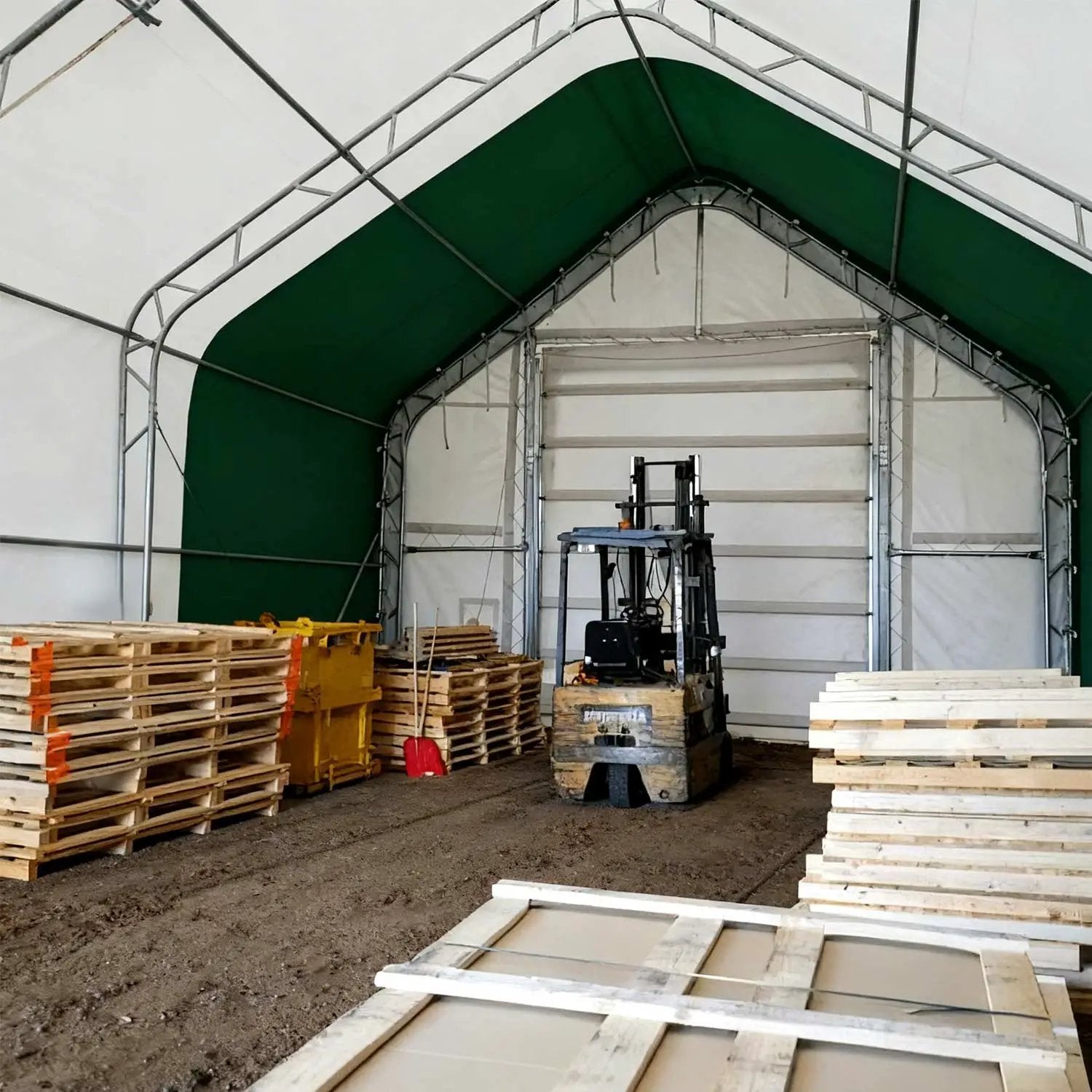

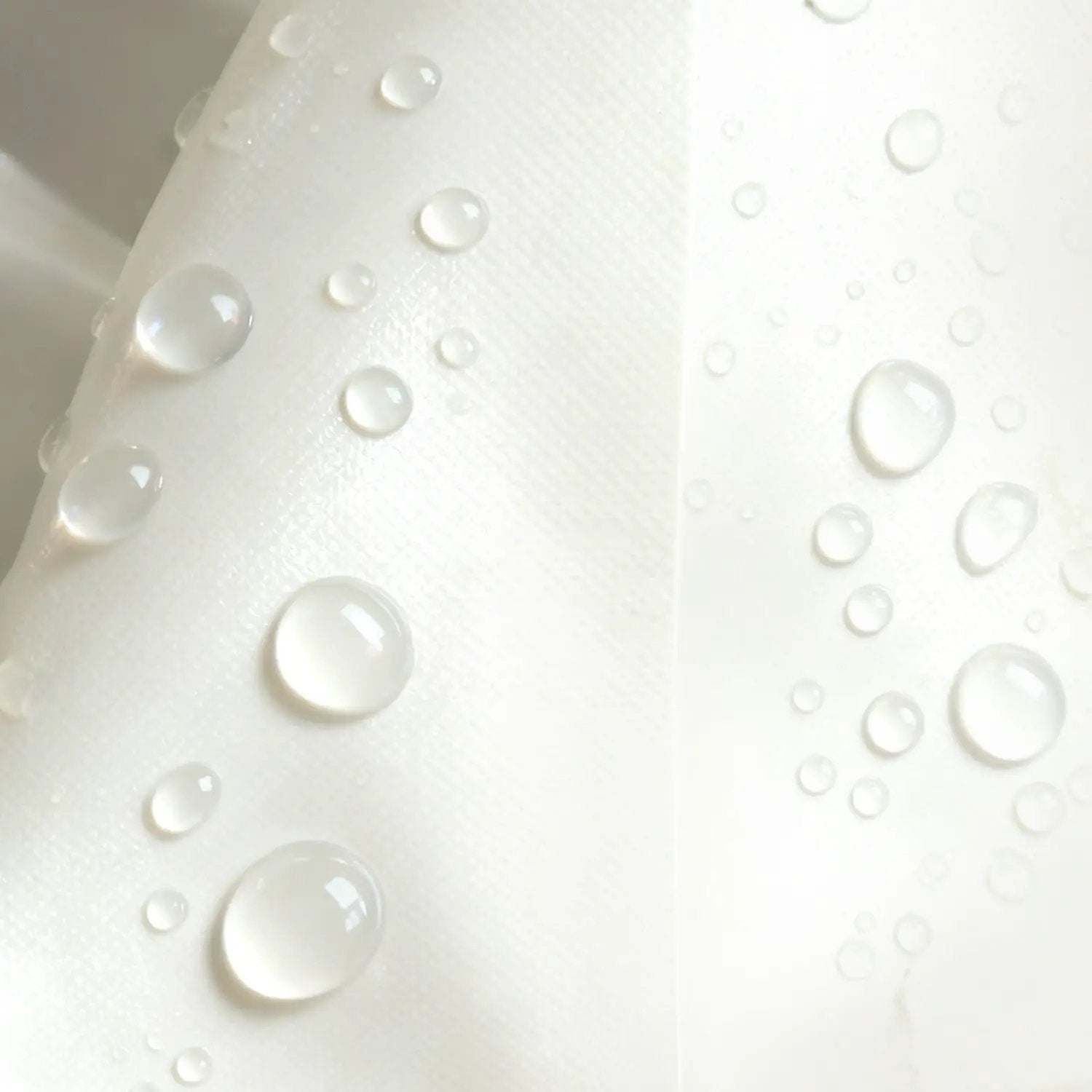

The Gold Mountain Storage Shelter W40’xL64’xH23’ - Double Truss PVC is ideal for farms, construction sites, and auto shops. Built with galvanized steel tubes, it withstands the toughest weather. The peak design aids snow removal, and the durable PVC fabric, stronger and longer-lasting than PE, ensures superior weather resistance. Perfect for protecting valuable items, this shelter offers reliable storage and protection for various needs.

Double Truss Storage Shelter W40'xL64'xH23' Feature

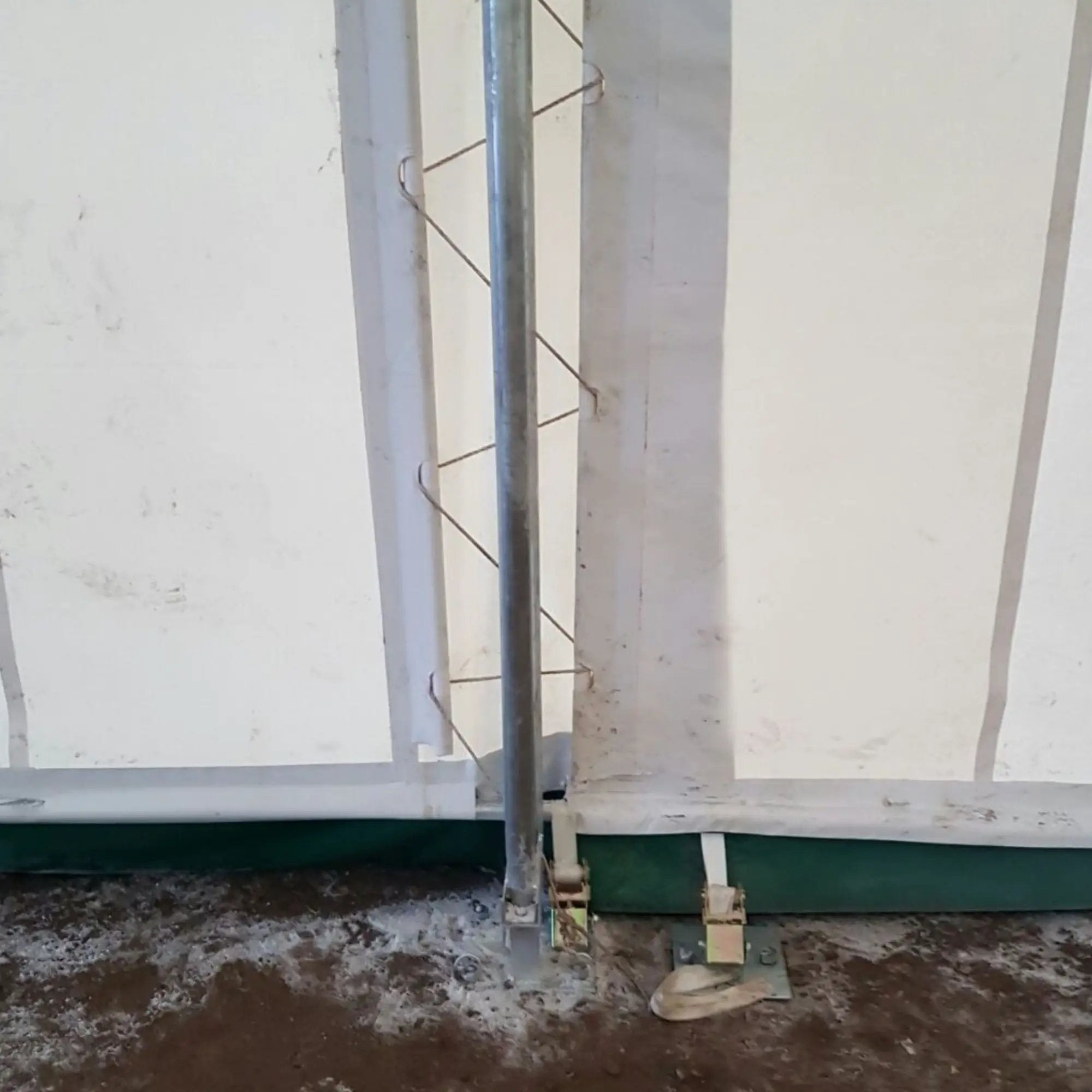

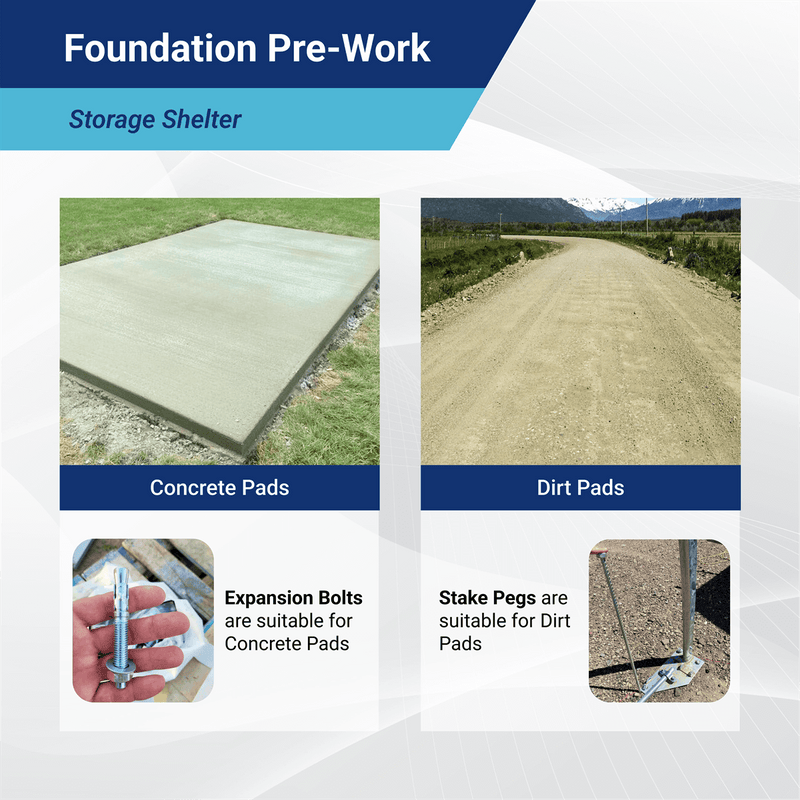

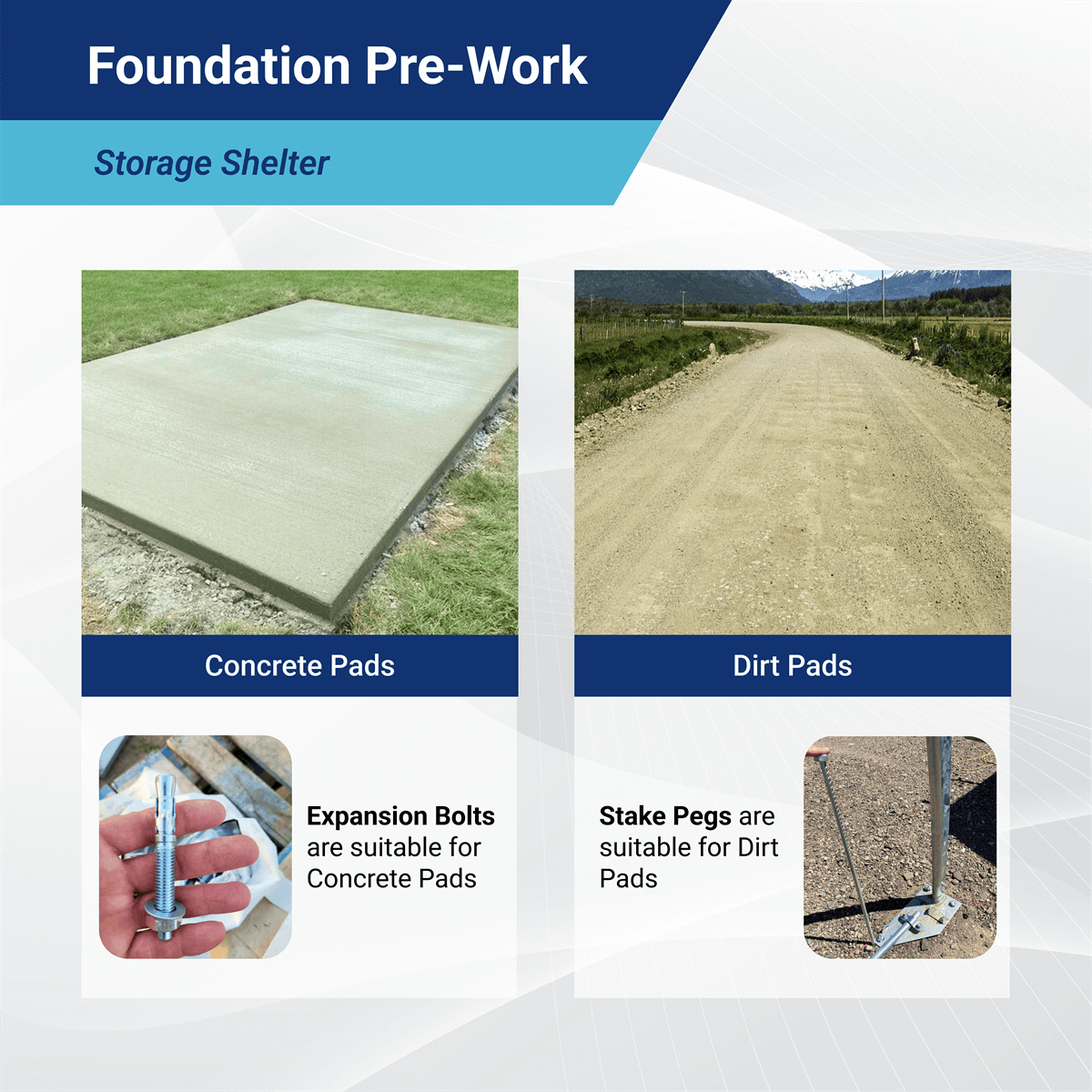

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

How to build a Storage Shelter?

Installation Manual

Specifications

Description	Specifications

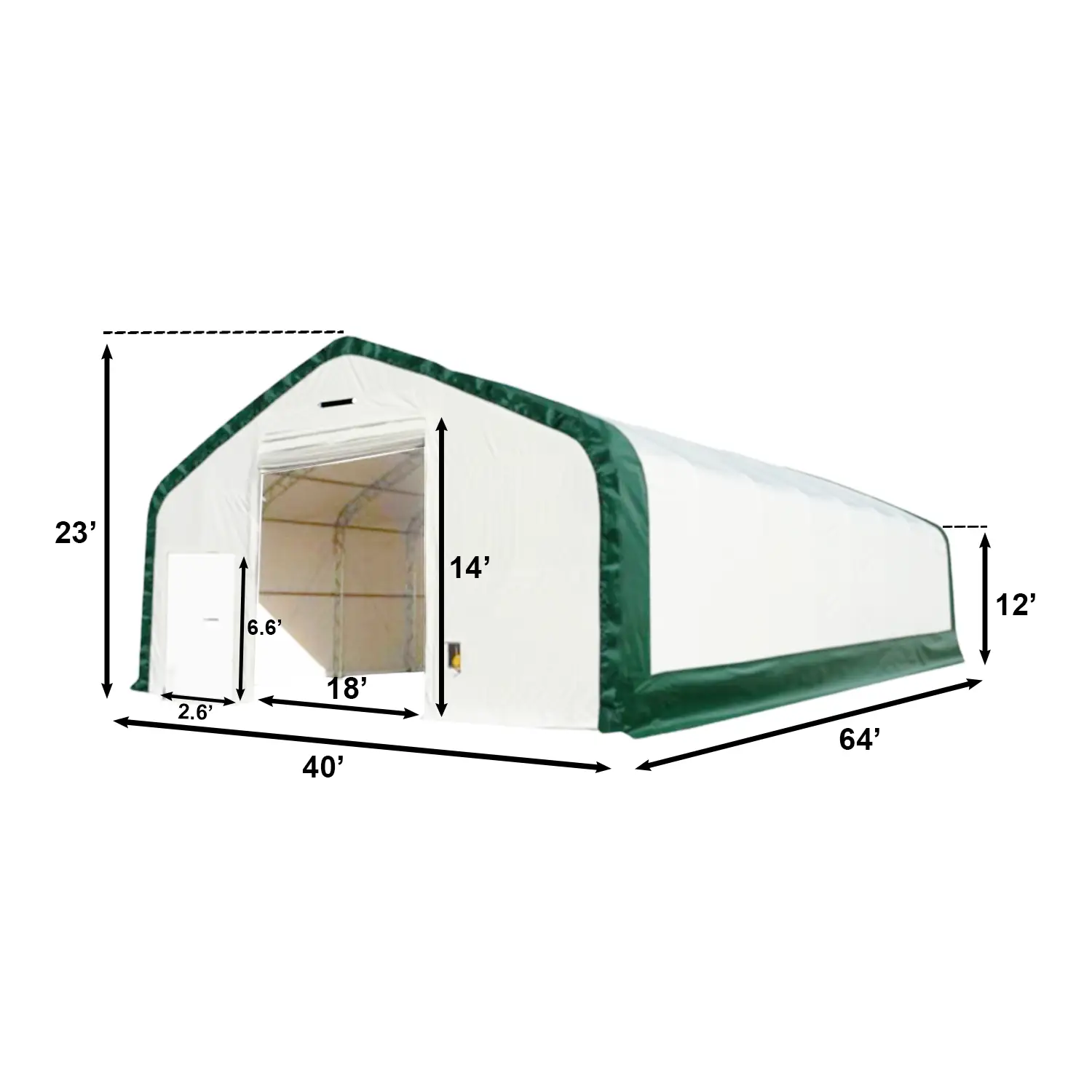

Dimensions (WxLxH)	40'x64'x23'
Side-wall Height	12 ft
Door size (WxH) (Front & Rear)	18'x14'

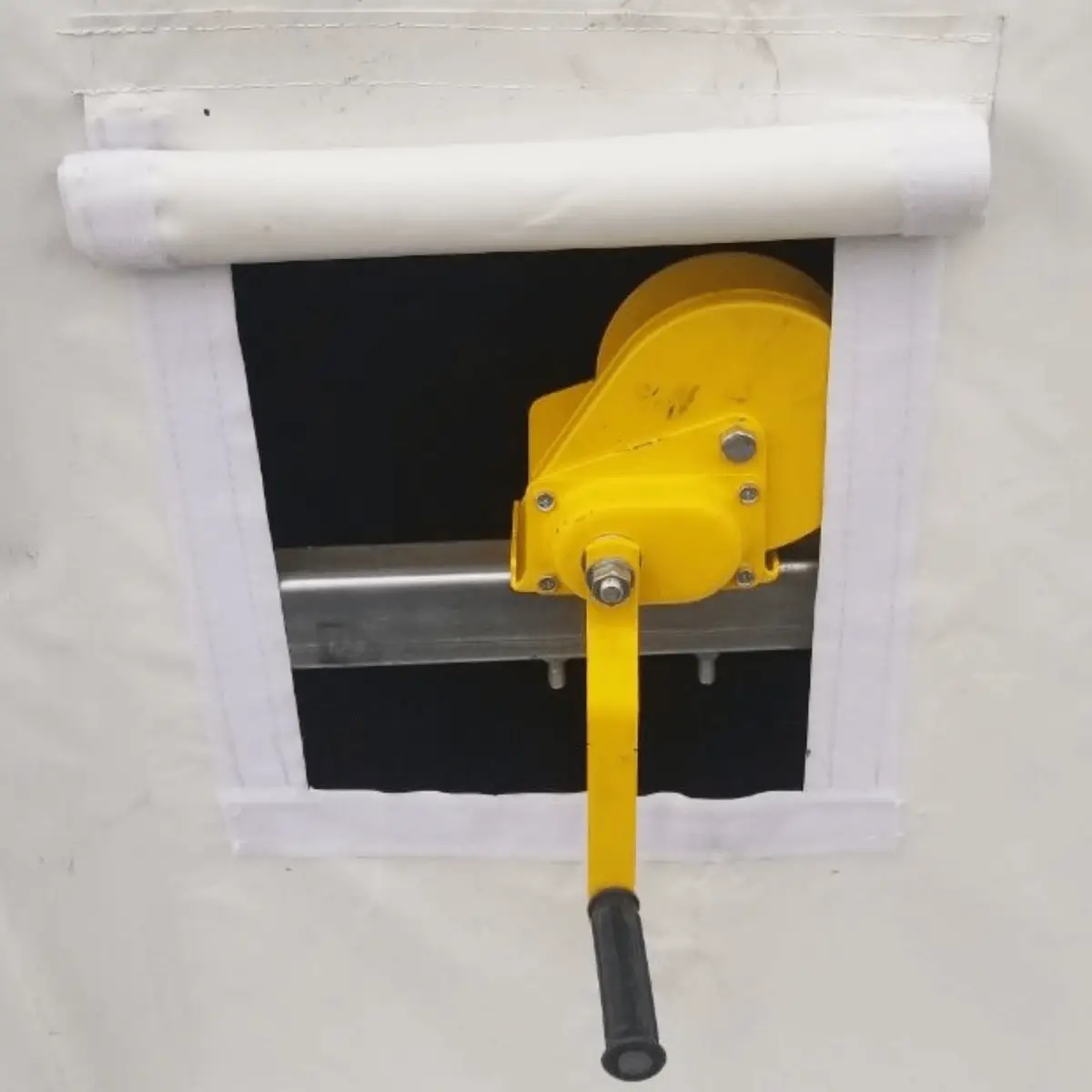

Door Type	Mechanical Rollup Door
Man Door (WxH)	2.6'x6.6'

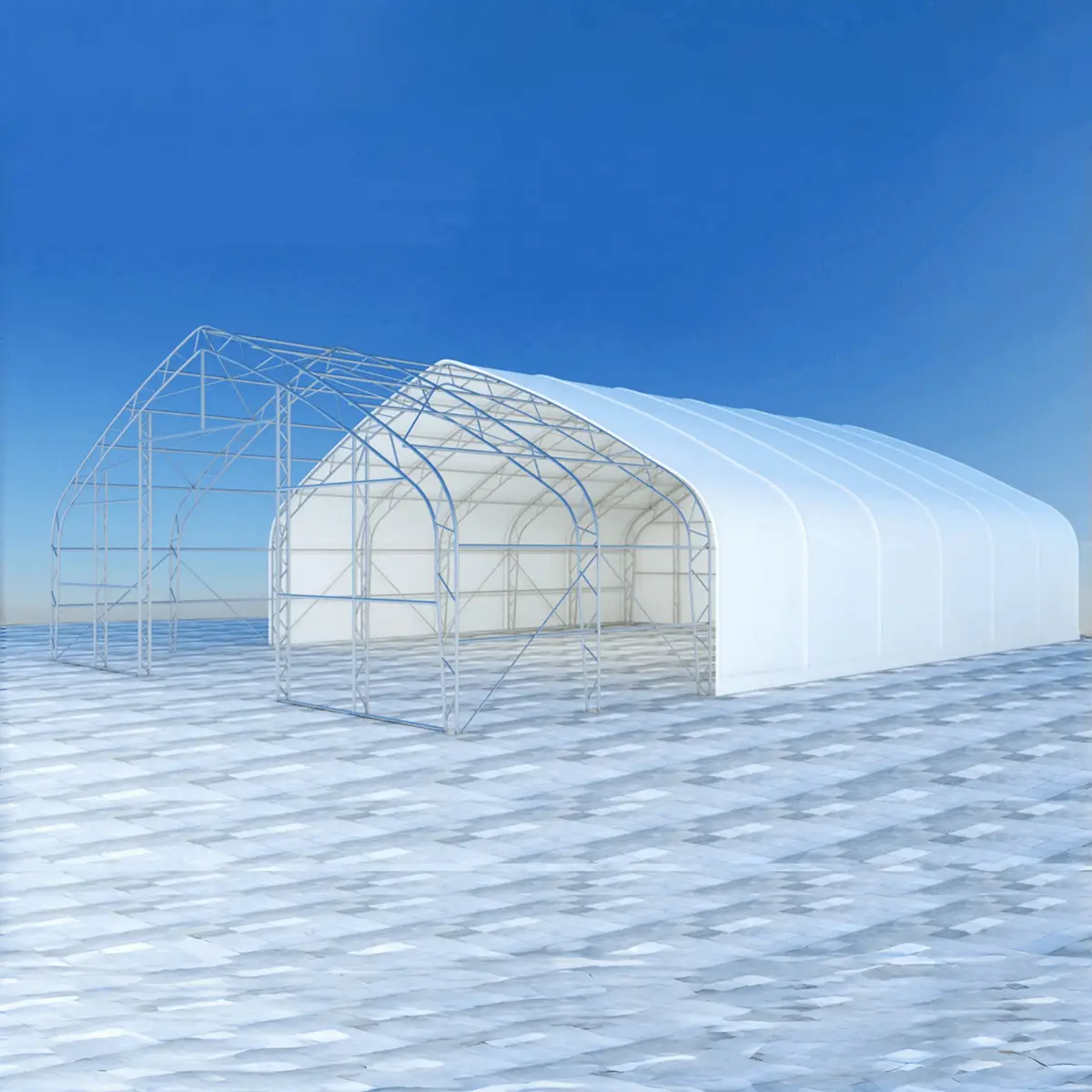

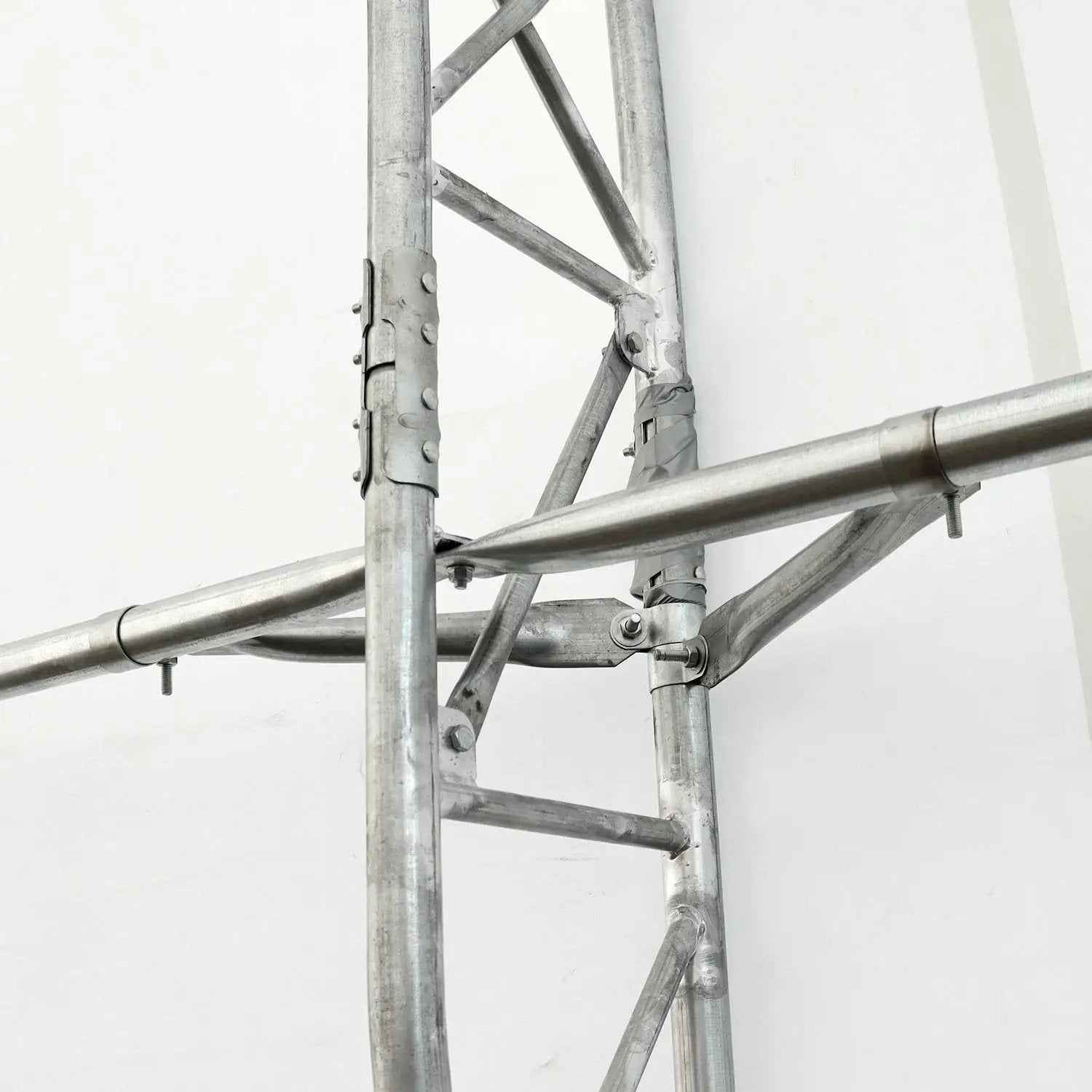

Frame	Double Truss Galvanized Tube
Steel Frame	Hot Dip Galvanized Steel
Truss tube	16 Gauge
Tarp Fabric	PE or PVC
Tarp Color (customizable)	White with Green/Red Edge
Temperature resistance	-22 - +158 °F
Arch Ø	Φ 60x1.5mm
Purlin Ø	Φ 60x1.5mm
Arch Spacing	8 ft
Number of Arch	9

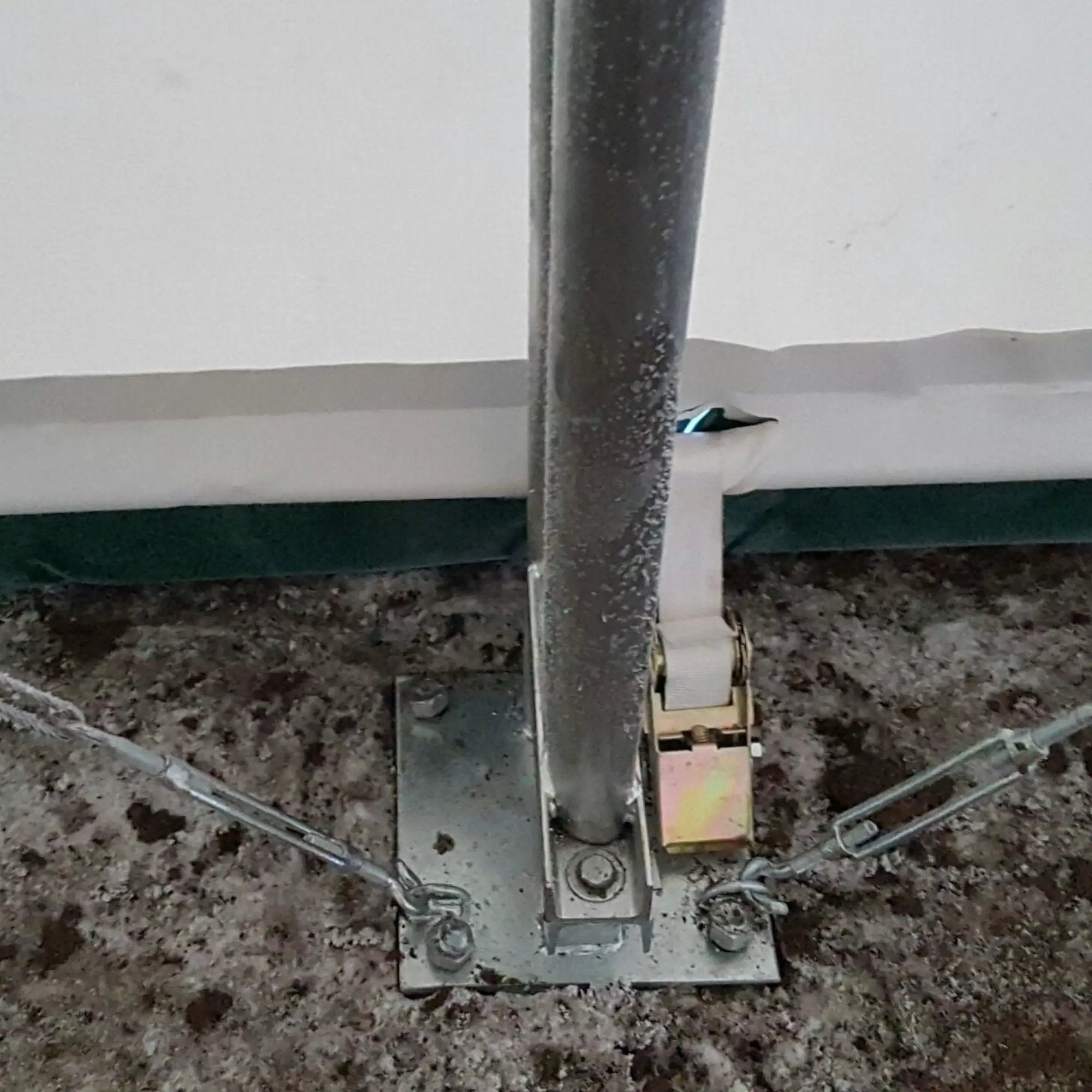

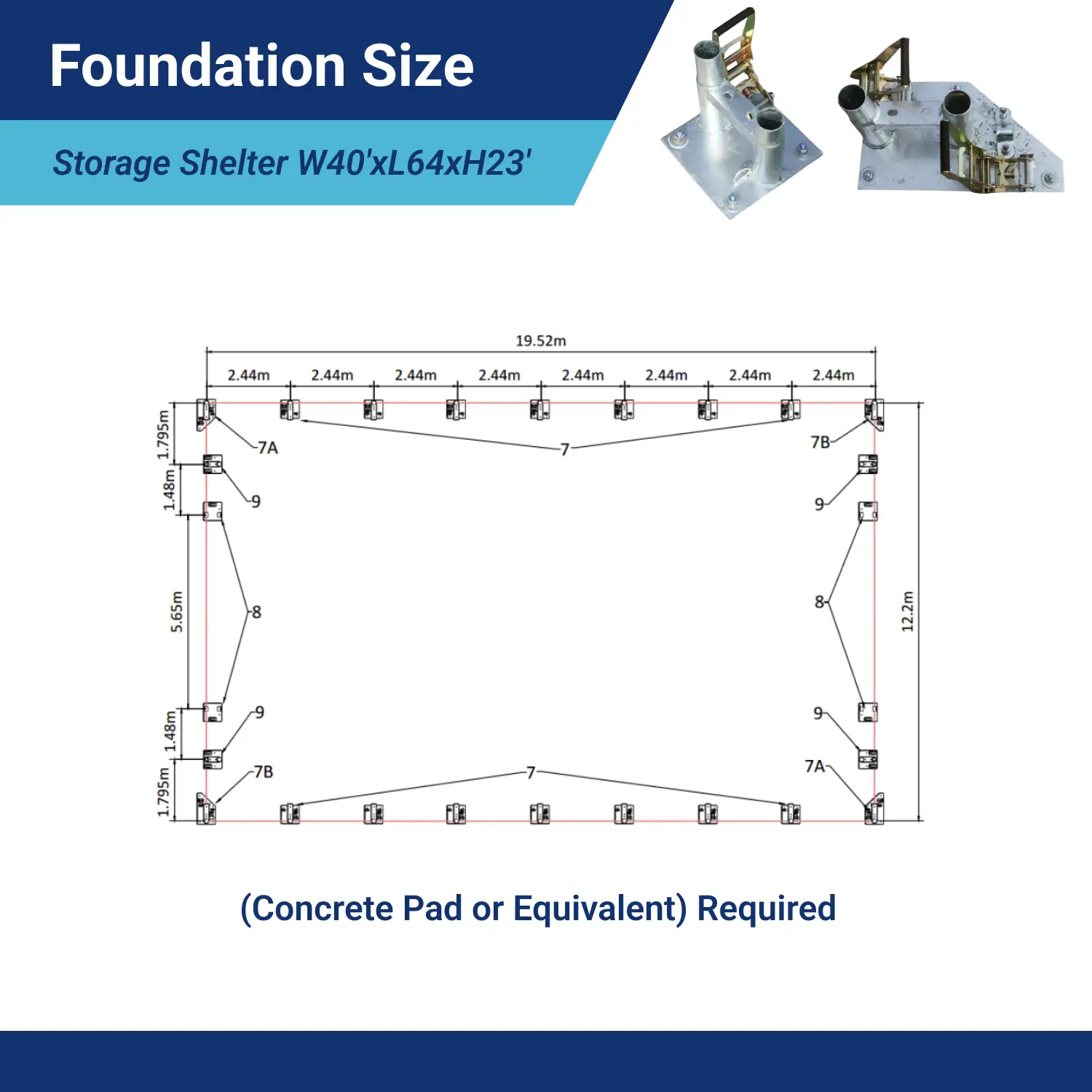

Number of Anchor plates	18

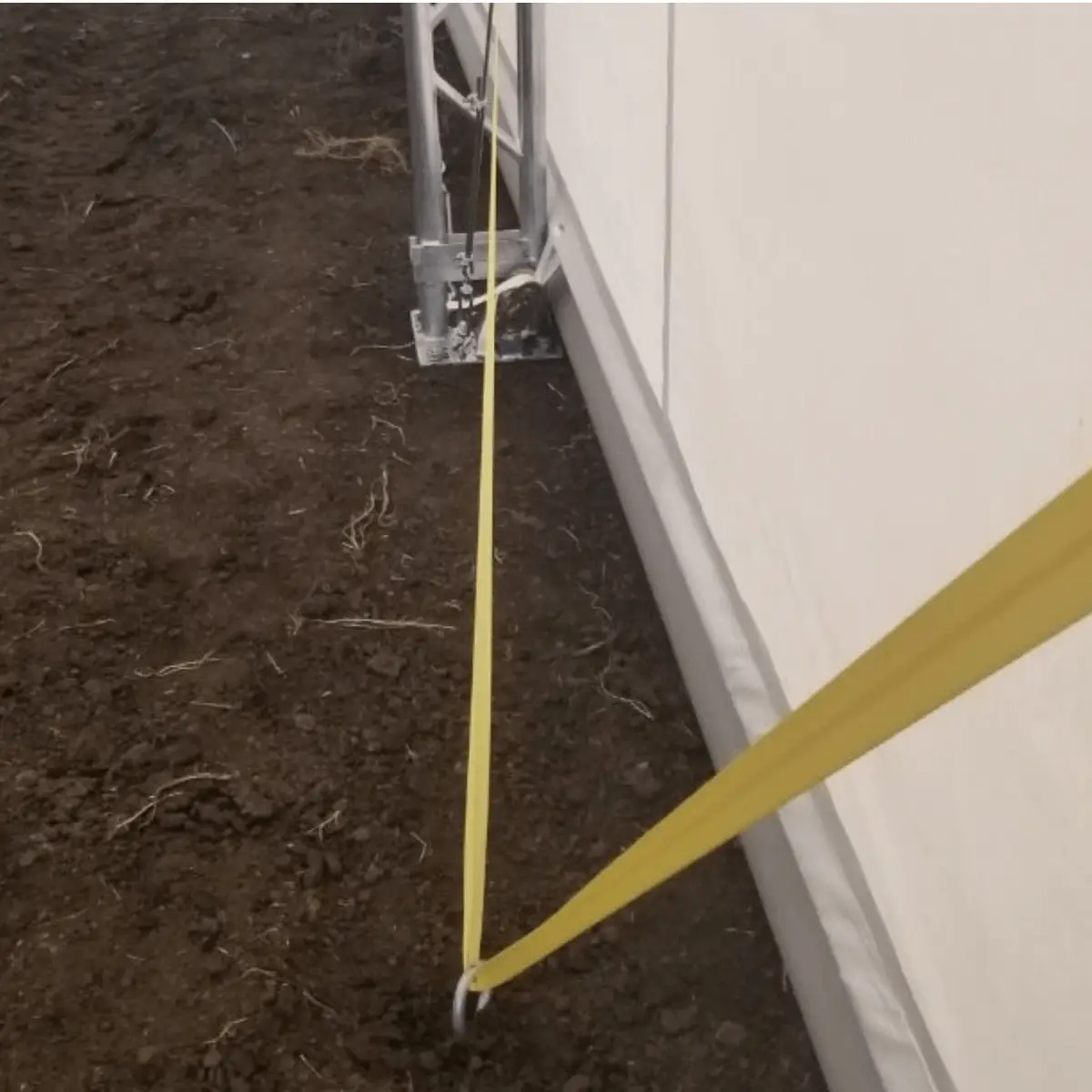

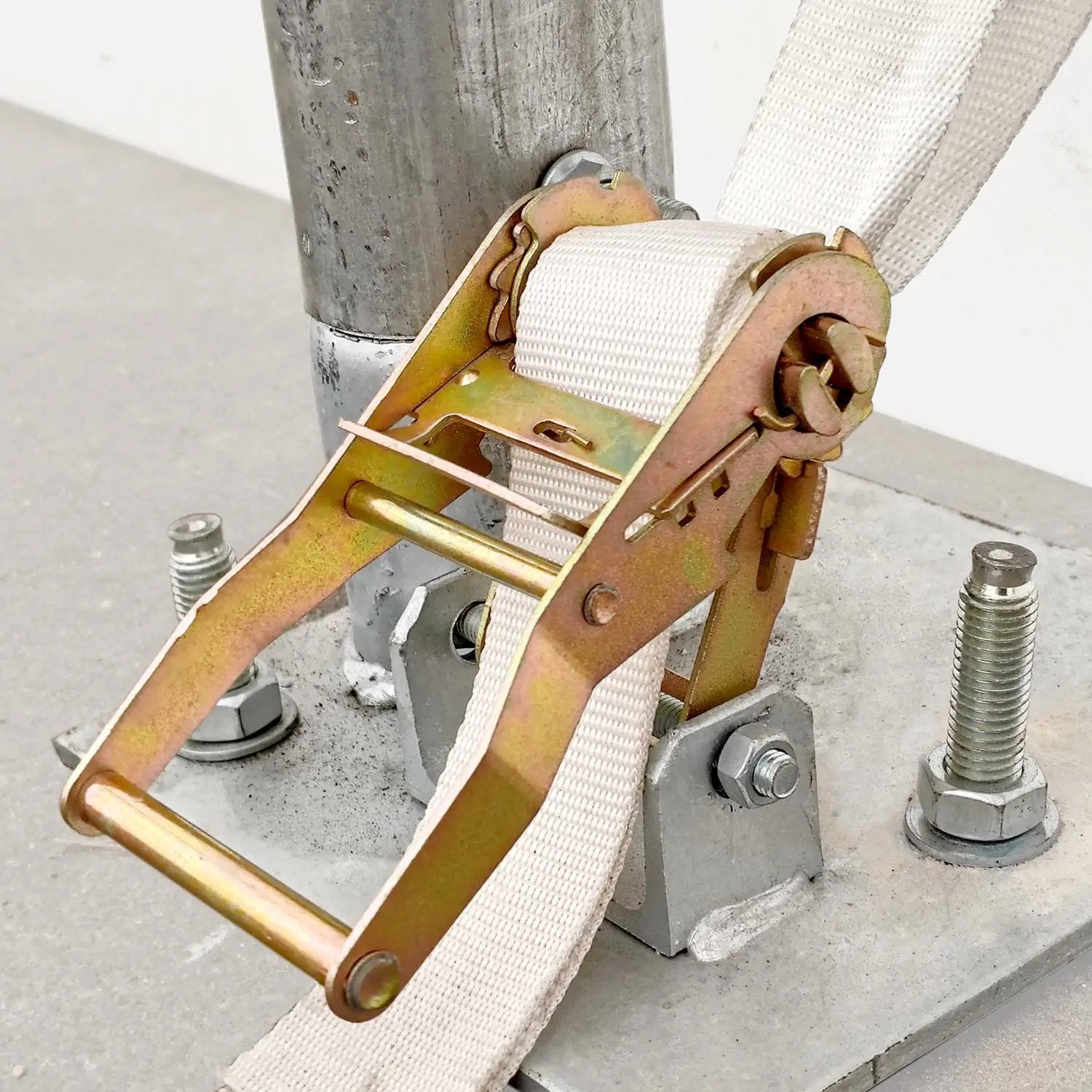

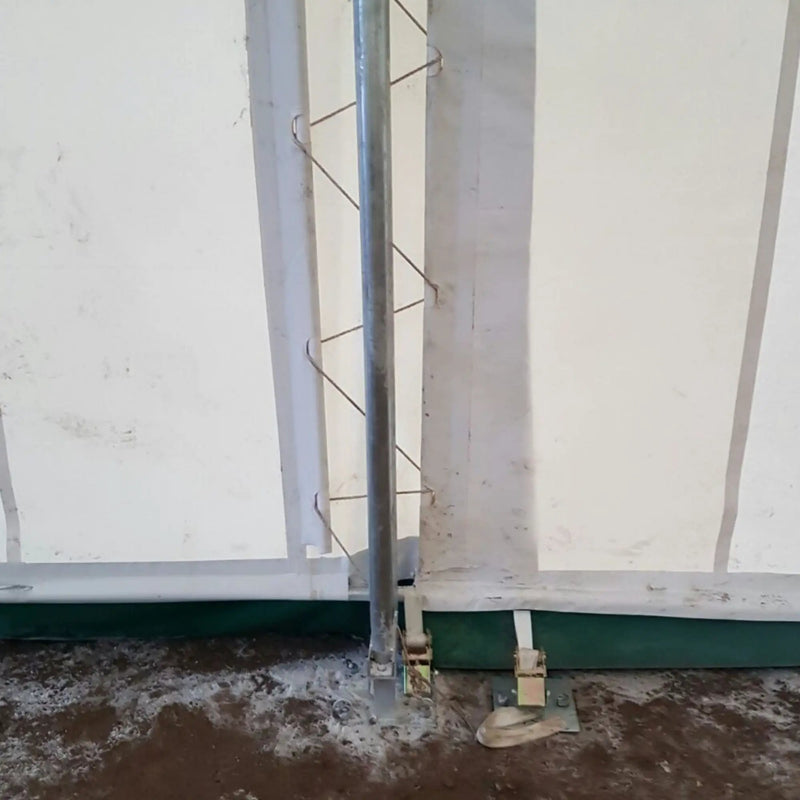

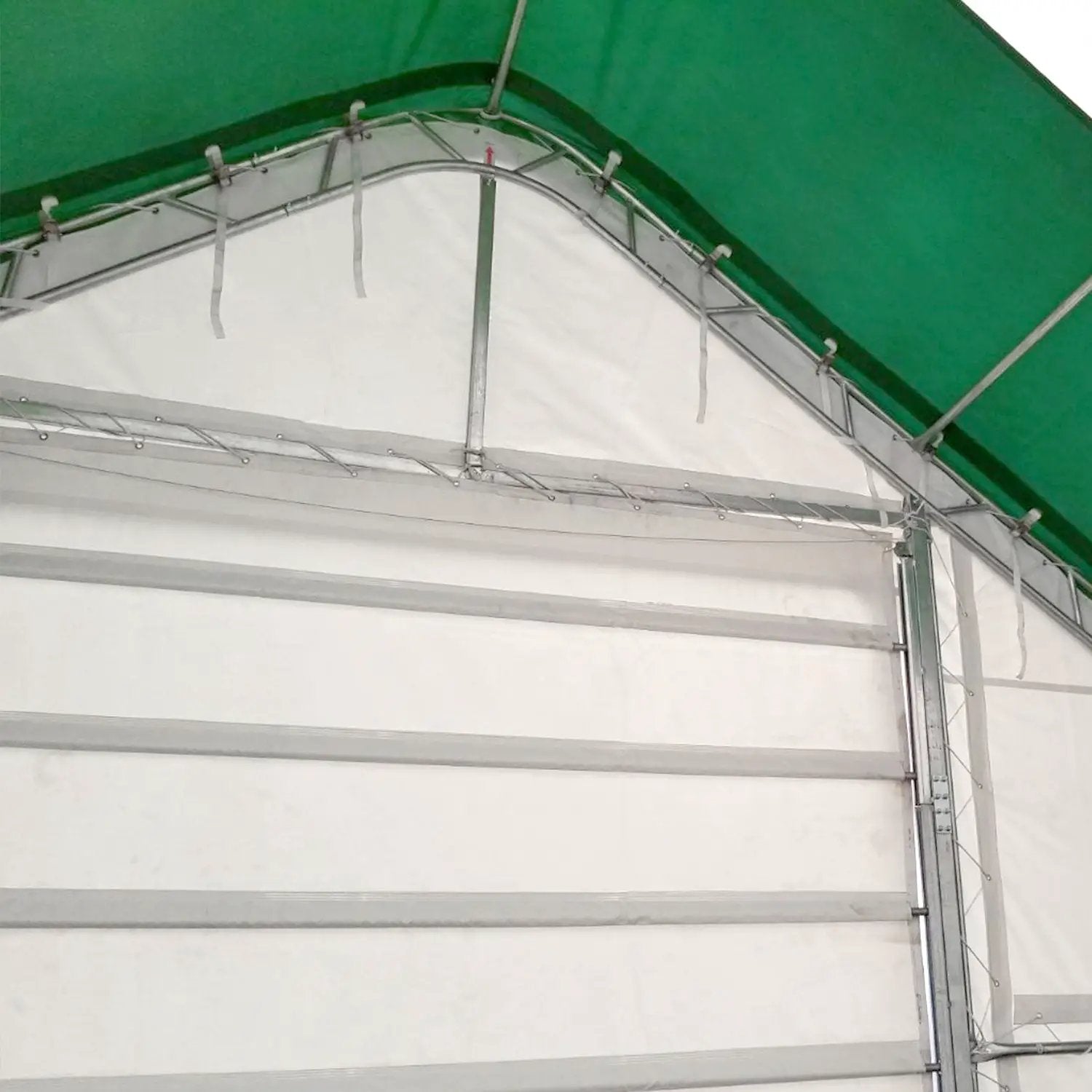

Tension System	Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons	4 Days
Snow Load	48 lbs/ft²
Wind Load	60 miles/h
Tarp lifespan	7-10 years, depending on the type of fabric and environmental conditions.
Frame lifespan	15+ Years
Warranty	- PE: 2 Years Warranty. - PVC: 8 Years Warranty.
Fabric (Optional)	Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric Please contact us to order.
Country of Origin	China

Installation Tips

1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

Features

No building permits required*.
Easy to set up and install.
Portable for moving to new locations.
Two large doors allow entry and exit more easily.
Fabric cover blocks UV radiation and provides natural light.
A galvanized steel frame helps the shelter to resist terrible weather conditions.
Suitable for several purposes.

Package Size

LxWxH (inch): box A: 124x44x46; box B: 124x44x46; box C: 98x44x35
Weight (lb): 7533
A forklift or equivalent is required for unloading

Double-Truss-Storage-Shelter-W40'xL64'xH23'-shipping-package

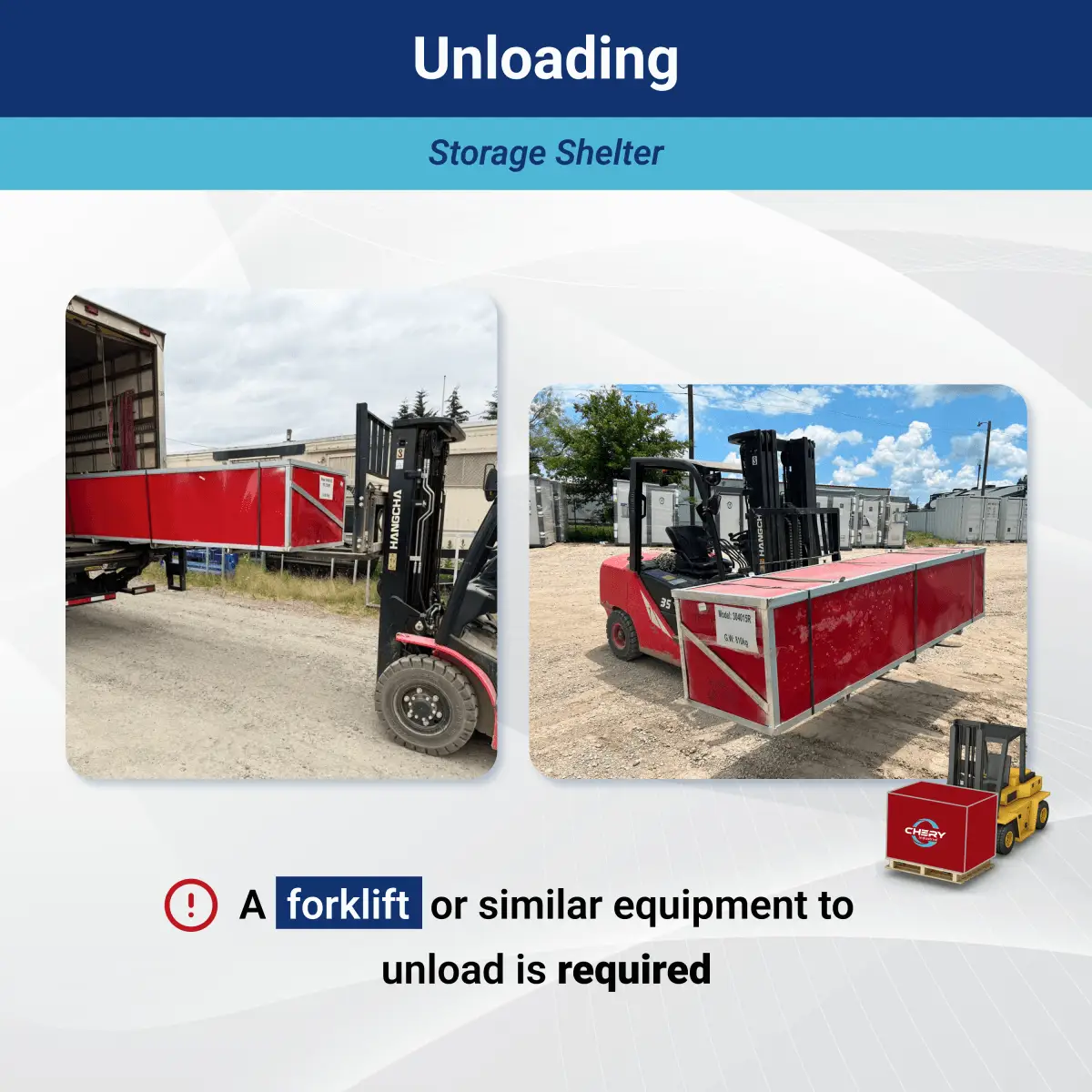

Delivery and Unloading

The product will be either loaded onto a box or flatbed truck, depending on its size.
A forklift or equivalent is required for unloading.

Chery Industrial Storage Shelter delivery

Chery Industrial Storage Shelter unloading

s406423,40x64, 40x64x23, Double Truss Storage Shelter, fallout shelter storage room, Gold Mountain Storage shelter, Gold Mountain dome storage shelter, outdoor storage shelter, Storage Shelter
