DIY Pergola Bracket Kit for an Attached Pergola With Roof Rafters - Any Size Up to 24' x 24'

Build a Custom Attached Pergola Up to 24' x 24'

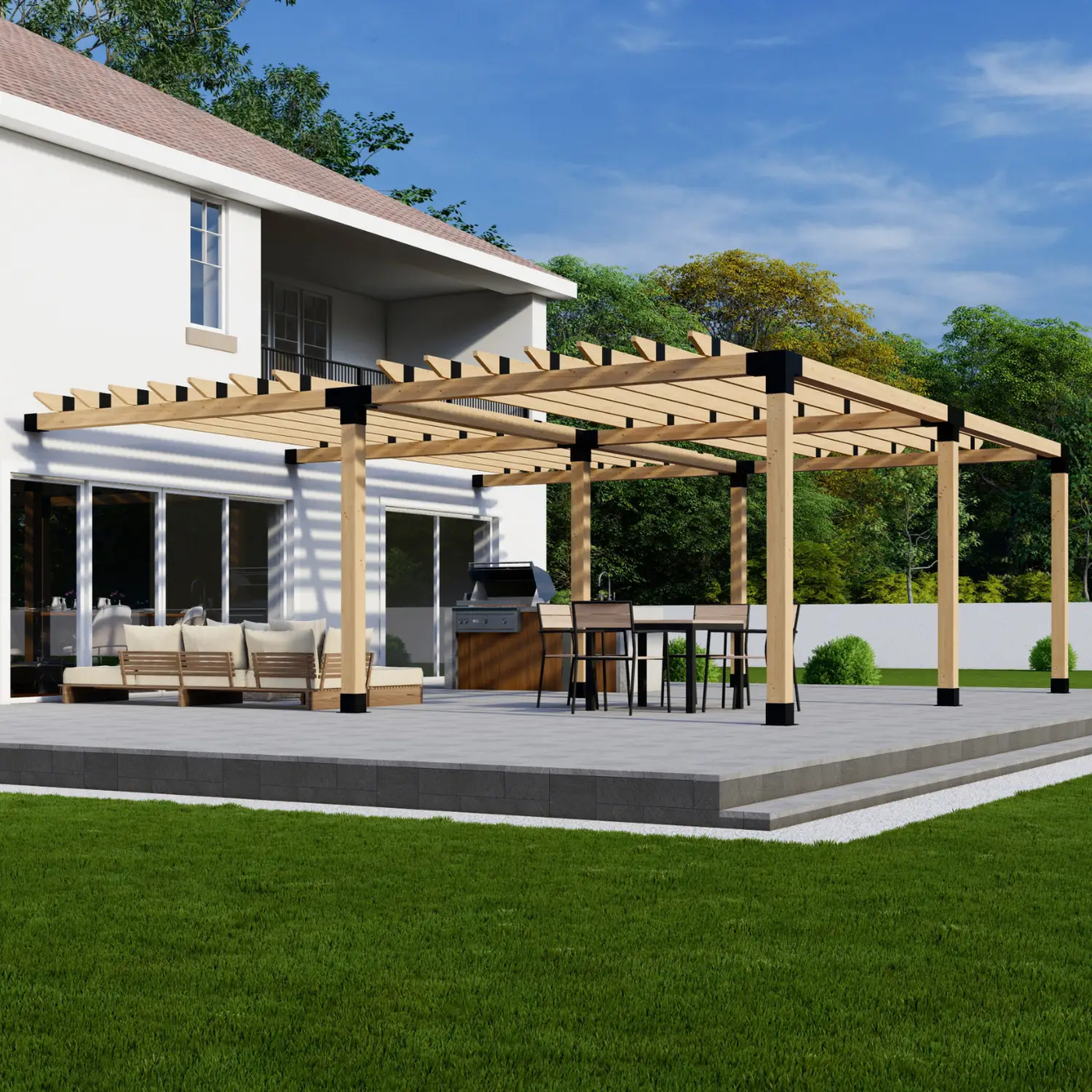

Transform your backyard into a functional outdoor living space with the Zen DIY Attached Pergola Bracket Kit. Designed to span any dimension up to 24 feet by 24 feet, this 4-block system securely attaches to your home's existing wall using three dedicated wall mounts, creating a stunning 6-post shelter over your concrete patio or deck. The kit's sleek, dark-finished brackets contrast sharply with standard light lumber, delivering a clean, modern architectural aesthetic ideal for traditional rafter roofing with optional overhangs.

Premium Materials and Flexible Sizing

Engineered to fit standard lumber dimensions, the kit offers two gauge options: 14-gauge steel for 4x4 posts and 2x4 rafters, or heavy-duty 12-gauge premium steel for 6x6 posts and 2x6 rafters. Every piece is laser-cut and laser-welded for maximum structural integrity, featuring a premium weather coating to withstand extreme outdoor conditions. Pre-drilled holes ensure rapid, accurate alignment during assembly.

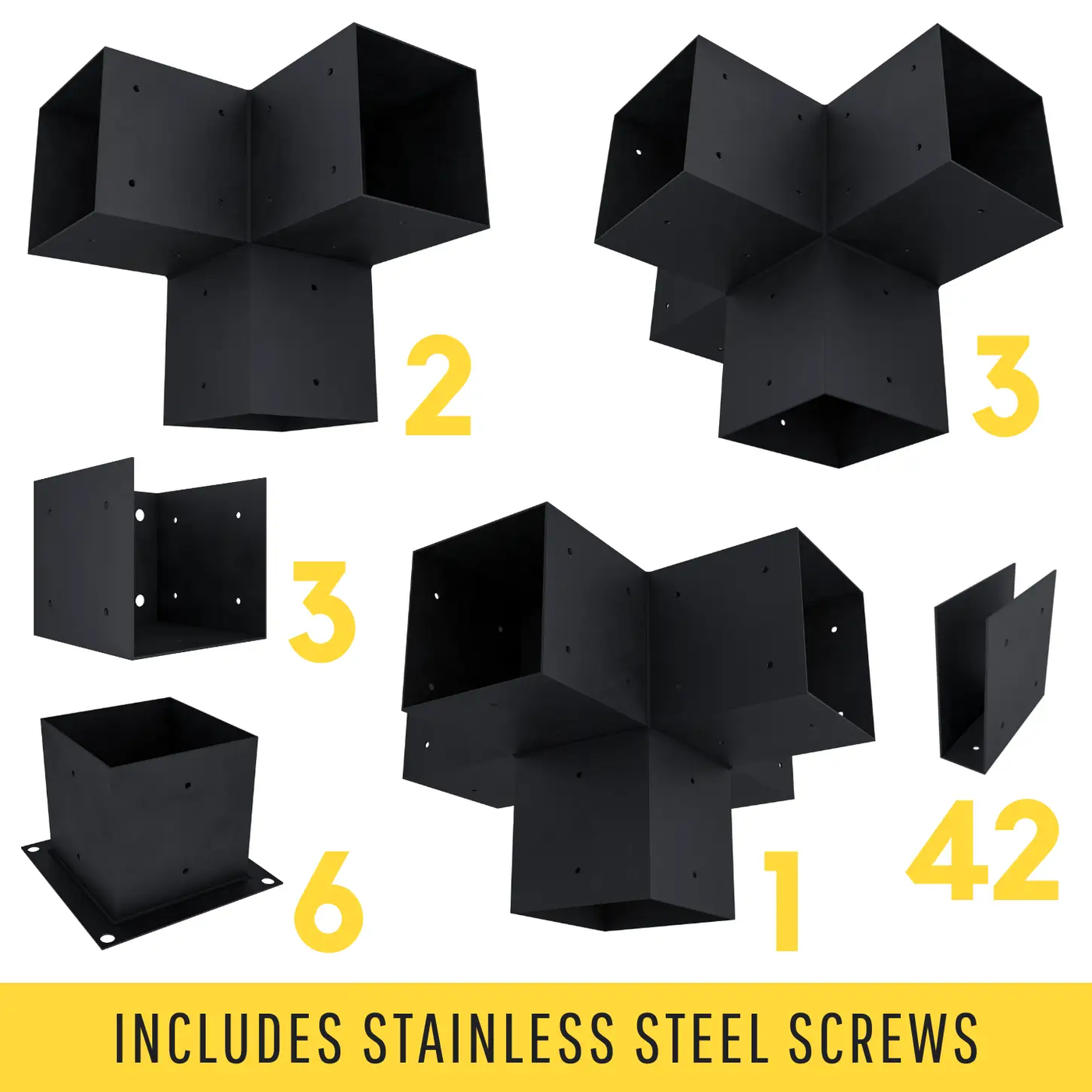

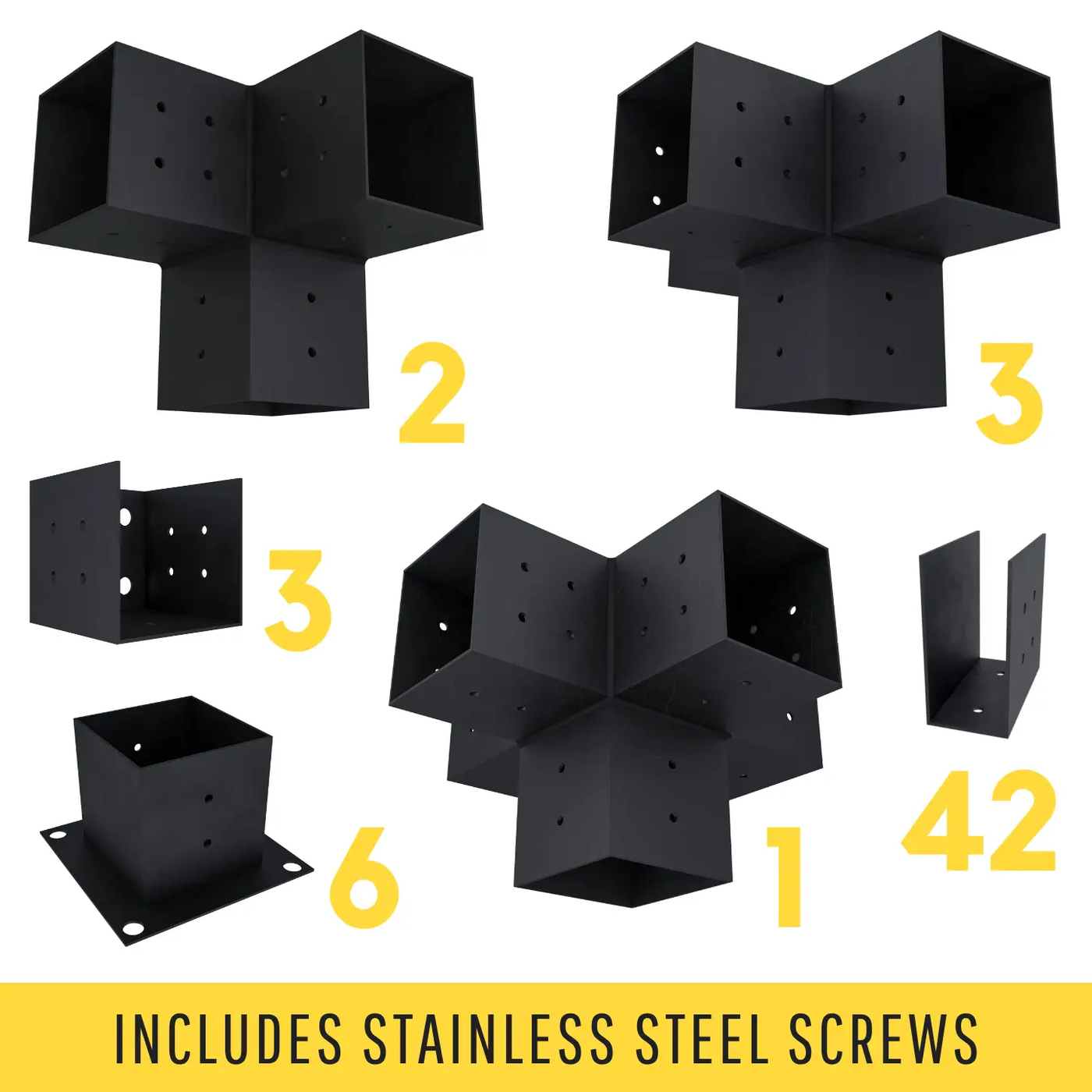

Kit Components

• 3 Wall Mount Brackets: Securely anchor the structure to your home's exterior framing.
• 6 Post Base Brackets: Support the 6 posts (lumber and concrete footings must be purchased locally).
• Overhead Structure: Includes 2x corner 3-arm, 3x middle 4-arm, and 1x central 5-arm brackets for stable overhead coverage.
• 42 Roof Rafter Brackets: Fasten traditional rafters atop the main roof beams.
• Fasteners: Includes stainless steel #12 wood screws for all wood-to-wood connections.

Important: This kit provides only the metal hardware. You must supply your own lumber, concrete footings for the post bases, and appropriate wall anchors for the house attachment. Shipped directly from Boise, Idaho, with a comprehensive 5-year warranty on all brackets.
