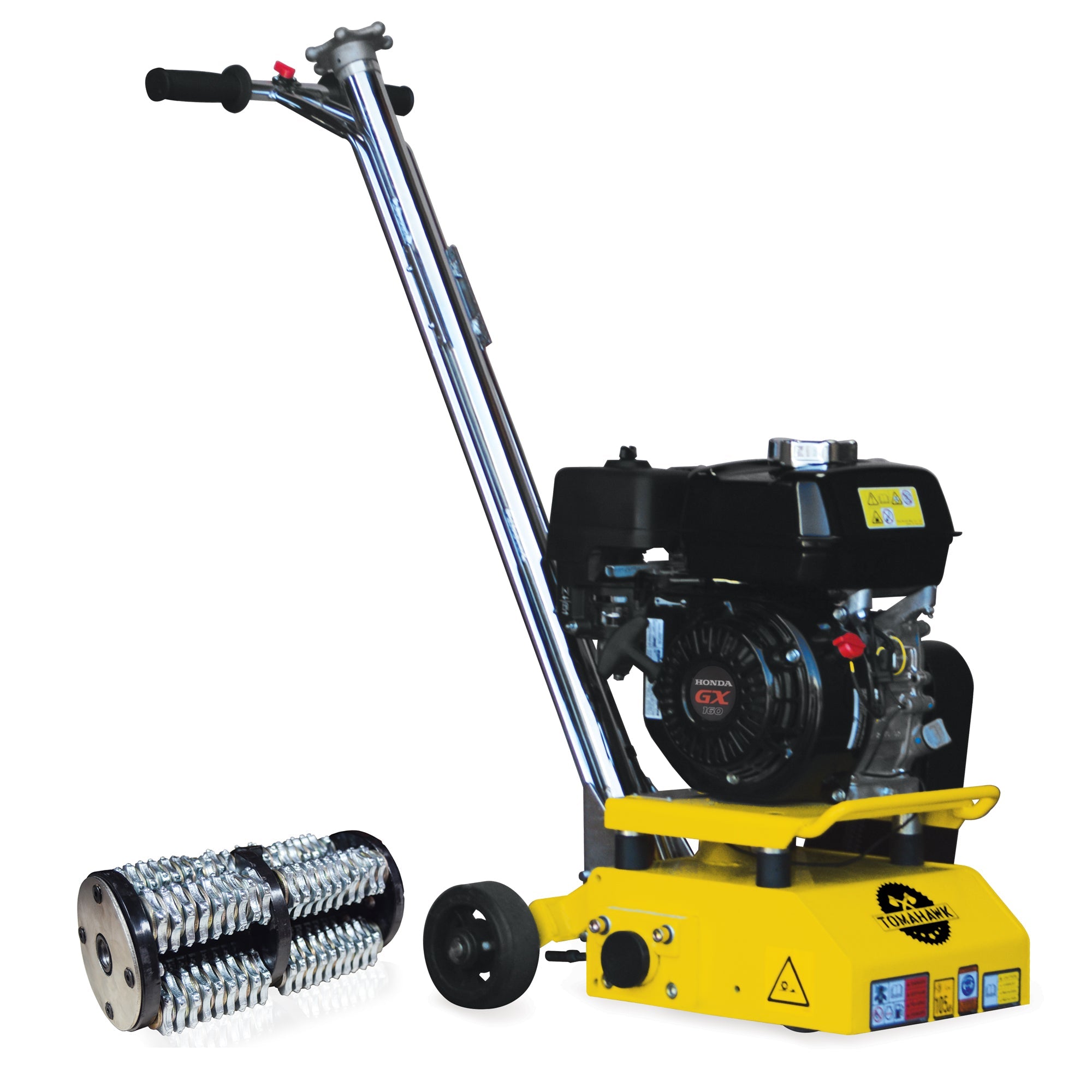

8” Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine & Drum

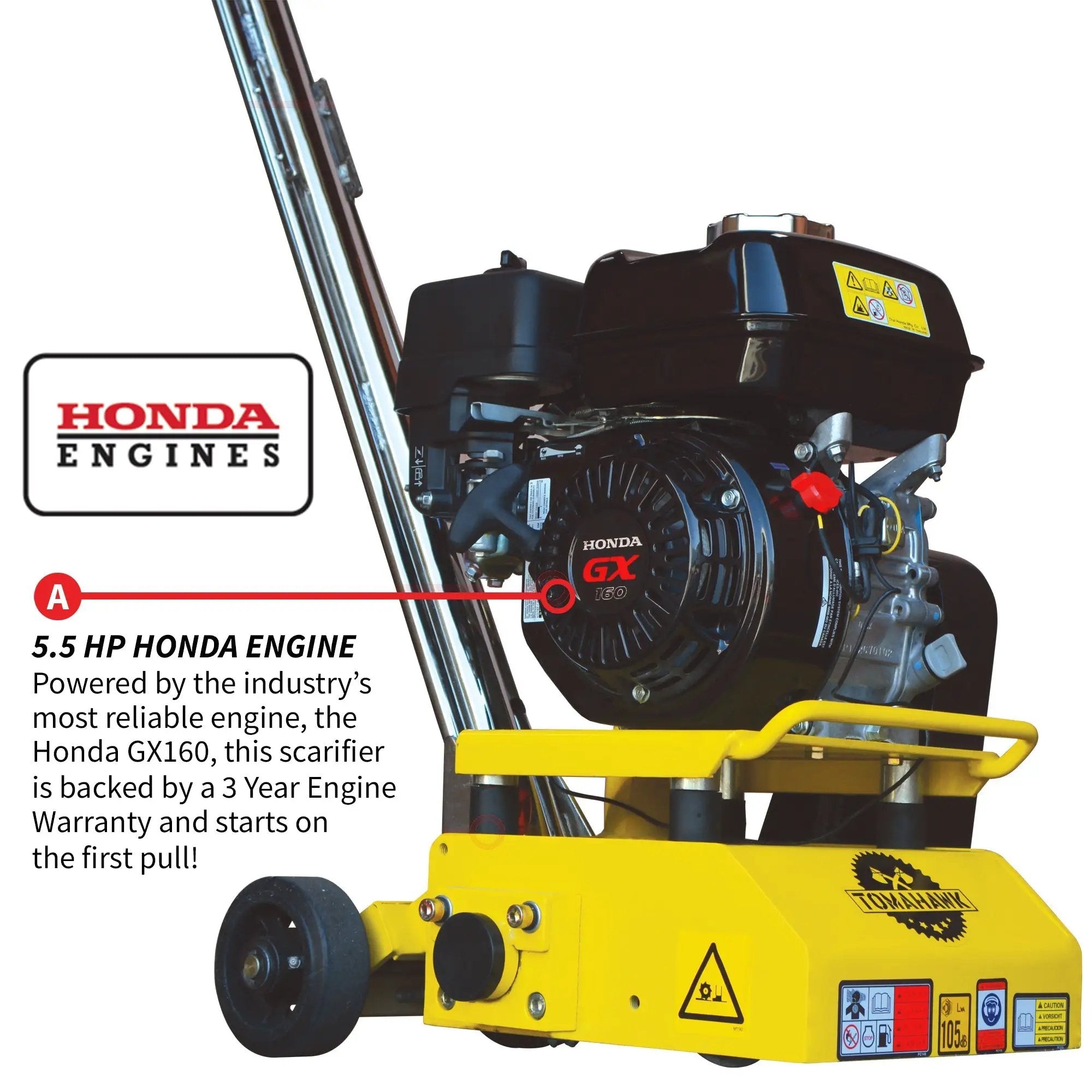

5.5HP HONDA ENGINE

Powered by an incredibly reliable air-cooled 163cc / 5.5 HP Honda GX160 Engine.

350 - 500 FT2/HOUR

Leveling at 1/8" Depth Per Pass, Tomahawk Scarifiers can cover 350 - 500 square feet per hour, to maximize operator efficiency.

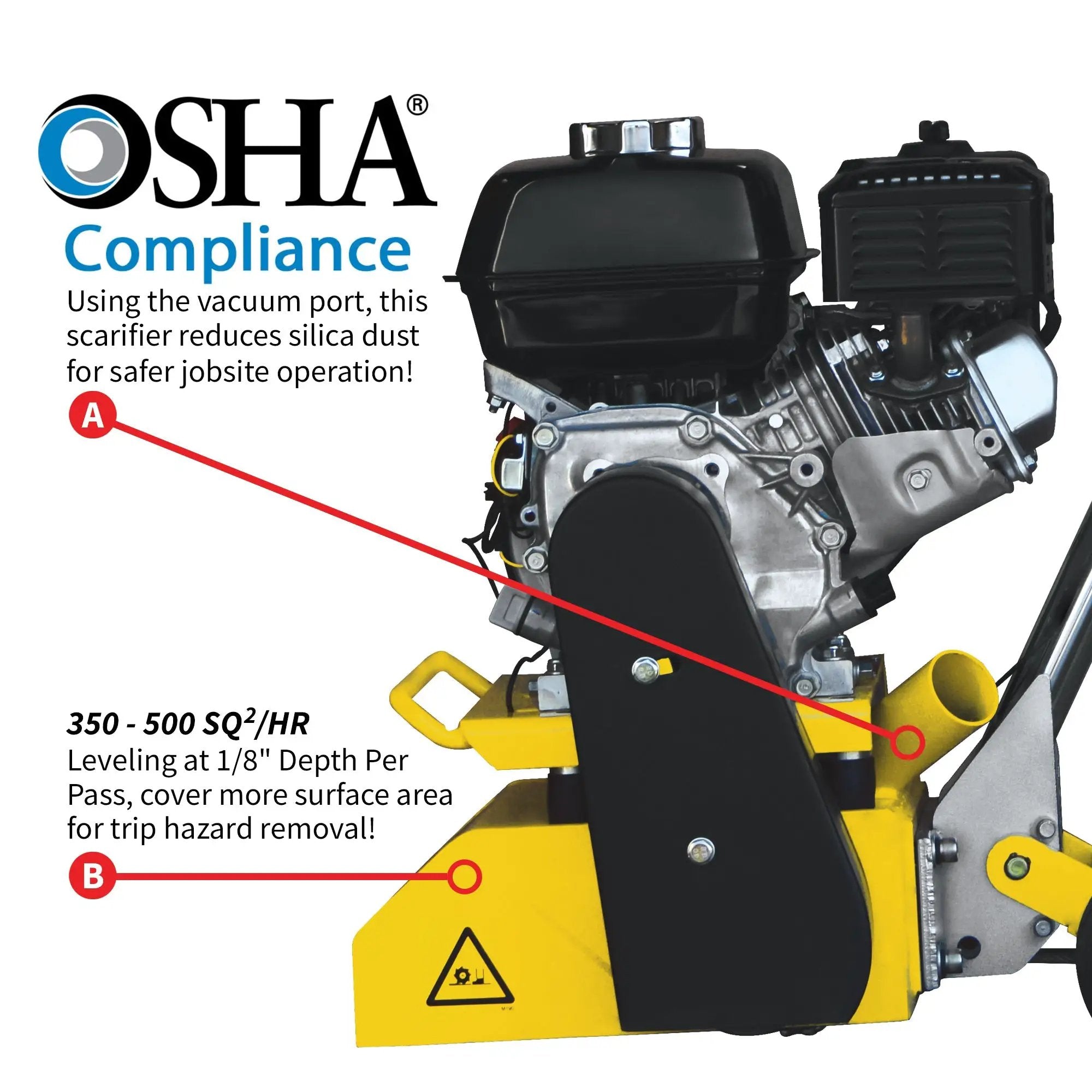

OSHA COMPLIANT

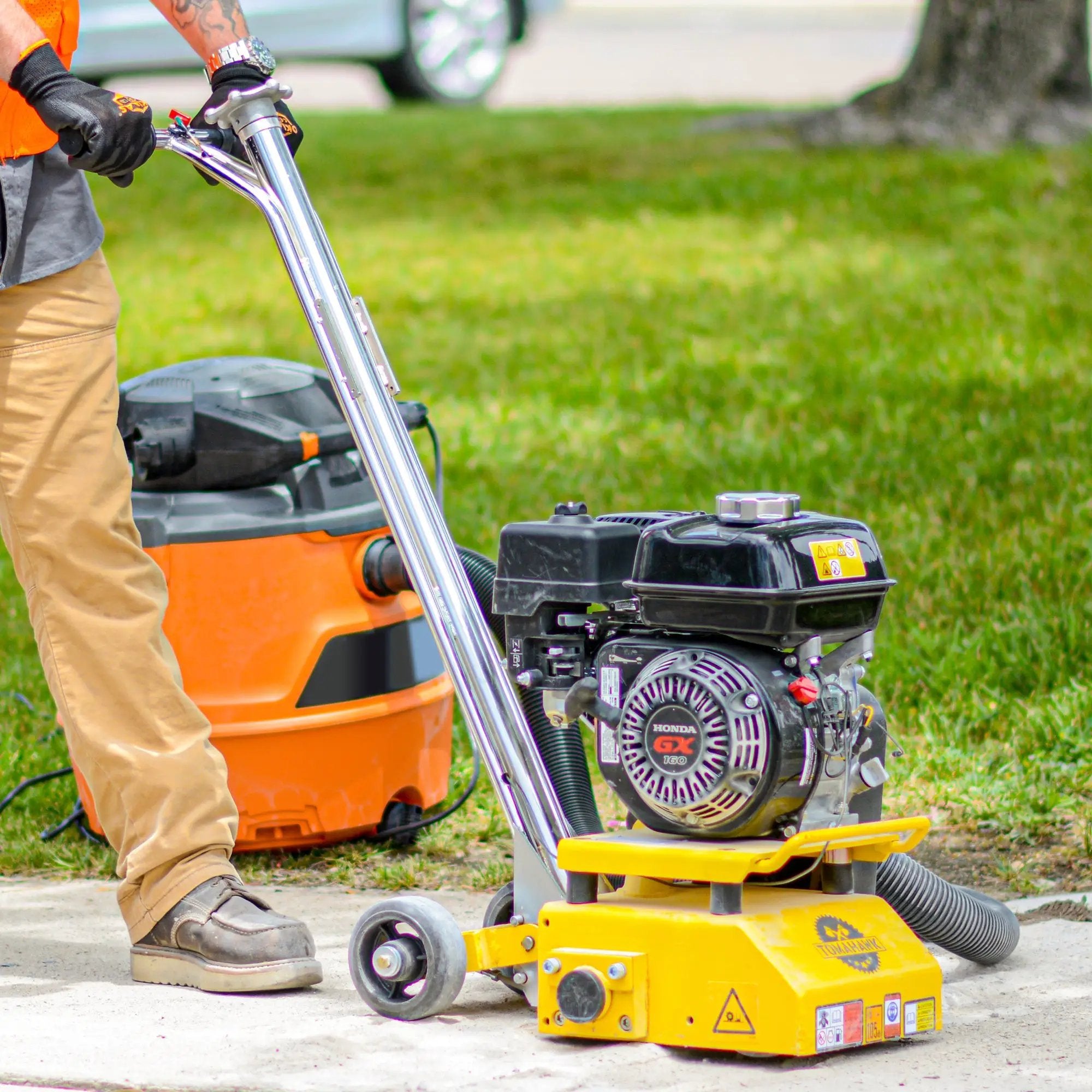

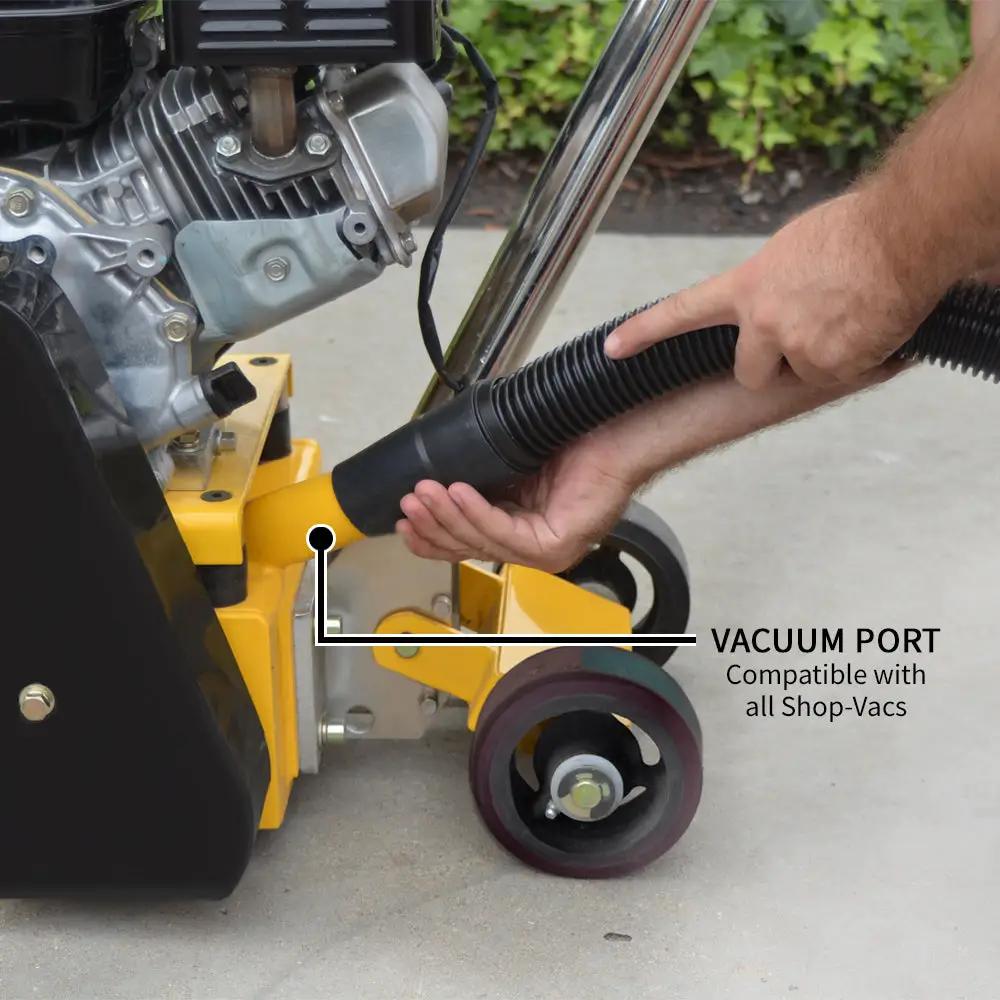

With a vacuum port designed to fit most bags and shop vacs, this scarifier reduces dust for safer operation.

REMOVE SURFACE MARKINGS

Perfect for traffic line and marking removal, floor cleaning, and surface preparation.

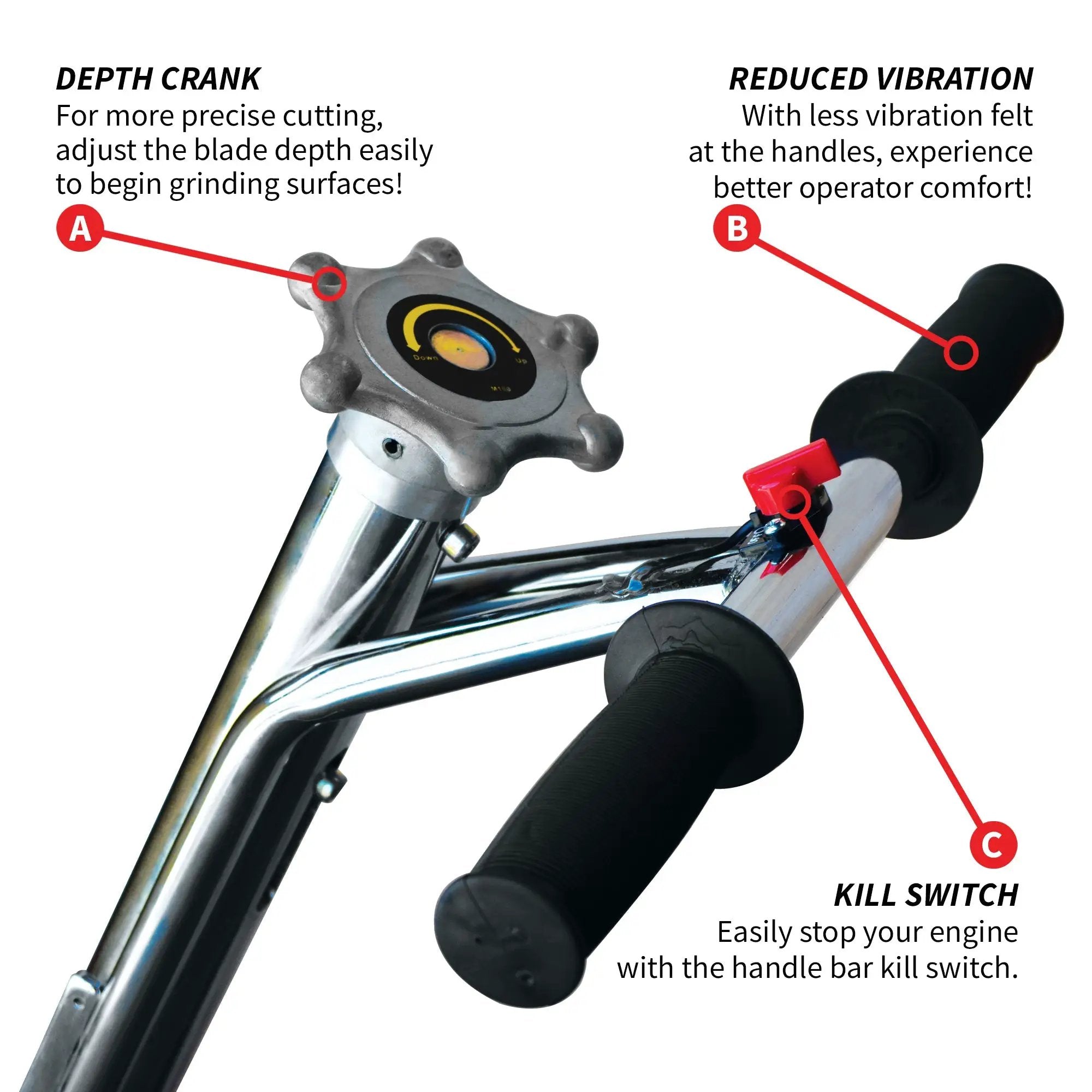

SIMPLE DEPTH CRANK

For more precise cutting, adjust the blade depth easily using the scarifier's blade depth crank!

TRUSTED NATIONWIDE

With long lasting materials, parts, & more – see why contractors large and small are choosing Tomahawk for their construction projects!

SAVE MONEY

Spray your own backyard and save hundreds of dollars you would pay to pest services.

Description

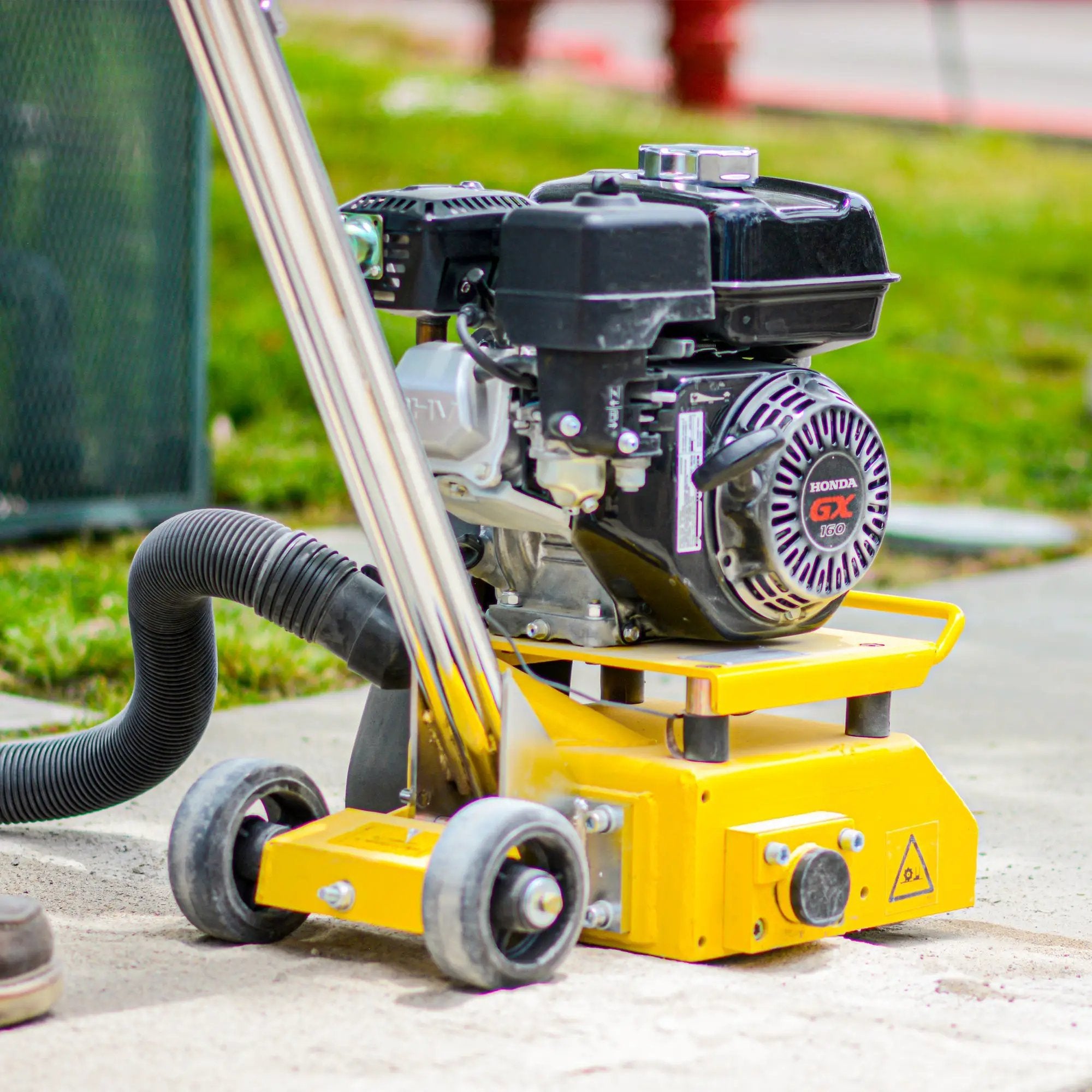

The Tomahawk TSCAR-8H Gas Scarifier is perfect for sidewalk trip hazard repair, floor cleaning and preparation, as well as, concrete, coating, traffic line, and marking removal. Powered by an incredible 5.5 HP Honda engine, easily scarify, level, and smooth approximately 350-500 sq. ft. per hour of concrete surface at a depth per pass of 1/8 in.

Features

• Air-cooled 163cc / 5.5 HP Honda GX160 Engine
• Scarifies 350 - 500 ft2/hour at 1/8" Depth Per Pass
• Remove traffic lines at 800 - 1,000 linear feet per hour

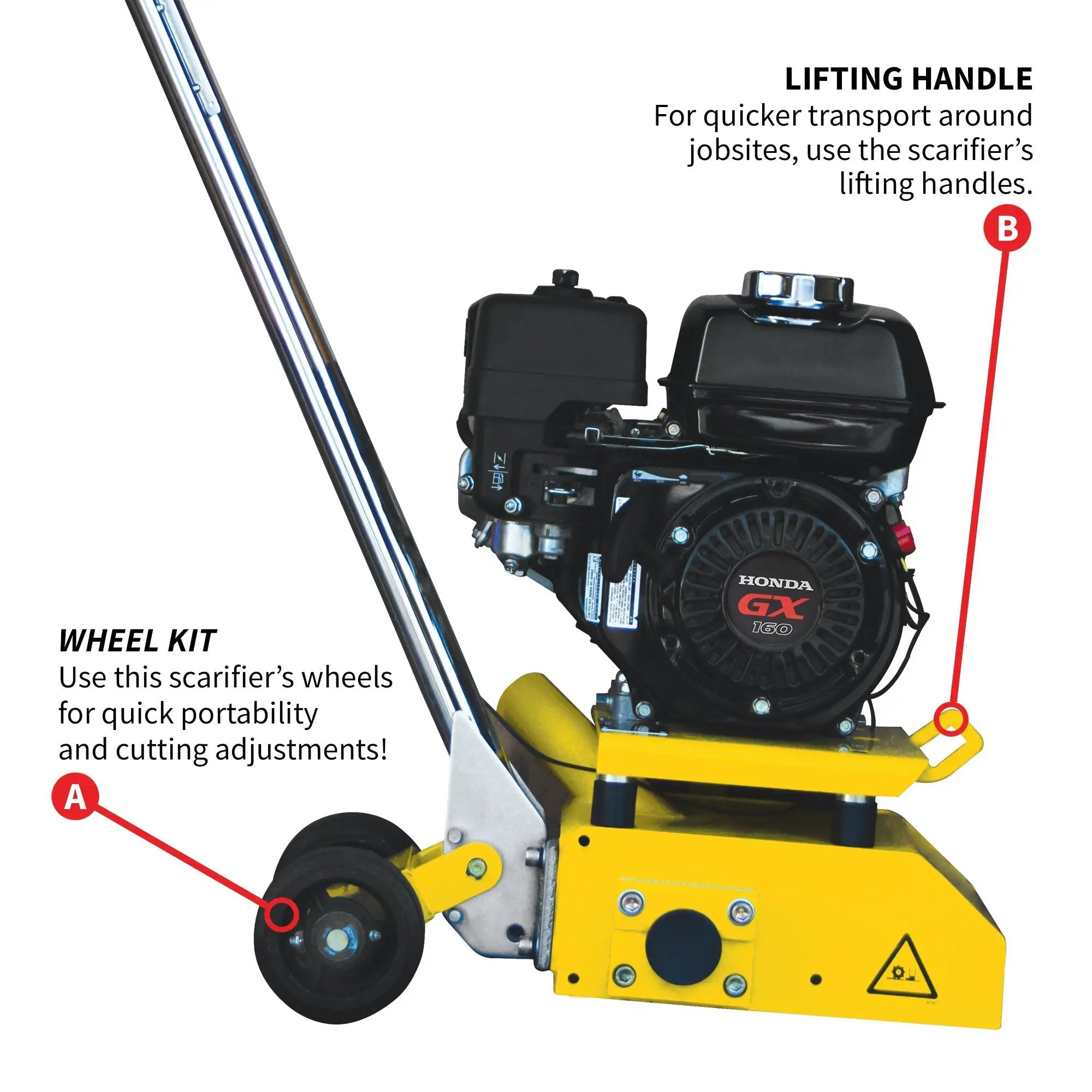

• Engine raised over drum to maximize surface contact
• Front-mounted lifting handle for simple loading/unloading
• Vacuum port equipped to fit most bags
• Reduced vibration for optimal user comfort

Specifications

• Engine: Honda GX160
• Power: 5.5 HP (4.0kW)
• Working Width: 8 in. (350 - 500 sq. ft. per hour)
• Depth: 1/8 in. per pass
• Weight: 135 lbs.
• Package Weight (No Drum): 195 lbs. (89kg)
• Package Dimensions (No Drum): 24 x 40 x 50 lnches (60.96 x 101.6 x 127 mm)
• Package Weight (With Drum): 195 lbs (89 kg)

• Package Dimensions (With Drum): 24 x 40 x 50 lnches (60.96 x 101.6 x 127 mm)
• Engine Warranty: 3 Year Warranty
• Product Warranty: 2 Year Warranty

Package Includes

Applications

• Surface and Marking Removal
• Surface Leveling
• Sidewalk and Trip Hazard Repair
• Floor Grinding
• Concrete Grinding
• Traffic Line Removal
• Asphalt and Concrete Line Removal
• Concrete Edging
• Surface Texturing and Grooving
• Cleaning and texturing concrete and asphalt
• Concrete reduction and scabbing
• Removal of roof chippings
• Grooving applications
• Cleaning concrete form-work and shuttering
• Non-slip finishes
• Removal of coatings and plaster

Choosing the Right Drum for Your Concrete Scarifier

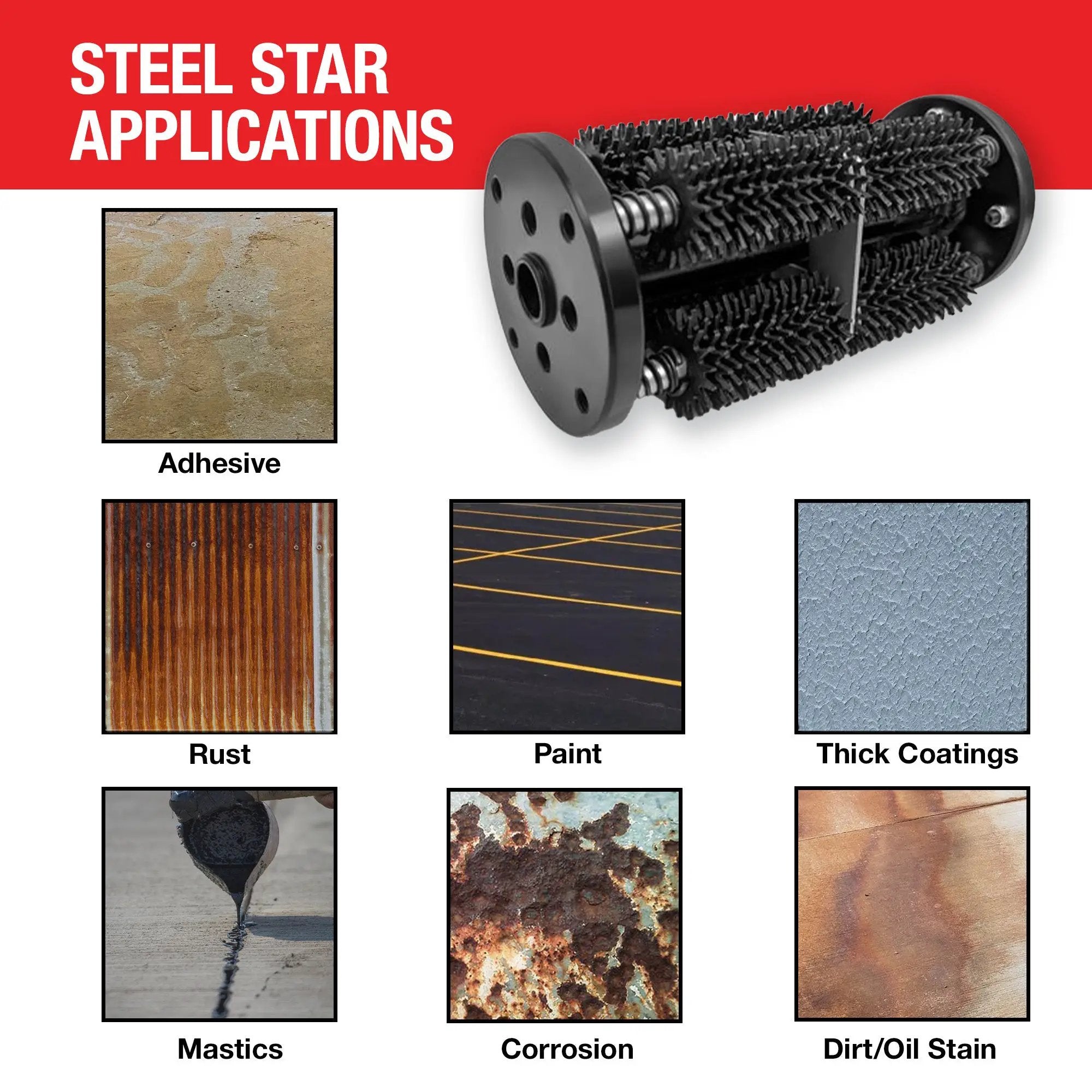

Steel Star Drums

• Applications: Adhesives, Paint, Mastics, Rust, Corrosion, Oil Stains
• Benefits: Versatile, easy installation.

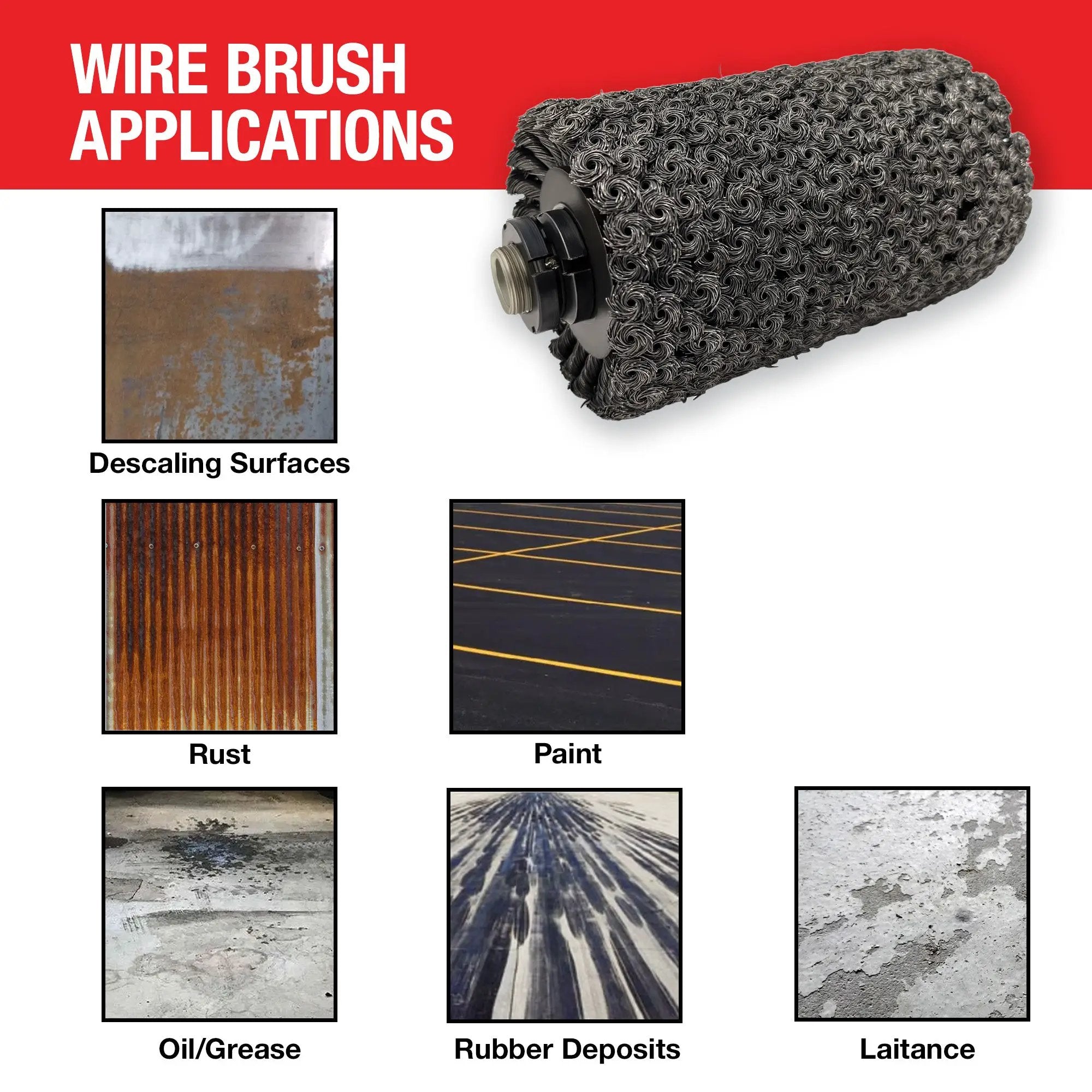

Steel Wire Brush

• Applications: Rust, Paint, Oil, Grease, Rubber Deposits, Latance
• Benefits: Effective cleaning, smooth finish.

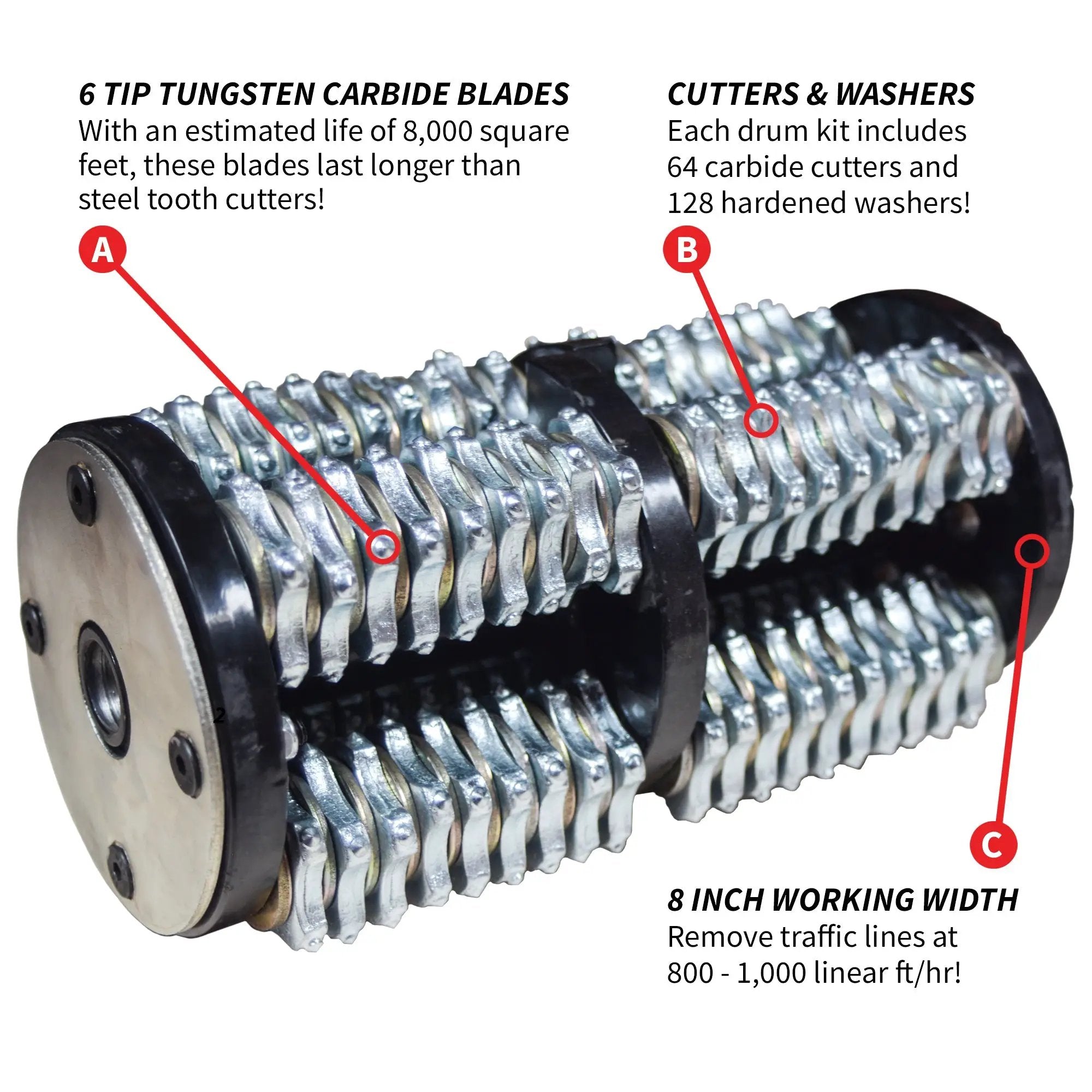

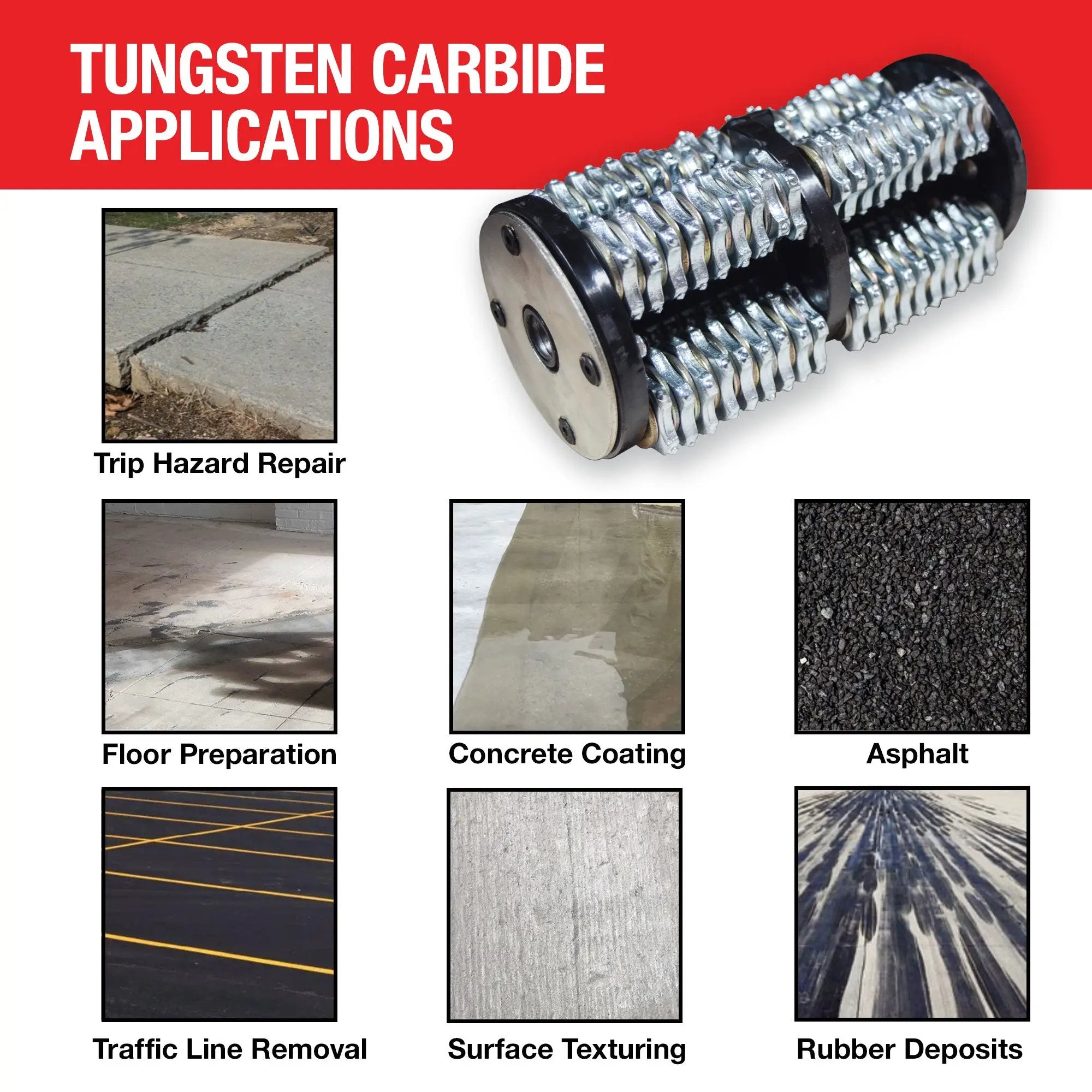

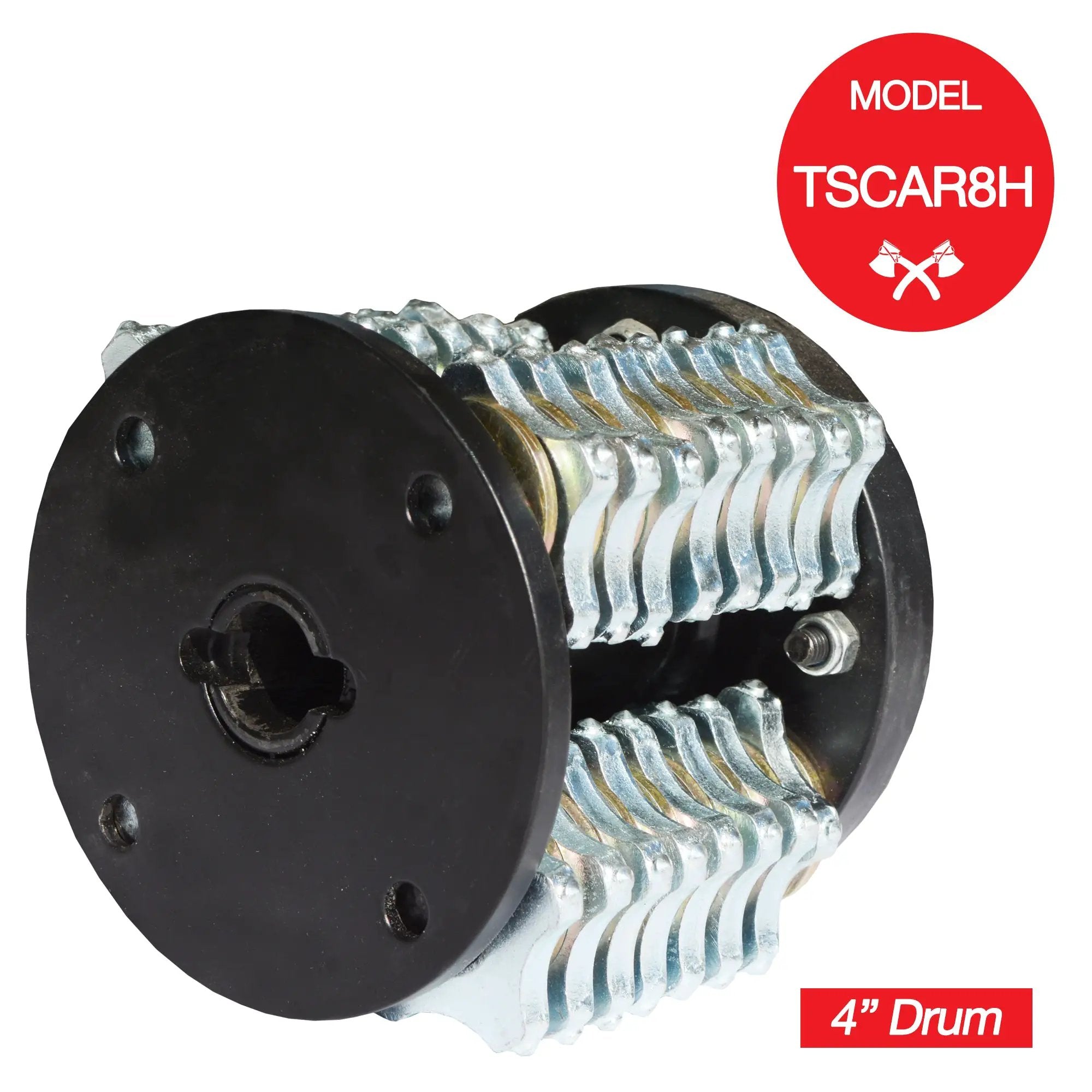

Tungsten Carbide Cage Blades

• Applications: Concrete milling, coating removal, non-skid surfaces
• Benefits: Versatile, suitable for various tasks.

How Does this Ship?

⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!

HOW DOES THIS SHIP?

CA Proposition 65 Warning

⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Info and Guides

Specification Sheet

TSCAR-8H Operations Manual
TSCAR-8H Parts Manual
Drum Assembly Parts Manual
